Front Wheelhouse Liner Replacement

Removal Procedure

1. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

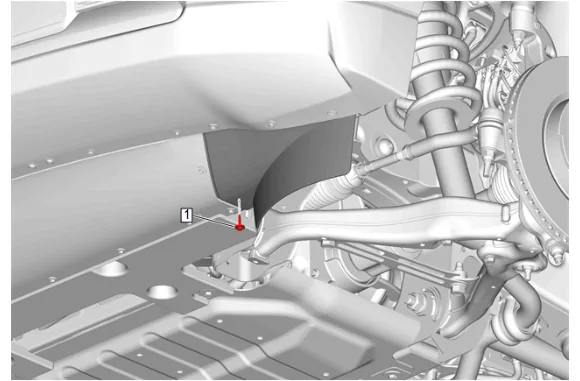

Front Wheelhouse Liner Replacement — figure 1

2. { If equipped } Front Tire Front Air Deflector Bolt (1) » Remove

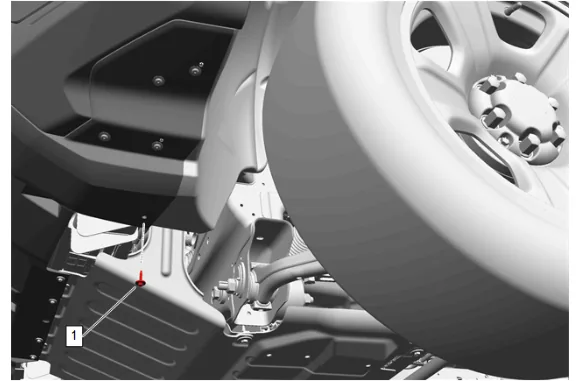

Front Wheelhouse Liner Replacement — figure 2

3. { If equipped } Front Bumper Fascia Bolt (1) » Remove

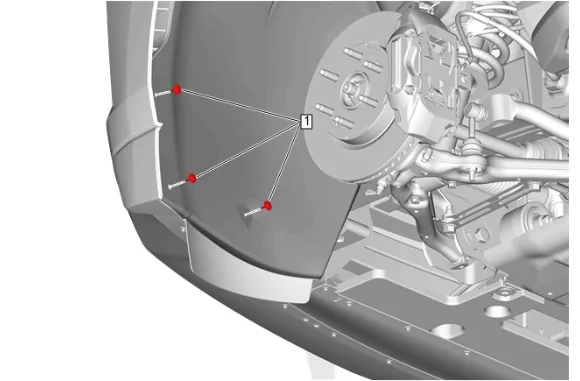

Front Wheelhouse Liner Replacement — figure 3

4. Front Wheelhouse Liner Bolt (1) » Remove [3x]

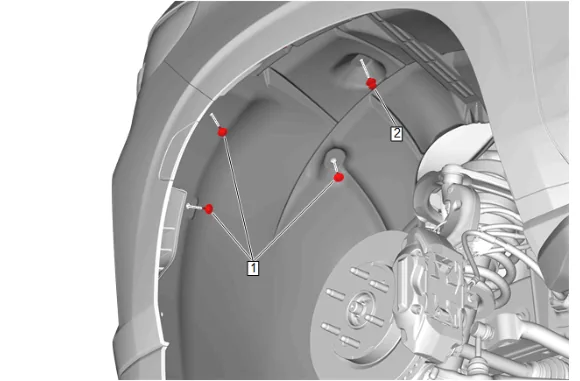

Front Wheelhouse Liner Replacement — figure 4

Note

Quantity of fasteners may vary based on option content.

5. Front Wheelhouse Liner Bolt (1) » Remove [3x]
6. Front Wheelhouse Liner Retainer (2) » Remove

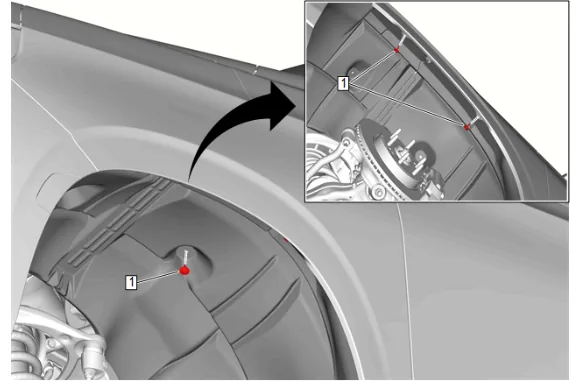

Front Wheelhouse Liner Replacement — figure 5

7. Front Wheelhouse Liner Bolt (1) » Remove [3x]

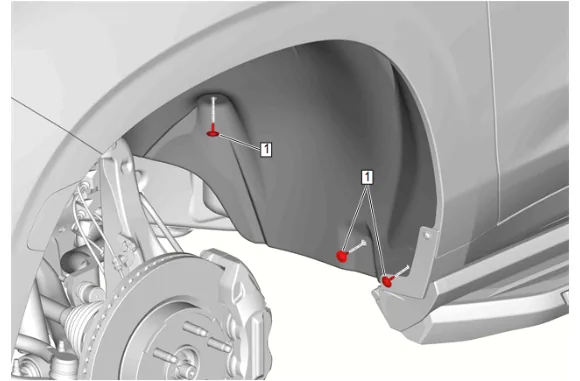

Front Wheelhouse Liner Replacement — figure 6

8. Front Wheelhouse Liner Bolt (1) » Remove [3x]

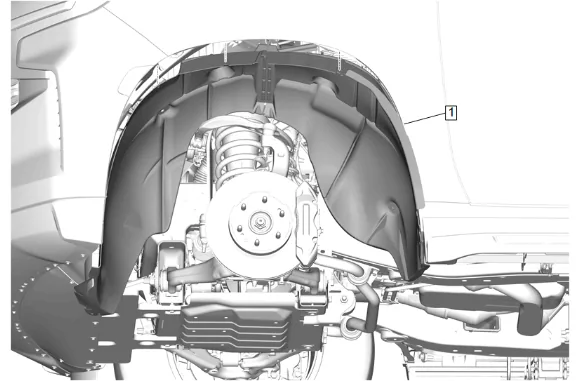

Front Wheelhouse Liner Replacement — figure 7

9. Front Wheelhouse Liner (1) » Remove Installation Procedure

10. Front Wheelhouse Liner (1) » Install

Caution

Refer to Fastener Caution.

2. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

3. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

4. Front Wheelhouse Liner Retainer (2) » Install

Note

Quantity of fasteners may vary based on option content.

5. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

6. Front Wheelhouse Liner Bolt (1) » Install and tighten [3x] — Fastener Specifications

7. { If equipped } Front Bumper Fascia Bolt (1) » Install and tighten — Fastener Specifications

8. { If equipped } Front Tire Front Air Deflector Bolt (1) » Install and tighten — Fastener Specifications

9. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
