Fastener Specifications (1)
Fastener Specifications Table 1: Electric Belt Drive Rack and Pinion Steering Gear Table 2: Power Steering Assist Motor Table 3: Steering Gear Boot
Electric Belt Drive Rack and Pinion Steering Gear
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure | ||
|---|---|---|---|---|---|---|---|
| e nent d Metric (English) | |||||||
| 1 | Steering Gear Bolt - Upper [2x] | — | — | 100 Y (74 lb ft) | Electric Belt Drive Rack and Pinion Steering Gear Replacement | ||
| 2 | Steering Gear Bolt - Lower [2x] | — | — | First Pass: 175 Y (129 lb ft) Final Pass: 30 - 45 degrees | Electric Belt Drive Rack and Pinion Steering Gear Replacement | ||
| 3 | Steering Gear Nut [2x] | — | — | — | Electric Belt Drive Rack and Pinion Steering Gear Replacement |

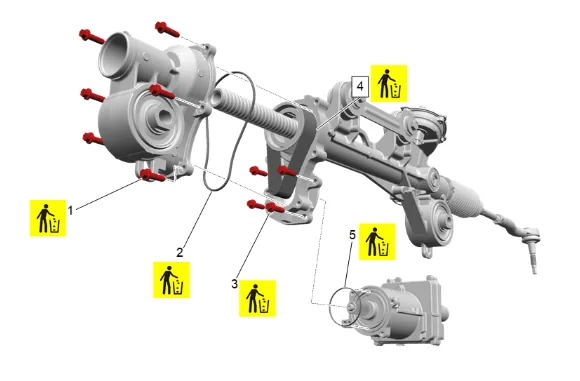

Power Steering Assist Motor
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Steering Gear Bolt [6x] | Yes | — | Steering Gear Bolt Sequence | Power Steering Assist Motor Replacement |
| 2 | Power Steering Assist Motor Seal @ Electric Belt Drive Rack and Pinion Steering Gear | Yes | — | — | Power Steering Assist Motor Replacement |
| 3 | Power Steering Assist Motor Bolt [4x] | Yes | — | 28 Y (21 lb ft) | Power Steering Assist Motor Replacement |
| 4 | Electric Belt Drive Rack and Pinion Steering Gear Belt | Yes | — | — | Power Steering Assist Motor Replacement |
| 5 | Power Steering Assist Motor Seal @ Power Steering Assist Motor | Yes | — | — | Power Steering Assist Motor Replacement |

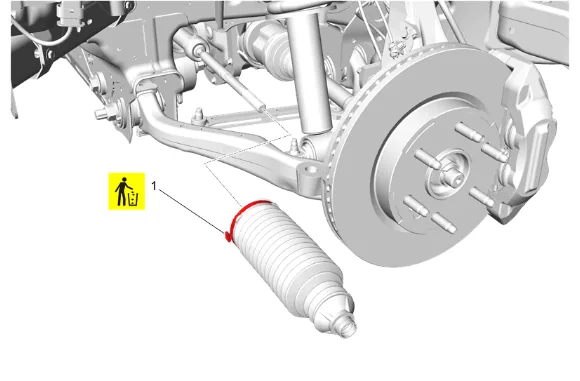

Steering Gear Boot
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
|---|---|---|---|---|---|
| e nent d Metric (English) | |||||
| 1 | Steering Gear Boot Inner Clamp | Yes | — | — | Steering Gear Boot Replacement |

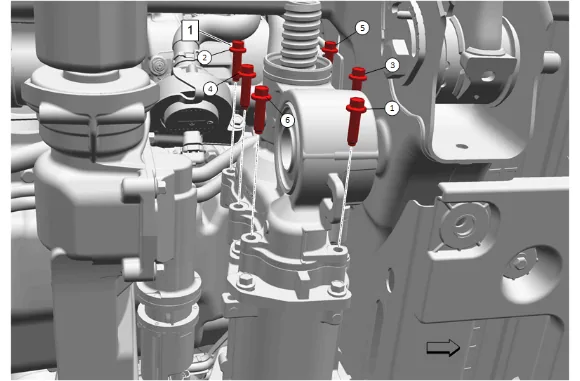

| Steering Gear Bolt Sequence | |||||
|---|---|---|---|---|---|
| Callou | Component Name [Component t Quantity] | Single Use Fastene | Thread Locking Adhesiv r/Compo Require | Specification | Procedure |
| e nent d Metric (English) | |||||
| 1 | Steering Gear Bolt [6x] | Yes | — | 28 Y (21 lb ft) | Power Steering Assist Motor Replacement |
