Tahoe / Yukon Service Manual

Turn Signal Switch Replacement

Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

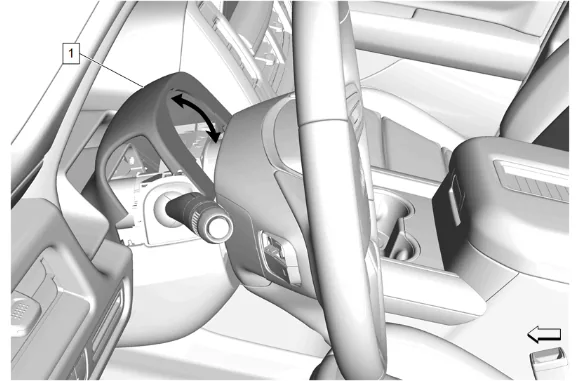

Turn Signal Switch Replacement — figure 1
Turn Signal Switch Replacement — figure 1
  1. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

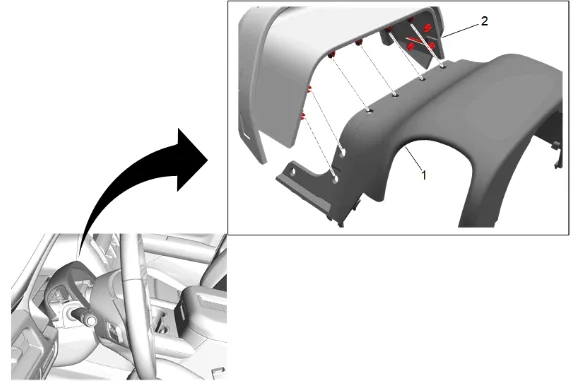

Turn Signal Switch Replacement — figure 2
Turn Signal Switch Replacement — figure 2
  1. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2).

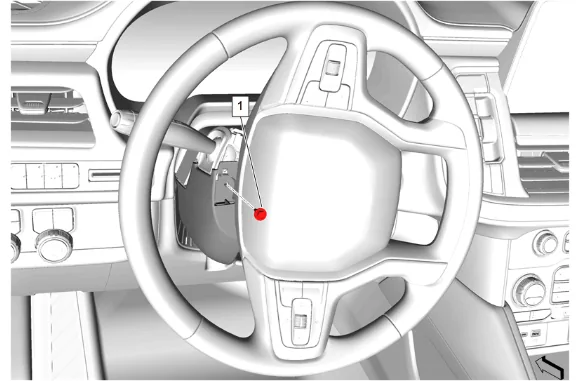

Turn Signal Switch Replacement — figure 3
Turn Signal Switch Replacement — figure 3
  1. Turn the steering wheel approximately 90 degrees to the left of the centered position.
  2. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove

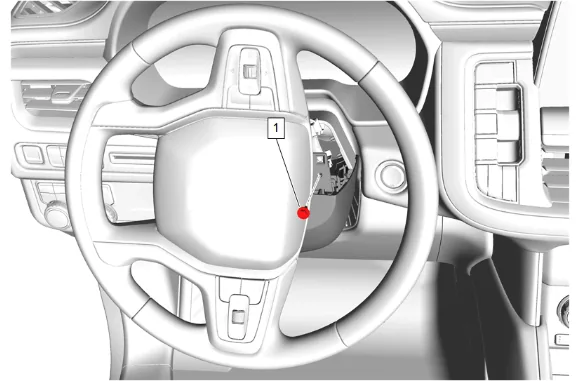

Turn Signal Switch Replacement — figure 4
Turn Signal Switch Replacement — figure 4
  1. Turn the steering wheel approximately 90 degrees to the right of the centered position.
  2. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
  3. Turn the steering wheel to the centered position.

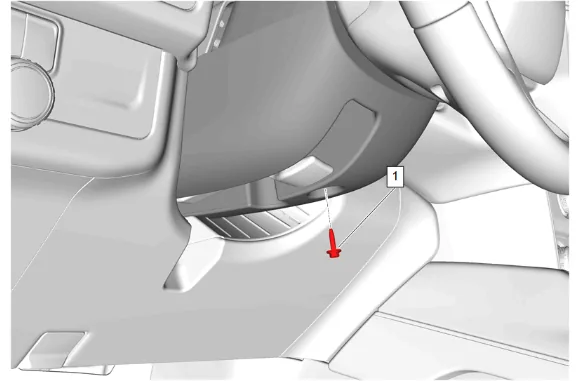

Turn Signal Switch Replacement — figure 5
Turn Signal Switch Replacement — figure 5
  1. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Remove
  2. { If equipped } Electrical Connector » Disconnect

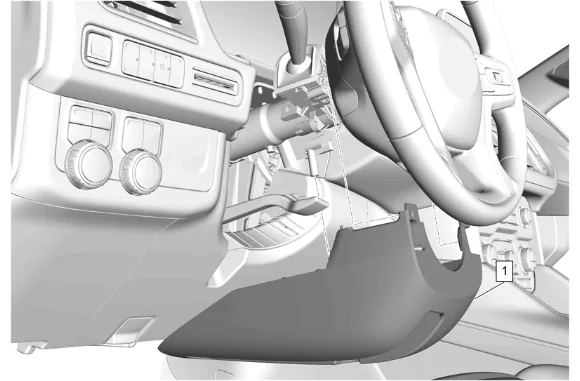

Turn Signal Switch Replacement — figure 6
Turn Signal Switch Replacement — figure 6
  1. Instrument Panel Steering Column Lower Trim Cover (1) » Remove

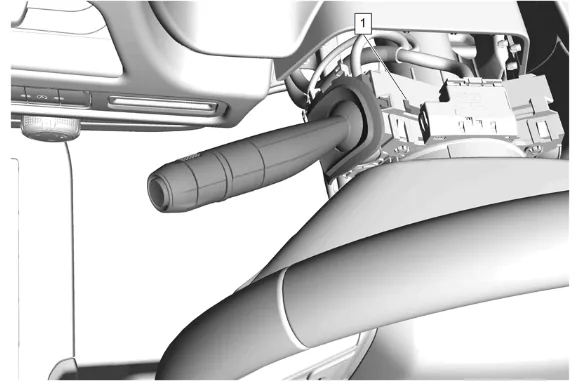

Turn Signal Switch Replacement — figure 7
Turn Signal Switch Replacement — figure 7
  1. Disengage the turn signal switch upper retaining tab (1).

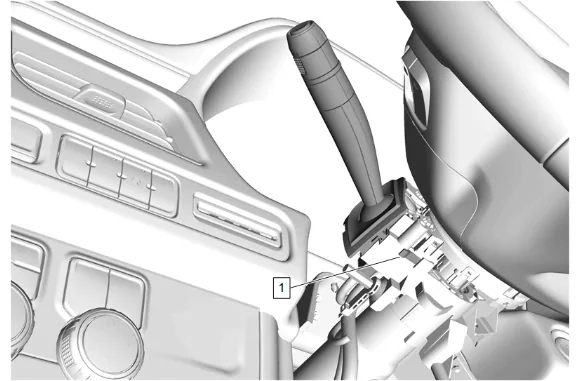

Turn Signal Switch Replacement — figure 8
Turn Signal Switch Replacement — figure 8
  1. Disengage the turn signal switch lower retaining tab (1).
  2. Disconnect the electrical connector.

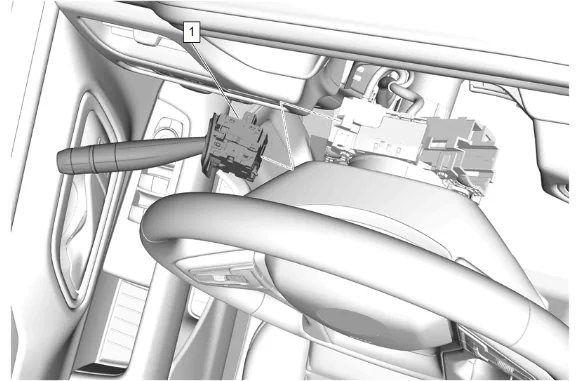

Turn Signal Switch Replacement — figure 9
Turn Signal Switch Replacement — figure 9

  1. Turn Signal Switch (1) » Remove Installation Procedure

  2. Turn Signal Switch (1) » Install

  3. Connect the electrical connector.

  4. Instrument Panel Steering Column Lower Trim Cover (1) » Install

  5. { If equipped } Electrical Connector » Connect

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

  7. Turn the steering wheel approximately 90 degrees to the right of the centered position.

  8. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

  9. Turn the steering wheel approximately 90 degrees to the left of the centered position.

  10. Instrument Panel Steering Column Lower Trim Cover Bolt (1) » Install and tighten — Fastener Specifications

  11. Turn the steering wheel to the centered position.

  12. Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

  13. Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
