Tahoe / Yukon Service Manual

2-3-4-5-7-9-10 Clutch Assembly (1)

2-3-4-5-7-9-10 Clutch Assembly

2-3-4-5-7-9-10 Clutch Assembly (1) — figure 1
2-3-4-5-7-9-10 Clutch Assembly (1) — figure 1

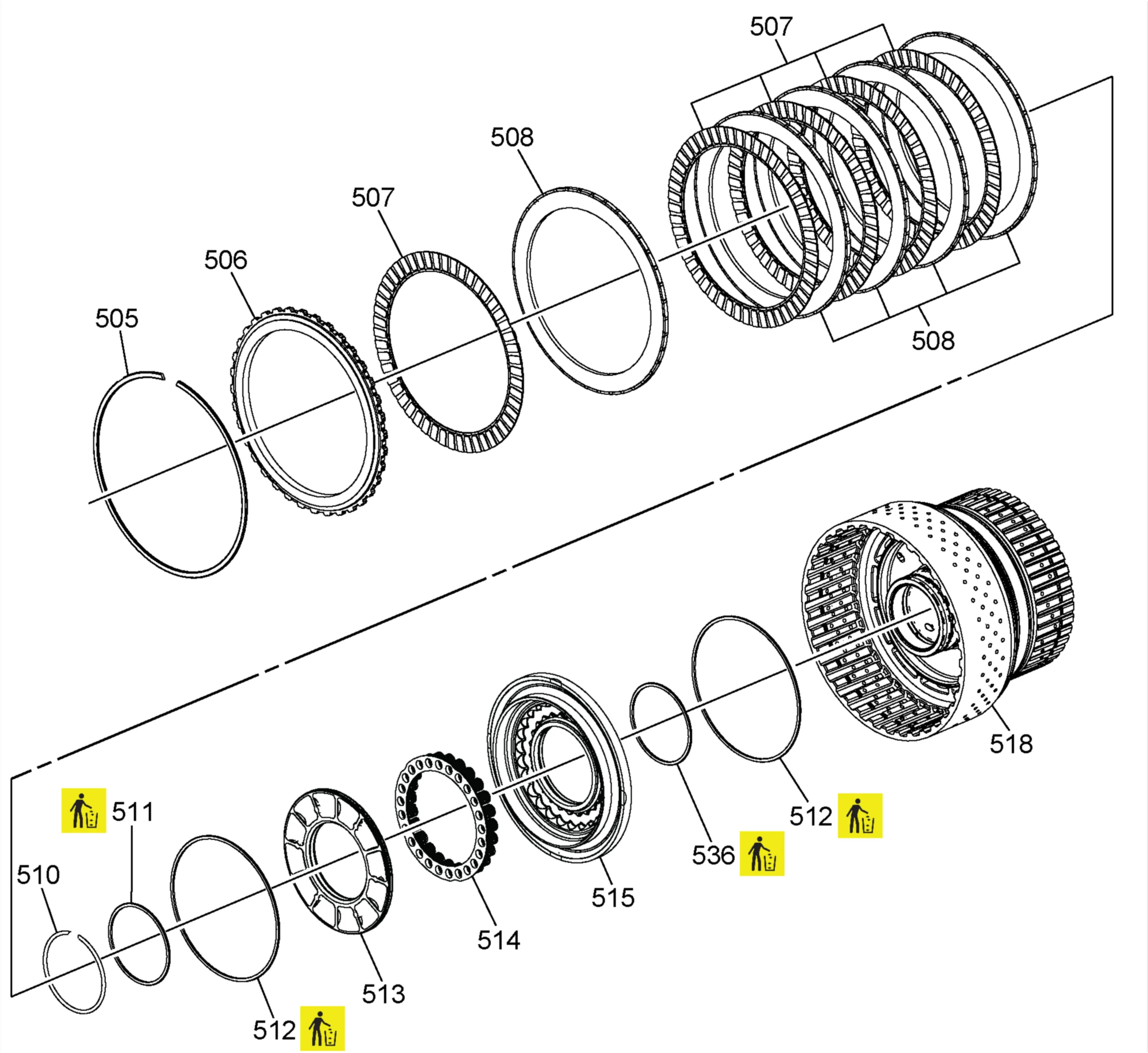

(505) 2-3-4-5-7-9-10 Clutch Backing Plate Retaining Ring — Selective (506) 2-3-4-5-7-9-10 Clutch Backing Plate (507) 2-3-4-5-7-9-10 Fiber Clutch Plate (508) 2-3-4-5-7-9-10 Steel Clutch Plate (510) 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring (511) 2-3-4-5-7-9-10 Clutch Piston Dam Seal - Inner (512) 2-3-4-5-7-9-10 Clutch Piston Seal - Outer (513) 2-3-4-5-7-9-10 Clutch Piston Dam (514) 2-3-4-5-7-9-10 Clutch Piston Return Spring (515) 2-3-4-5-7-9-10 Clutch Piston (536) 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal - Inner (518) Triple Clutch Housing
