Tahoe / Yukon Service Manual

Assist Step Rear Bracket Replacement (BVE)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

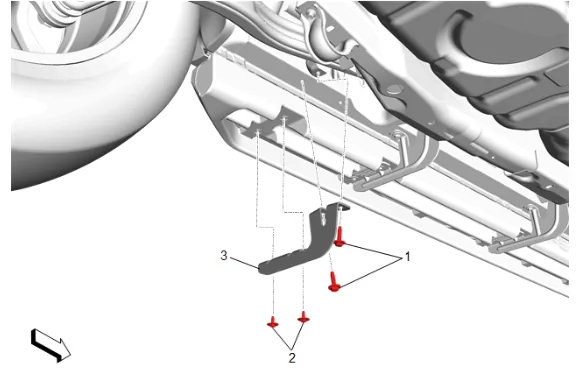

Assist Step Rear Bracket Replacement (BVE) — figure 1
Assist Step Rear Bracket Replacement (BVE) — figure 1

  1. Assist Step Bolt (1) » Remove [2x]

  2. Assist Step Bracket Bolt (2) » Remove [2x]

  3. Assist Step Rear Bracket (3) » Remove Installation Procedure

  4. Assist Step Rear Bracket (3) » Install

  1. Assist Step Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Assist Step Bolt (1) » Install and tighten [2x] — Fastener Specifications
  3. Lower the vehicle.
