Instrument Panel Center Air Outlet Duct Replacement - Right Side

Instrument Panel Center Air Outlet Duct Replacement - Right Side Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 1

2. Instrument Panel Lower Trim Panel Outer Filler (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 4

7. Instrument Panel Trim Pad Bolt (1) » Remove [2x]
8. Instrument Panel Trim Pad (2) » Remove
9. Disconnect the electrical connectors.

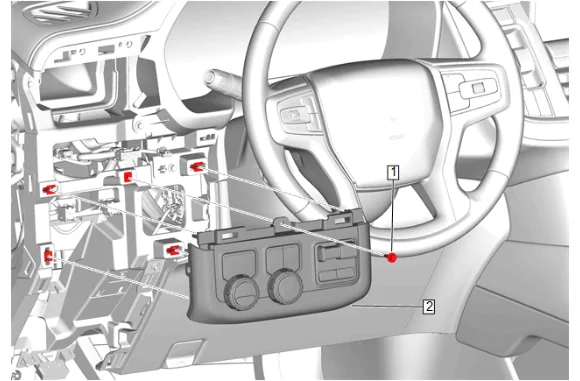

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 5

10. Instrument Panel Switch Trim Plate Bolt (1) » Remove
11. Disconnect the electrical connectors.
12. Instrument Panel Switch Trim Plate (2) » Remove

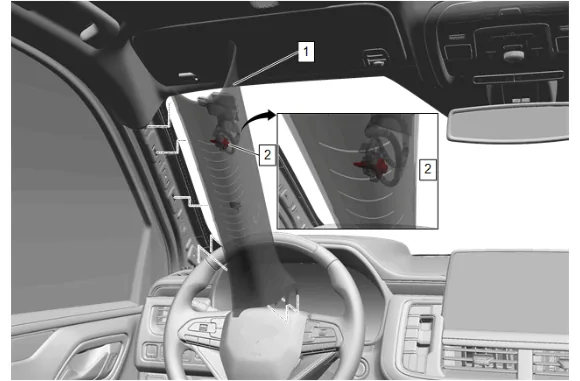

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 6

13. Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.
14. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
15. Windshield Garnish Molding Bolt (2) » Remove
16. Windshield Garnish Molding (1) » Remove

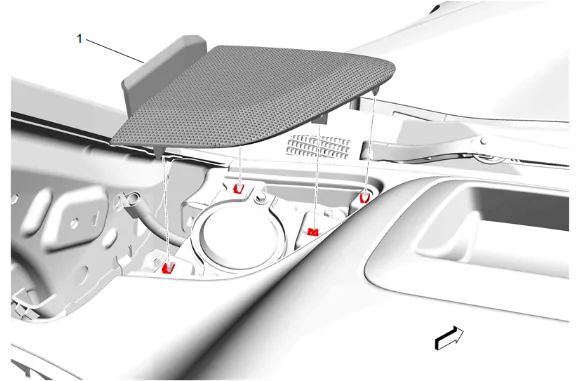

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 7

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Radio Front Speaker Grille (1) » Remove

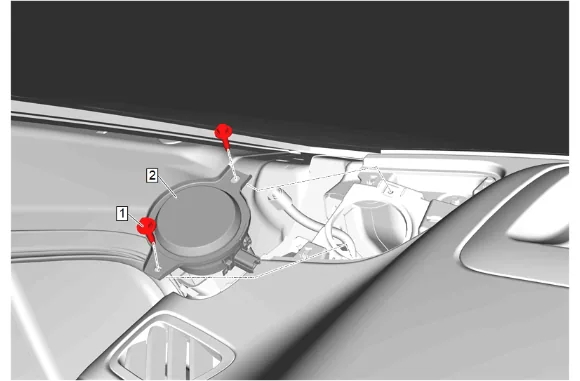

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 8

19. Radio Front Speaker Bolt (1) » Remove [2x]
20. Radio Front Speaker (2) » Remove
21. Disconnect the electrical connector.

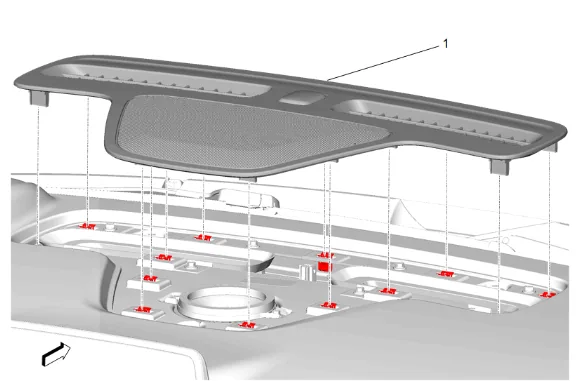

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 9

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Instrument Panel Extension (1) » Remove
24. Disconnect the electrical connector.

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 10

25. Radio Front Center Speaker Bolt (1) » Remove [2x]
26. Radio Front Center Speaker (2) » Remove
27. Disconnect the electrical connector.

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 11

28. Using a flat-bladed plastic trim tool, release the retaining clips.
29. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 12

30. Using a flat-bladed plastic trim tool, release the retaining clips.
31. Instrument Panel Trim Plate Applique (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 13

32. Using a flat-bladed plastic trim tool, release the retaining clips.
33. Instrument Panel Center Trim Plate Applique (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 14

34. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
35. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

36. Instrument Panel Trim Pad (2) » Remove
37. Disconnect the electrical connector.

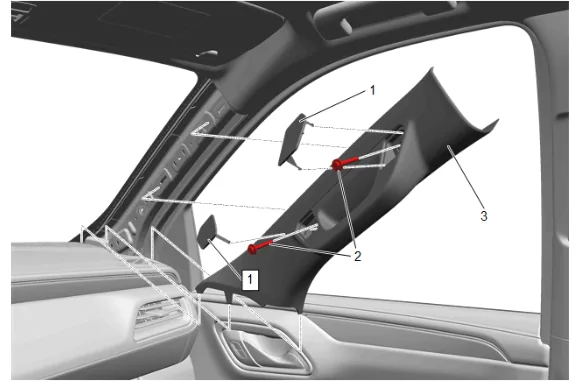

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 15

38. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
39. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
40. Windshield Garnish Molding (3) » Remove

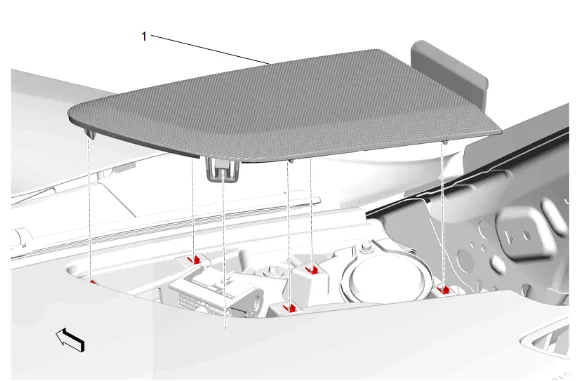

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 16

41. Using a flat-bladed plastic trim tool, release the retaining clips.
42. Radio Front Speaker Grille (1) » Remove

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 17

43. Radio Front Speaker Bolt (1) » Remove [2x]
44. Radio Front Speaker (2) » Remove
45. Disconnect the electrical connector.

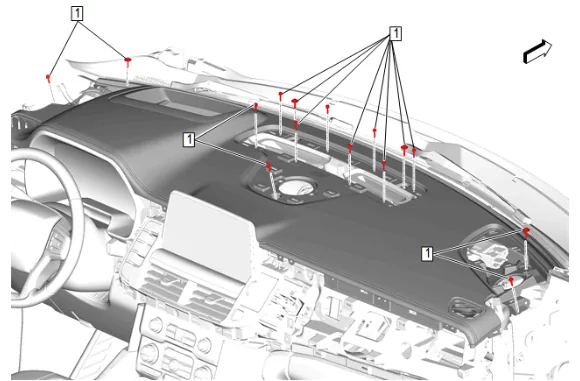

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 18

46. Instrument Panel Upper Trim Panel Bolt (1) » Remove [15x]
47. Disconnect the electrical connector.

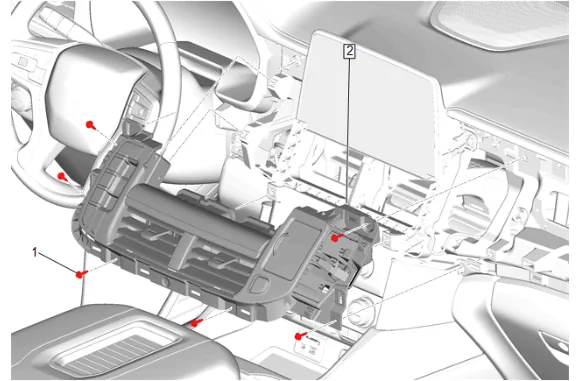

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 19

48. Instrument Panel Center Trim Panel Bolt (1) » Remove [6x]
49. Instrument Panel Transmission Shift Opening Cover (2) » Remove
50. Disconnect the electrical connectors.

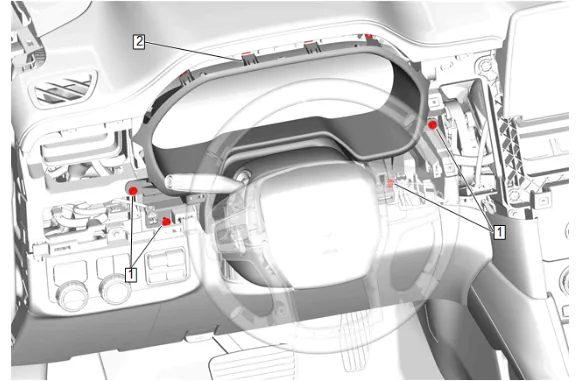

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 20

51. Instrument Panel Cluster Trim Plate Bolt (1) » Loosen [4x]
52. Using a flat-bladed plastic trim tool, release the retaining clips.
53. Instrument Panel Cluster Trim Plate (2) » Loosen

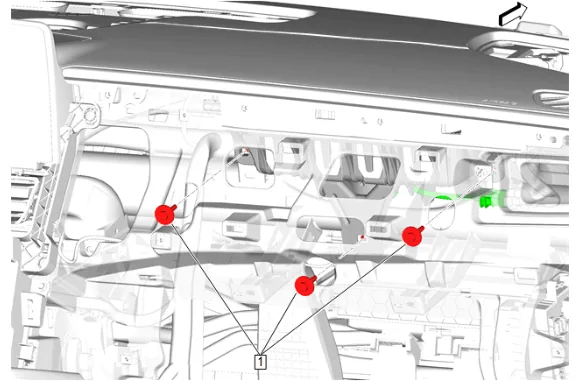

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 21

54. Instrument Panel Airbag Bolt (1) » Remove [3x]
55. Disconnect the electrical connector.

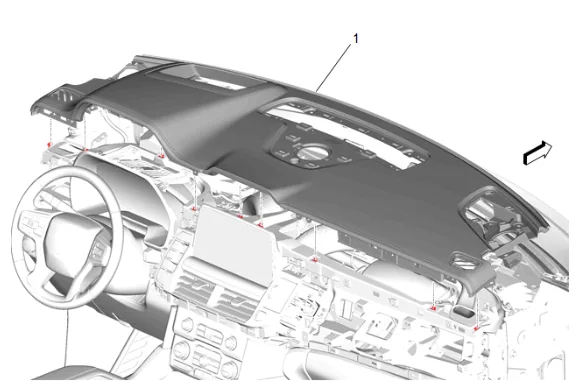

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 22

56. Instrument Panel Upper Trim Panel (1) » Remove
57. With the aid of an assistant remove the instrument panel upper trim panel (1) from the vehicle.

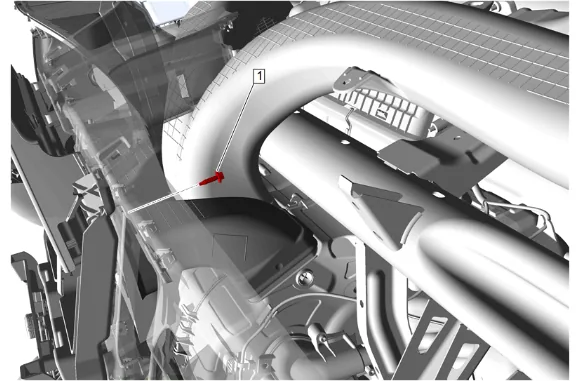

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 23

58. Instrument Panel Center Air Outlet Duct Bolt (1) » Remove

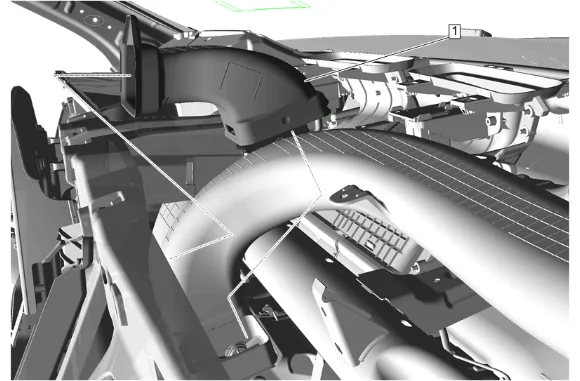

Instrument Panel Center Air Outlet Duct Replacement - Right Side — figure 24

59. Instrument Panel Center Air Outlet Duct - Right Side (1) » Remove Installation Procedure

60. Instrument Panel Center Air Outlet Duct - Right Side (1) » Install

Caution

Refer to Fastener Caution.

2. Instrument Panel Center Air Outlet Duct Bolt (1) » Install and tighten — Fastener Specifications

3. With the aid of an assistant install the instrument panel upper trim panel (1) into the vehicle.

4. Connect the electrical connector.

5. Instrument Panel Upper Trim Panel (1) » Install

6. Connect the electrical connector.

7. Instrument Panel Airbag Bolt (1) » Install and tighten [3x] — Fastener Specifications

8. Instrument Panel Cluster Trim Plate (2) » Install

9. Instrument Panel Cluster Trim Plate Bolt (1) » Install and tighten [4x] — Fastener Specifications

10. Connect the electrical connectors.

11. Instrument Panel Transmission Shift Opening Cover (2) » Install

12. Instrument Panel Center Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

13. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [15x] — Fastener Specifications

14. Connect the electrical connector.

15. Radio Front Speaker (2) » Install

16. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

17. Radio Front Speaker Grille (1) » Install

18. Windshield Garnish Molding (3) » Install

19. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications

20. Windshield Pillar Assist Handle Cover (1) » Install [2x]

21. Connect the electrical connector.

22. Instrument Panel Trim Pad (2) » Install

23. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

24. Instrument Panel Center Trim Plate Applique (1) » Install

25. Instrument Panel Trim Plate Applique (1) » Install

26. Instrument Panel Fuse Block Access Hole Cover (1) » Install

27. Connect the electrical connector.

28. Radio Front Center Speaker (2) » Install

29. Radio Front Center Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

30. Connect the electrical connector.

31. Instrument Panel Extension (1) » Install

32. Connect the electrical connector.

33. Radio Front Speaker (2) » Install

34. Radio Front Speaker Bolt (1) » Install and tighten [2x] — Fastener Specifications

35. Radio Front Speaker Grille (1) » Install

36. Windshield Garnish Molding Bolt (2) » Install and tighten — Fastener Specifications

37. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding  (1) into place.

38. Windshield Garnish Molding (1) » Install

39. Instrument Panel Switch Trim Plate (2) » Install

40. Connect the electrical connectors.

41. Instrument Panel Switch Trim Plate Bolt (1) » Install and tighten — Fastener Specifications

42. Connect the electrical connectors.

43. Instrument Panel Trim Pad (2) » Install

44. Instrument Panel Trim Pad Bolt (1) » Install and tighten [2x] — Fastener Specifications

45. Instrument Panel Trim Plate Applique (1) » Install

46. Instrument Panel Fuse Block Access Hole Cover (1) » Install

47. Instrument Panel Lower Trim Panel Outer Filler (1) » Install

48. Enable the SIR System. SIR Disabling and Enabling
