Front Side Marker Lamp Replacement

Removal Procedure

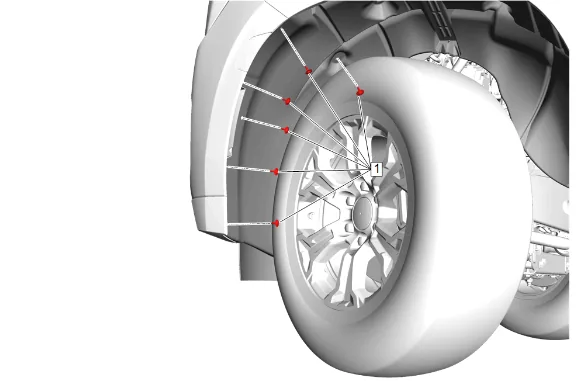

Front Side Marker Lamp Replacement — figure 1

Note

Quantity of fasteners may vary based on option content.

1. Front Wheelhouse Liner Bolt (1) » Remove [6x]

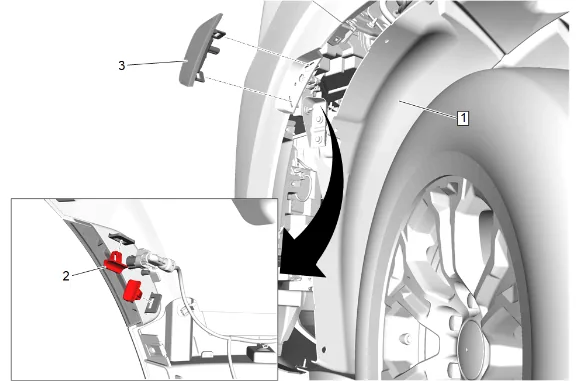

Front Side Marker Lamp Replacement — figure 2

2. Front Wheelhouse Liner (1) » Reposition

3. Disconnect the electrical connector.

4. Front Side Marker Lamp Retainer (2) » Remove [2x]

5. Front Side Marker Lamp (3) » Remove Installation Procedure

6. Front Side Marker Lamp (3) » Install

7. Front Side Marker Lamp Retainer (2) » Install [2x]

8. Connect the electrical connector.

9. Front Wheelhouse Liner (1) » Install

Caution

Refer to Fastener Caution.

Note

Quantity of fasteners may vary based on option content.

5. Front Wheelhouse Liner Bolt (1) » Install and tighten [6x] — Fastener Specifications
