Fastener Specifications Table 1: Emergency Vehicle Reading Lamp Table 2: Emergency Vehicle Warning Rear Lamp Table 3: Front Lighting Table 4: Headlamp Bracket Table 5: Interior Lighting Table 6: Rear Bumper Fascia and Body Lighting Table 7: Rear Liftgate Lighting Table 8: Spot Lamp Handle Table 9: Spot Lamp Mounting Fastener Specifications

Fastener Specifications (1) — figure 1

Emergency Vehicle Reading Lamp

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Emergency Vehicle Reading Lamp Bolt [2x]	—	—	1.3 Y (12 lb in)	Emergency Vehicle Reading Lamp Replacement

Fastener Specifications (1) — figure 2

Emergency Vehicle Warning Rear Lamp

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Emergency Vehicle Warning Rear Lamp Bolt[2x]	—	—	2.6 Y (23 lb in)	Emergency Vehicle Warning Rear Lamp Replacement

Fastener Specifications (1) — figure 3

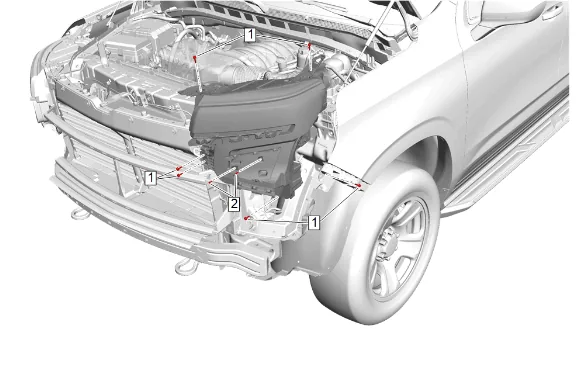

Front Lighting

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Headlamp Bolt [6x]	—	—	6 Y(53 lb in)	Front Headlamp Replacement
2	Headlamp Bracket Bolt [2x]	—	—	2.3 Y(20 lb in)	Headlamp Bracket Replacement

Fastener Specifications (1) — figure 4

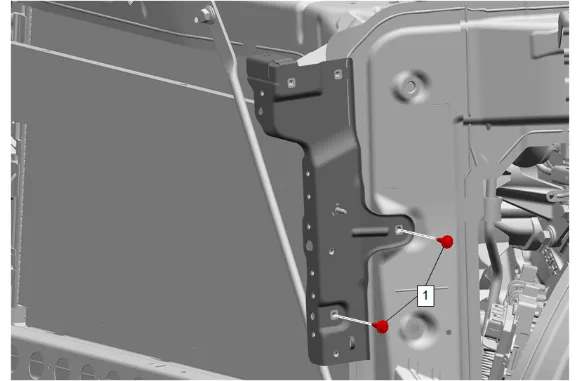

Headlamp Bracket

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Headlamp Bolt [2x]	—	—	9 Y(80 lb in)	Headlamp Bracket Replacement

Object Id: 5600646 Interior Lighting

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Brake Pedal Position Sensor Bolt	—	—	3 Y (27 lb in)	Brake Pedal Position Sensor Replacement

Fastener Specifications (1) — figure 5

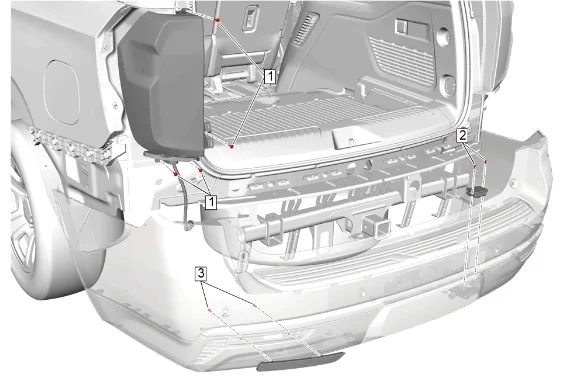

Rear Bumper Fascia and Body Lighting

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Body Structure Stop Lamp Bolt [4x]	—	—	2.5 Y (22 lb in)	Rear Body Structure Stop Lamp Replacement
2	Rear Closure Hands Free Module Bolt [2x]	—	—	1 Y(9 lb in)	Rear Closure Hands Free Lamp Replacement
3	Rear Fascia Signal Lamp Bolt [2x]	—	—	2.5 Y (22 lb in)	Rear Fascia Lower Signal Lamp Replacement

Object Id: 5549600 Rear Liftgate Lighting

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	High Mount Stop	—	—	2.5 Y (22 lb in)	High Mount Stop

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
	Lamp Bolt [3x]				Lamp Replacement
2	Rear Closure Center Applique Nut [2x]	—	—	2 Y (18 lb in)	Rear License Plate Lamp Replacement

Fastener Specifications (1) — figure 6

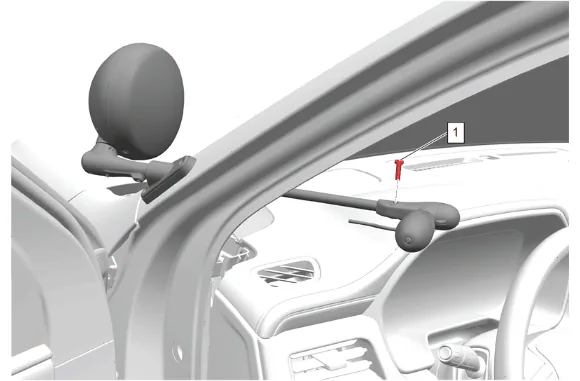

Spot Lamp Handle

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Handle Key Bolt	—	—	5.1 Y (45 lb in)	Spot Lamp Replacement

Object Id: 5793524 Spot Lamp Mounting Thread Locking Adhesive Required Specification Single Component Name Use Fastener/Component Procedure [Component Metric (English) Callout Quantity]

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Spot Lamp Bracket Rivet[3x]	Yes	—	—	Spot Lamp Replacement
2	Spot Lamp Bracket Set Screw	—	—	5.65 Y (50 lb in)	Spot Lamp Replacement
