Fastener Specifications (2)

Fastener Specifications Table 1: Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir Table 2: Automatic Level Control Air Supply Reservoir Replacement Table 3: Automatic Level Control Air Supply Reservoir Coupling Replacement Table 4: Automatic Level Control Module Replacement Table 5: Air Suspension Controller Replacement Table 6: Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller Table 7: Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor Table 8: Air Suspension Control Module Replacement Table 9: Electronic Suspension Control Module Replacement Table 10: Electronic Suspension Control Module Replacement Table 11: Electronic Suspension Front Position Sensor Link Ball Stud Replacement Table 12: Electronic Suspension Position Sensor Link Ball Stud Replacement Table 13: Electronic Suspension Wheel Front Vertical Accelerometer Replacement Table 14: Front Suspension 4 Corner Leveling System Position Sensor Replacement Table 15: Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement

Fastener Specifications (2) — figure 1

Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Air Compressor Tube Fitting	—	—	5.5 Y (49 lb in)	Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir

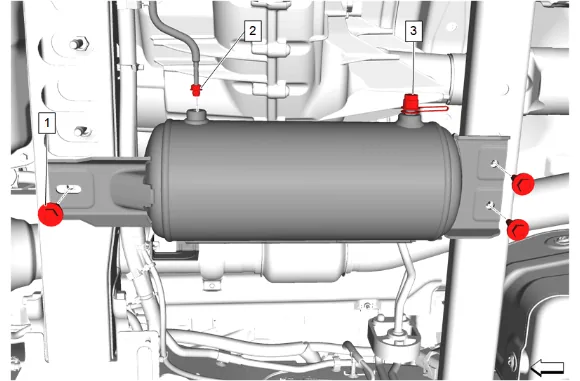

Fastener Specifications (2) — figure 2

Automatic Level Control Air Supply Reservoir Replacement

	Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
					e nent d Metric (English)
	1	Automatic Level Control Air Compressor Bolt [3x]	—	—	58 Y (43 lb ft)	Automatic Level Control Air Supply Reservoir Replacement
	2	Automatic Level Control Air Compressor Tube	—	—	—	Automatic Level Control Air Compressor Tube
		Fitting ©	2023 Gen	eral Motor	s. All rights reserved.	Fitting Replacement -

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
					Automatic Level Control Air Supply Reservoir
3	Automatic Level Control Air Supply Reservoir Coupling Cap	—	—	—	Automatic Level Control Air Supply Reservoir Coupling Replacement

Fastener Specifications (2) — figure 3

Automatic Level Control Air Supply Reservoir Coupling Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Air Supply Reservoir Coupling Cap	—	—	2 Y (18 lb in)	Automatic Level Control Air Supply Reservoir Coupling Replacement
2	Automatic Level Control Air Supply Reservoir Coupling	—	—	10 Y (89 lb in)	Automatic Level Control Air Supply Reservoir Coupling Replacement

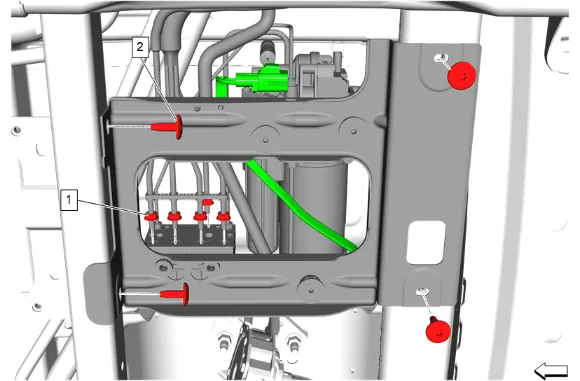

Fastener Specifications (2) — figure 4

Automatic Level Control Module Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Air Compressor Tube Fitting [5x]	—	—	—	Automatic Level Control Module Replacement
2	Automatic Level Control Module Bolt [4x]	—	—	22 Y (16 lb ft)	Automatic Level Control Module Replacement

Fastener Specifications (2) — figure 5

Air Suspension Controller Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Solenoid Bolt [2x]	—	—	5.65 Y (50 lb in)	Air Suspension Controller Replacement

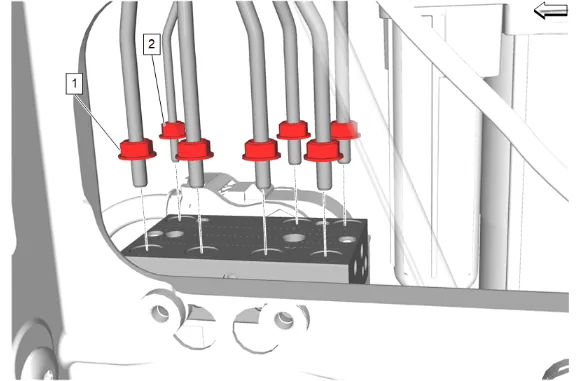

Fastener Specifications (2) — figure 6

Automatic Level Control Air Compressor Tube Fitting Replacement - Air Suspension Controller

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Air Compressor Tube Fitting - 6 MM[6x]	—	—	5.5 Y (49 lb in)	Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir
2	Automatic Level Control Air Compressor Tube Fitting - 4 MM	—	—	5.5 Y (49 lb in)	Automatic Level Control Air Compressor Tube Fitting Replacement - Automatic Level Control Air Supply Reservoir

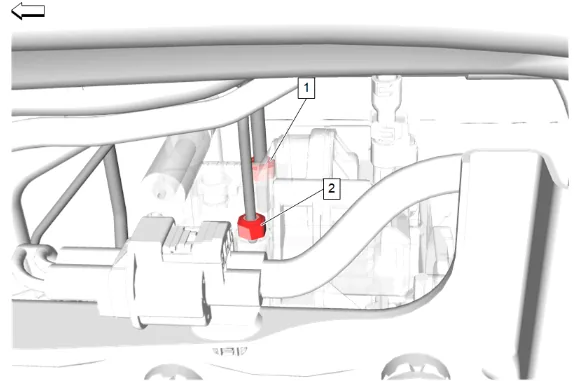

Fastener Specifications (2) — figure 7

Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Air Compressor Tube Fitting - 6 MM	—	—	3.5 Y (31 lb in)	Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor
2	Automatic Level Control Air Compressor Tube Fitting - 4 MM	—	—	2.25 Y (20 lb in)	Automatic Level Control Air Compressor Tube Fitting Replacement - Compressor

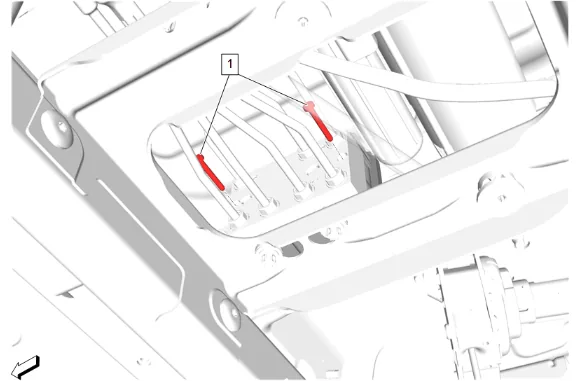

Fastener Specifications (2) — figure 8

Air Suspension Control Module Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Automatic Level Control Air Compressor Bolt [2x]	—	—	2.5 Y (22 lb in)	Air Suspension Control Module Replacement

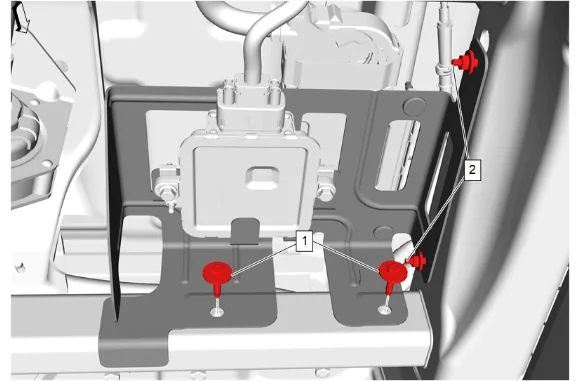

Fastener Specifications (2) — figure 9

Electronic Suspension Control Module Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Electronic Suspension Control Module Bracket Bolt [2x]	—	—	9 Y (80 lb in)	Suspension Control Module Replacement
2	Electronic Suspension Control Module Bracket Stud [2x]	—	—	9 Y (80 lb in)	Suspension Control Module Replacement

Fastener Specifications (2) — figure 10

Electronic Suspension Control Module Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Electronic Suspension Control Module Bracket Nut [4x]	—	—	9 Y (80 lb in)	Suspension Control Module Replacement

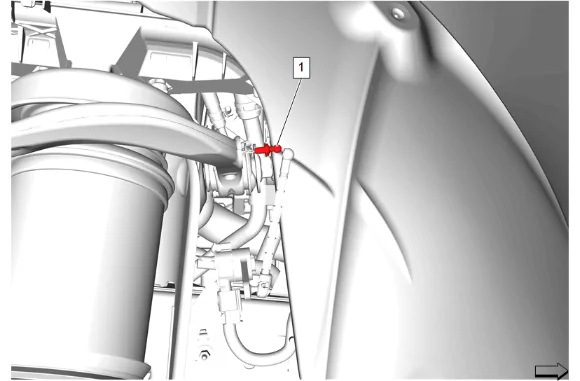

Fastener Specifications (2) — figure 11

Electronic Suspension Front Position Sensor Link Ball Stud Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Electronic Suspension Front Position Sensor Link Ball Stud	—	—	9 Y (80 lb in)	Electronic Suspension Front Position Sensor Link Ball Stud Replacement

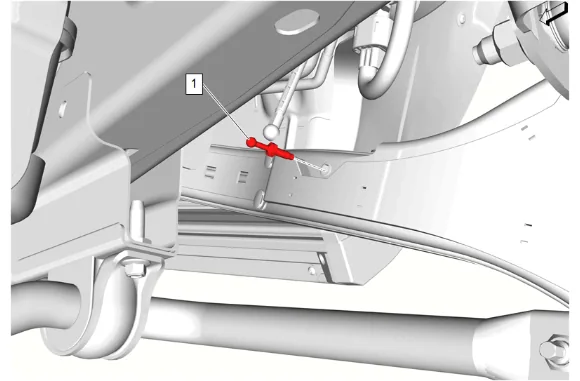

Fastener Specifications (2) — figure 12

Electronic Suspension Position Sensor Link Ball Stud Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Electronic Suspension Position Sensor Link Ball Stud	—	—	9 Y (80 lb in)	Electronic Suspension Position Sensor Link Ball Stud Replacement

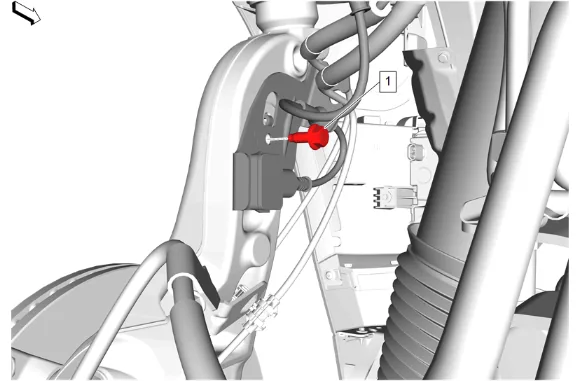

Fastener Specifications (2) — figure 13

Electronic Suspension Wheel Front Vertical Accelerometer Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Electronic Suspension Rear Vertical Accelerometer Bolt	—	—	9 Y (80 lb in)	Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Left Side
					Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Right Side

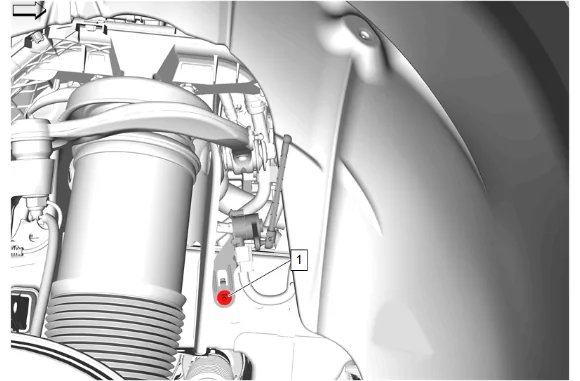

Fastener Specifications (2) — figure 14

Front Suspension 4 Corner Leveling System Position Sensor Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Front Suspension 4 Corner Leveling System Position Sensor	—	—	9 Y (80 lb in)	Front Suspension 4 Corner Leveling System Position Sensor Replacement

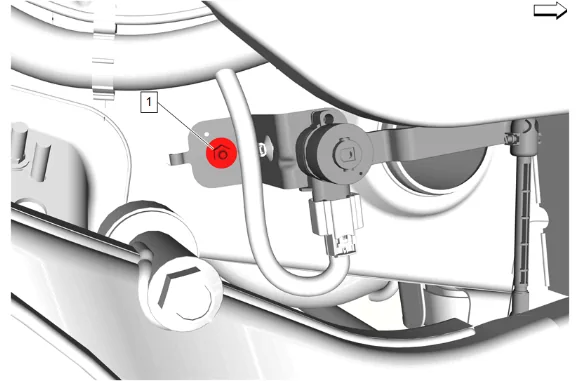

Fastener Specifications (2) — figure 15

Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Rear Suspension 2 or 4 Corner Air Leveling Position Sensor	—	—	9 Y (80 lb in)	Rear Suspension 2 or 4 Corner Air Leveling Position Sensor Replacement
