Front Floor Console Opening Protector Replacement

Removal Procedure

Front Floor Console Opening Protector Replacement — figure 1

1. Front Floor Console Rear Cup Holder Liner (1) » Remove
2. Front Floor Console Cup Holder Bolt (2) » Remove
3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Rear Cup Holder (3) » Remove

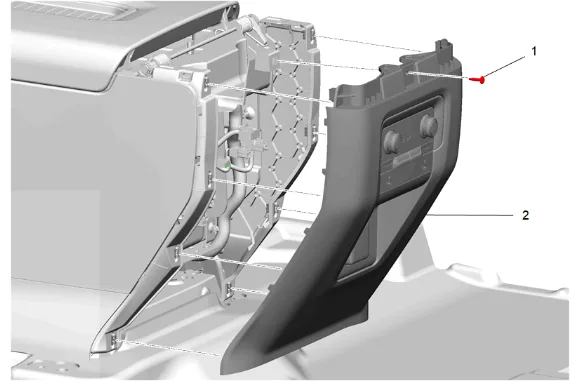

Front Floor Console Opening Protector Replacement — figure 2

5. Front Floor Console Rear Cover Bolt (1) » Remove
6. Using a flat-bladed plastic trim tool, release the retaining clips.
7. Front Floor Console Rear Trim Panel (2) » Remove
8. Disconnect the electrical connectors.

Front Floor Console Opening Protector Replacement — figure 3

9. Front Floor Lower Console Bolt (1) » Remove [2x]

10. Front Floor Console Opening Protector(2) » Remove Installation Procedure

11. Front Floor Console Opening Protector(2) » Install

Caution

Refer to Fastener Caution.

2. Front Floor Lower Console Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connectors.

4. Front Floor Console Rear Trim Panel (2) » Install

5. Front Floor Console Rear Cover Bolt (1) » Install and tighten — Fastener Specifications

6. Front Floor Console Rear Cup Holder (3) » Install

7. Front Floor Console Cup Holder Bolt (2) » Install and tighten — Fastener Specifications

Note

Make sure the liner is properly seated under the front floor console compartment bezel.

8. Front Floor Console Rear Cup Holder Liner (1) » Install
