Tahoe / Yukon Service Manual

Garage Door Opener Transmitter Replacement

Removal Procedure

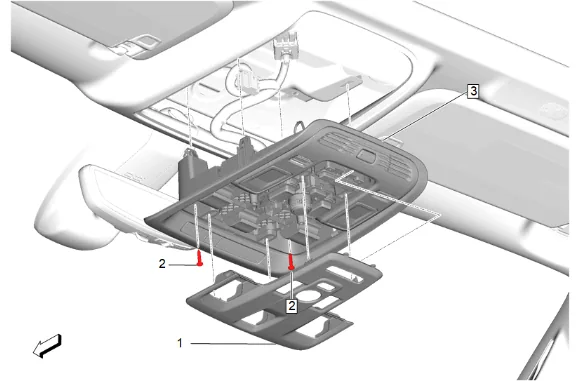

Garage Door Opener Transmitter Replacement — figure 1
Garage Door Opener Transmitter Replacement — figure 1
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Roof Console Opening Trim Plate (1) » Remove
  3. Roof Console Bolt (2) » Remove [2x]
  4. Roof Console (3) » Remove
  5. Disconnect the electrical connectors.

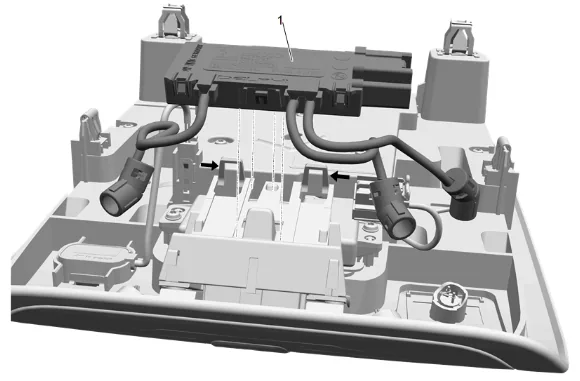

Garage Door Opener Transmitter Replacement — figure 2
Garage Door Opener Transmitter Replacement — figure 2
  1. {with UTV} Reposition the content theft deterrent sensor: 6.1. Release the retaining tabs. 6.2. Content Theft Deterrent Sensor (1) » Reposition

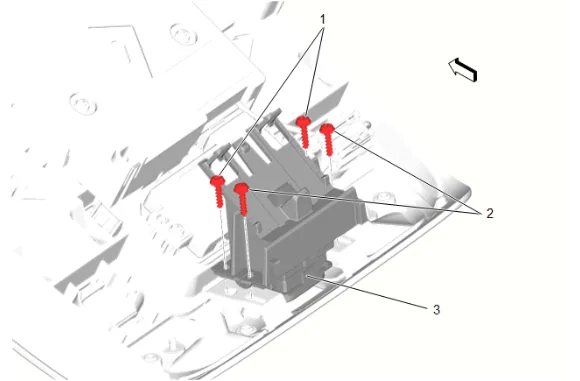

Garage Door Opener Transmitter Replacement — figure 3
Garage Door Opener Transmitter Replacement — figure 3
  1. Roof Console Bracket Bolt (1) » Remove [2x]
  2. Roof Console Bracket Bolt (2) » Remove [2x]
  3. Theft Intrusion Bracket (3) » Reposition

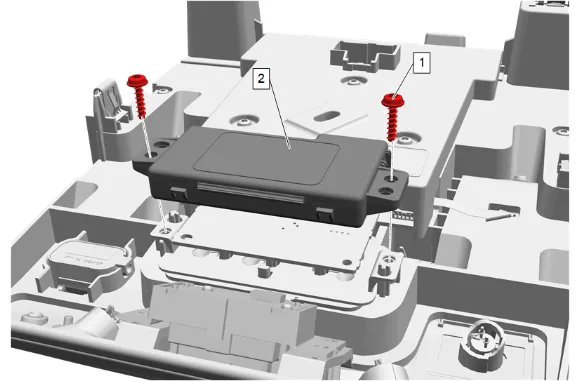

Garage Door Opener Transmitter Replacement — figure 4
Garage Door Opener Transmitter Replacement — figure 4

  1. Garage Door Opener Transmitter Bolt (1) » Remove [2x]

  2. Garage Door Opener Transmitter (2) » Remove

  3. Disconnect the electrical connectors. Installation Procedure

  4. Connect the electrical connectors.

  5. Garage Door Opener Transmitter (2) » Install

  1. Garage Door Opener Transmitter Bolt (1) » Install and tighten [2x] — Fastener Specifications

  2. Theft Intrusion Bracket (3) » Install

  3. Roof Console Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications

  4. Roof Console Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

  5. {with UTV} Install the content theft deterrent sensor: 7.1. Content Theft Deterrent Sensor (1) » Install 7.2. Secure the retaining tabs.

  6. Connect the electrical connectors.

  7. Roof Console (3) » Install

  8. Roof Console Bolt (2) » Install and tighten [2x] — Fastener Specifications

  9. Roof Console Opening Trim Plate (1) » Install
