Tahoe / Yukon Service Manual

Air Cleaner Element Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5519270 Removal Procedure

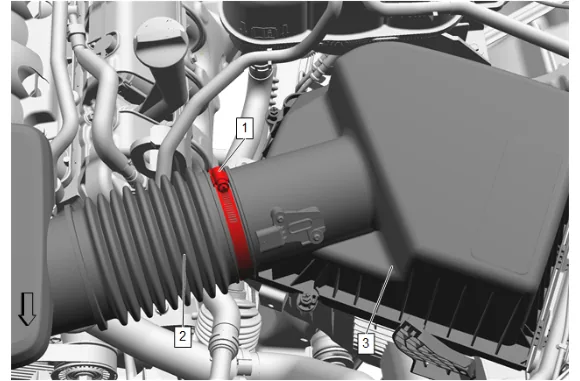

Air Cleaner Element Replacement — figure 1
Air Cleaner Element Replacement — figure 1
  1. Air Cleaner Outlet Duct Clamp (1) » Loosen
  2. Air Cleaner Outlet Duct (2) @ Air Cleaner Upper Housing (3) » Disconnect
  3. Disconnect mass airflow sensor wiring harness.

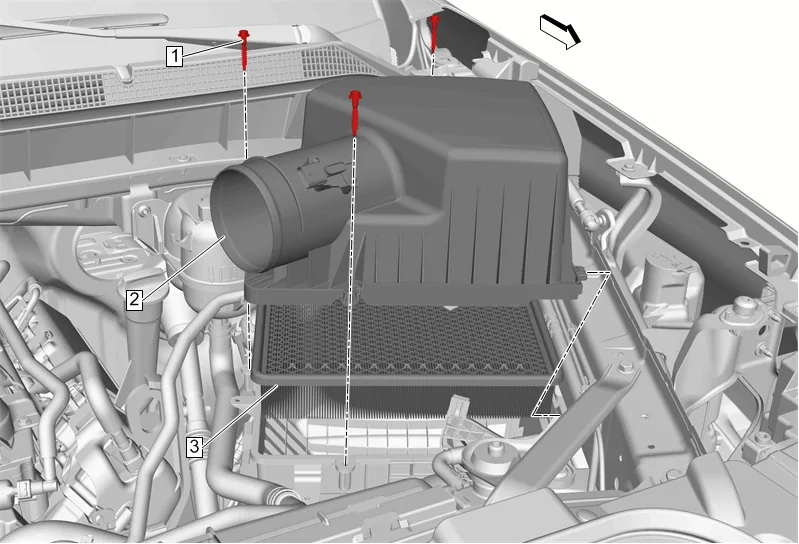

Air Cleaner Element Replacement — figure 2
Air Cleaner Element Replacement — figure 2

  1. Air Cleaner Upper Housing Bolt (1) @ Air Cleaner Upper Housing (2) » Remove [3x]

  2. Air Cleaner Element (3) » Remove Installation Procedure

  3. Air Cleaner Element (3) » Install

  4. Air Cleaner Upper Housing (2) » Install

  1. Air Cleaner Upper Housing Bolt (1) @ Air Cleaner Upper Housing (2) » Install and tighten [3x] — Fastener Specifications

  2. Connect the mass airflow sensor electrical connector.

  3. Air Cleaner Outlet Duct (2) @ Air Cleaner Upper Housing (3) » Install

  4. Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications
