Multifunction Power Supply Converter Replacement

Removal Procedure

1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

Multifunction Power Supply Converter Replacement — figure 1

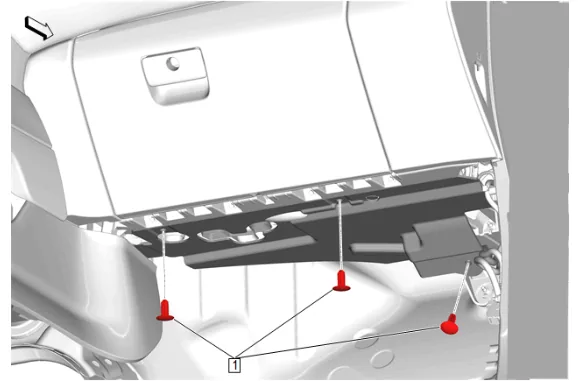

2. { If equipped } Instrument Panel Lower Insulator Retainer (1) » Remove [3x]

Multifunction Power Supply Converter Replacement — figure 2

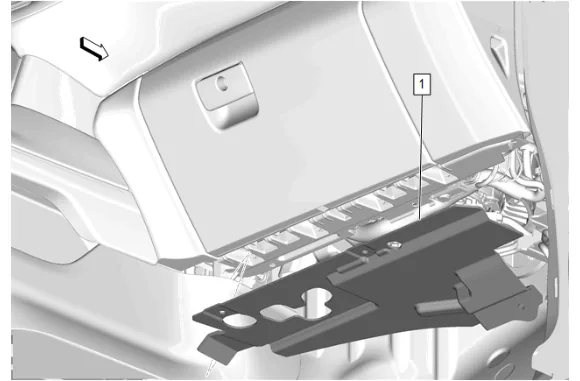

3. { If equipped } Instrument Panel Lower Trim Panel Insulator (1) » Remove

Multifunction Power Supply Converter Replacement — figure 3

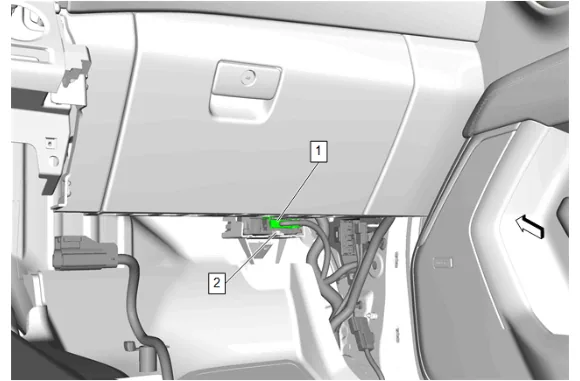

4. Electrical Connector (1) » Disconnect
5. Retaining Tab (2) » Disengage

Multifunction Power Supply Converter Replacement — figure 4

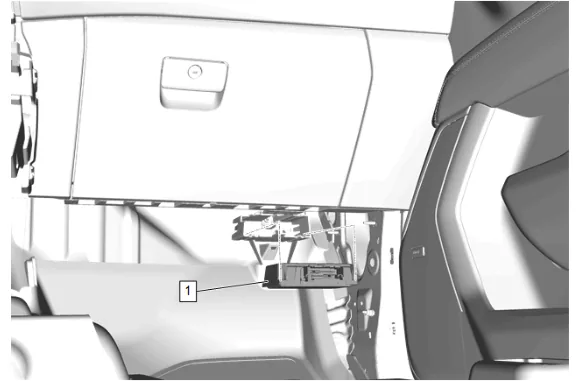

6. Multifunction Power Supply Converter (1) » Remove Installation Procedure

7. Multifunction Power Supply Converter (1) » Install

8. Electrical Connector (1) » Connect

9. Retaining Tab (2) » Engage

10. { If equipped } Instrument Panel Lower Trim Panel Insulator (1) » Install

11. { If equipped } Instrument Panel Lower Insulator Retainer (1) » Install [3x]

12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
