Special Tools

	Illustration	Tool Number / Description

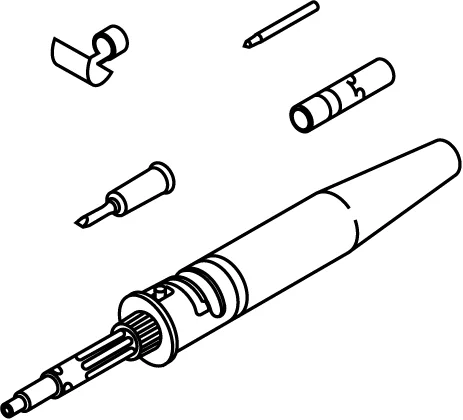

		EL-38125-5A J-38125-5A Ultra Torch
		EL-25070 J-25070 Heat Gun 500–700 F

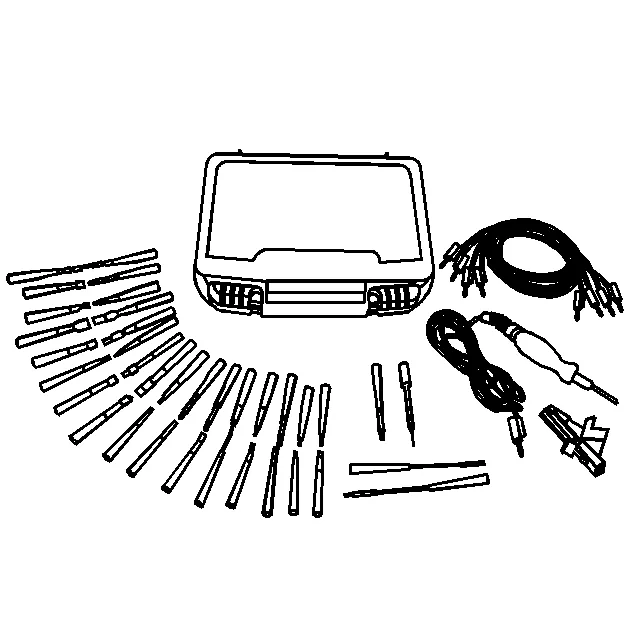

		EL-35616 KM-609 Tyco Electronic Tool (5–1579007–3) Terminal Test Probe Kit

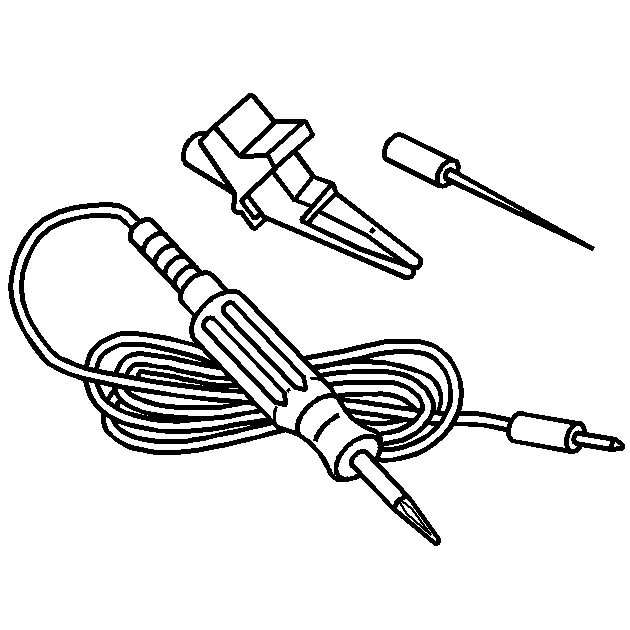

		EL-35616-200 KM-J-34142–B Test Light– Probe Kit

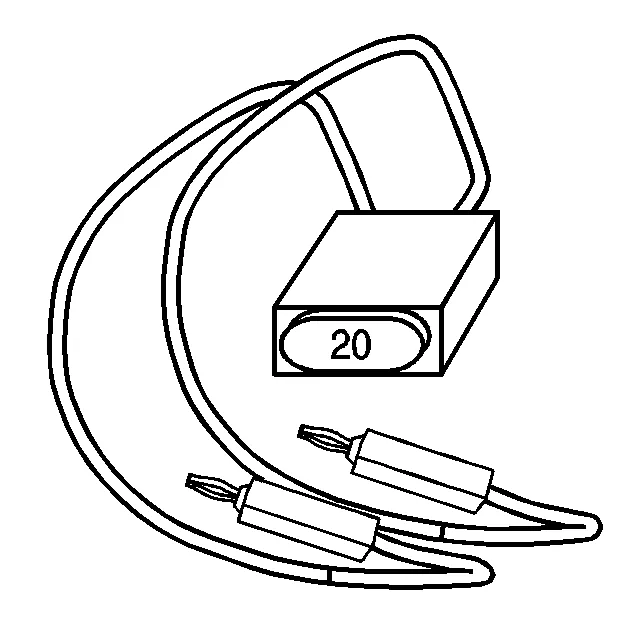

		EL-35616-20F KM-963 Fused Jumper Wire
	© 2023 General Mo	tors. All rights reserved.

Special Tools — figure 1

Special Tools — figure 2

Special Tools — figure 3

Special Tools — figure 4

Special Tools — figure 5

Special Tools — figure 6

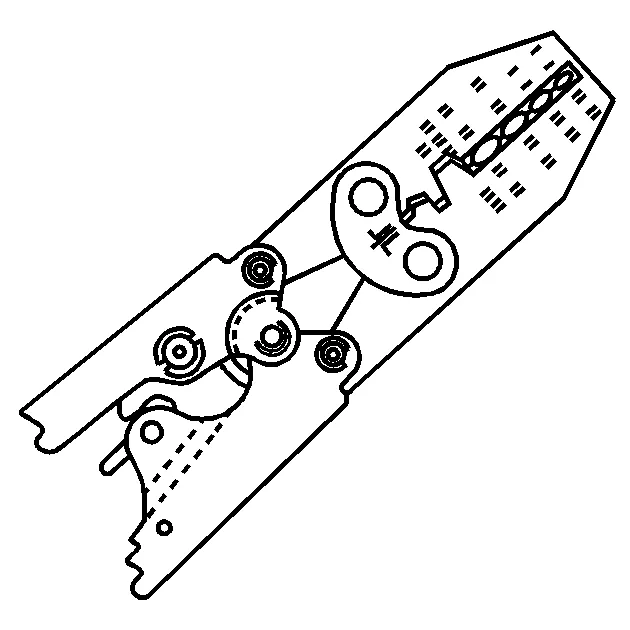

EL-38125–EU (Europe) Illustration Tool Number / Description J-38125-8 (North America Only) EL-38125–10 (Non-North America/Non Europe) Splice Sleeve Crimp Tool

Special Tools — figure 7

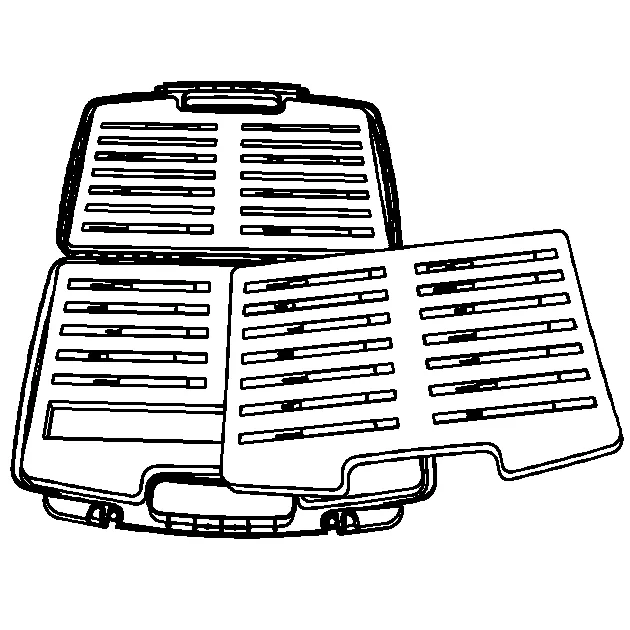

EL-38125-550 (North America Only) Terminal Release Tool Kit

Special Tools — figure 8

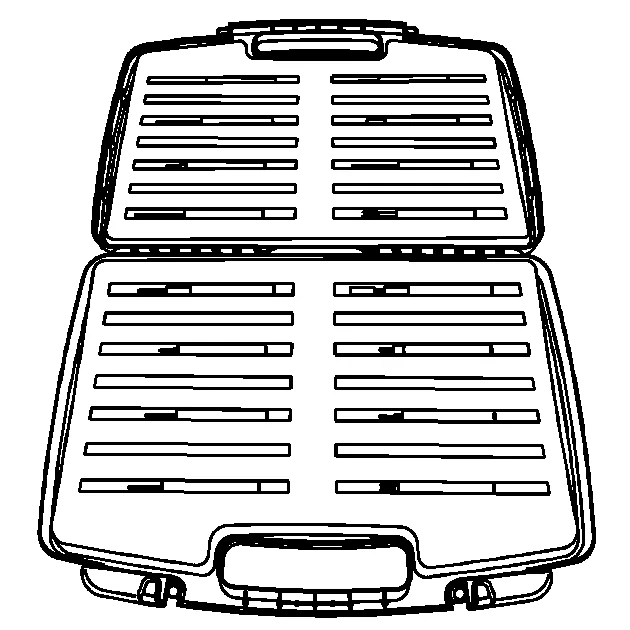

EL-38125-580 (Non-North America) Terminal Release Tool Kit

Special Tools — figure 9

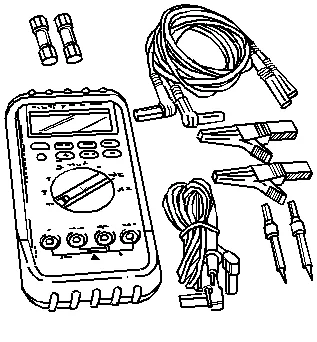

EL-39200-B Digital Multimeter

Special Tools — figure 10

EL-42759 Ignition Switch Connector Release Tool

Illustration	Tool Number / Description
	EL-43244 Relay Puller Pliers

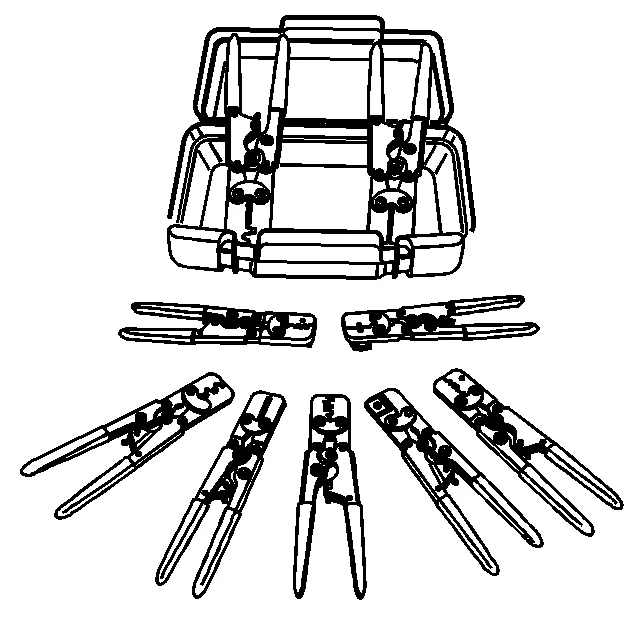

	EL-50040 (Holden Only) Crimping Tool Kit
	EL-52100 Multi Diagnostic Interface 2 (MDI 2)

Special Tools — figure 11

Special Tools — figure 12

Special Tools — figure 13
