Crankcase Pressure Sensor Replacement

Removal Procedure

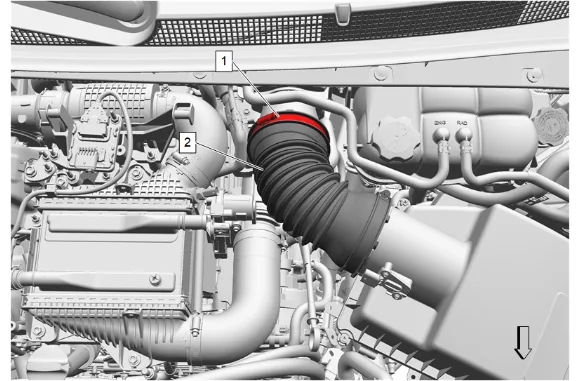

Crankcase Pressure Sensor Replacement — figure 1

1. Air Cleaner Outlet Duct Clamp (1) @ Air Cleaner Outlet Front Duct (2) » Loosen Air Cleaner Outlet Duct
2. Air Cleaner Outlet Front Duct (2) @ Air Cleaner Outlet Duct » Remove

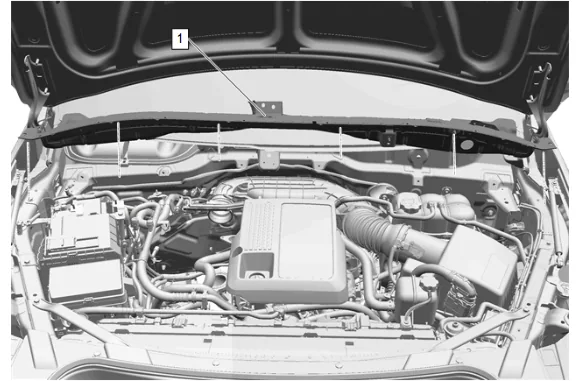

Crankcase Pressure Sensor Replacement — figure 2

3. Plenum Front Panel Outer Reinforcement (1) » Remove — Plenum Front Panel Outer Reinforcement Removal and Installation

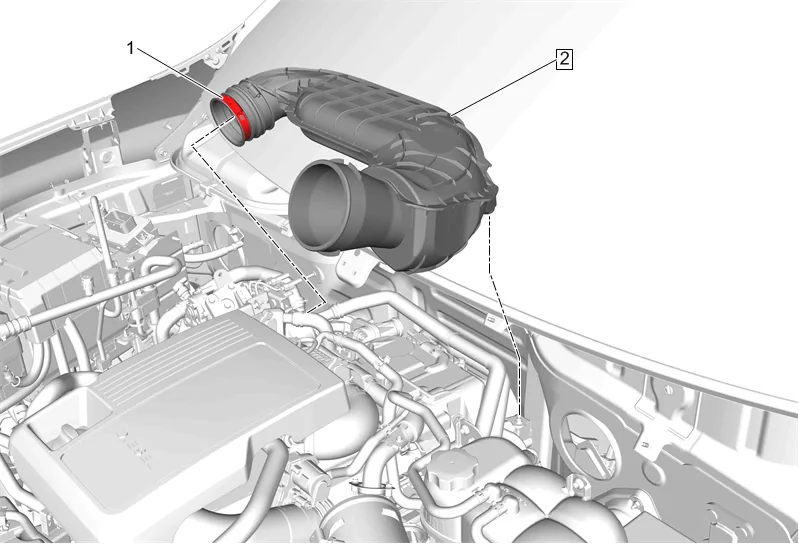

Crankcase Pressure Sensor Replacement — figure 3

4. Air Cleaner Outlet Duct Clamp (1) » Loosen
5. Air Cleaner Outlet Duct (2) » Remove

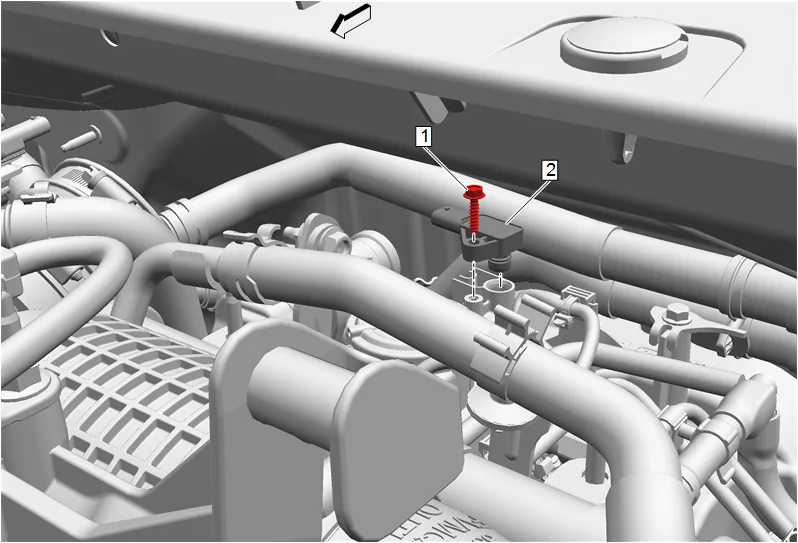

Crankcase Pressure Sensor Replacement — figure 4

6. Disconnect the crankcase pressure sensor electrical connector.
7. Crankcase Pressure Sensor Bolt (1) » Remove
8. Crankcase Pressure Sensor (2) » Remove Installation Procedure

Caution

Refer to Fastener Caution.

1. Crankcase Pressure Sensor (2) » Install

2. Crankcase Pressure Sensor Bolt (1) » Install and tighten — Fastener Specifications

3. Connect the crankcase pressure sensor electrical connector.

4. Air Cleaner Outlet Duct (2) » Install

Caution

Refer to Fastener Caution.

5. Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications

6. Plenum Front Panel Outer Reinforcement (1) » Install — Plenum Front Panel Outer Reinforcement Removal and Installation

7. Air Cleaner Outlet Front Duct (2) @ Air Cleaner Outlet Duct » Install

8. Air Cleaner Outlet Duct Clamp (1) » Tighten — Fastener Specifications
