Parking Assist Control Module Replacement (with 9C1)

Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Place the rear seat in the fold and tumble position.
Parking Assist Control Module Replacement (with 9C1) — figure 1
Parking Assist Control Module Replacement (with 9C1) — figure 1

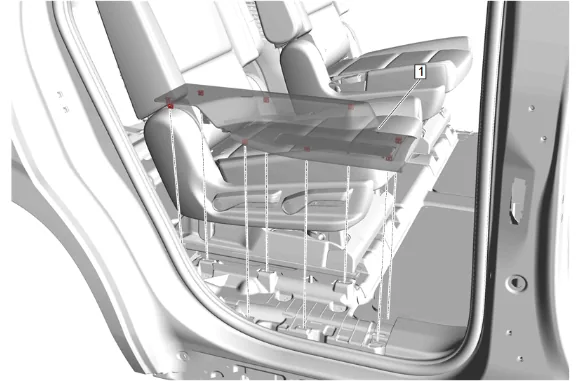

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Side Door Sill Garnish Molding (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 2
Parking Assist Control Module Replacement (with 9C1) — figure 2

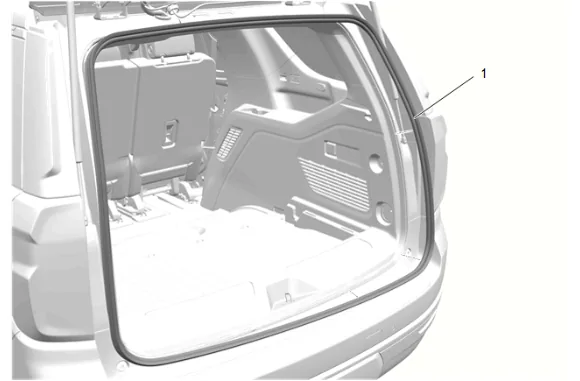

  1. Liftgate Weatherstrip (1) » Reposition
Parking Assist Control Module Replacement (with 9C1) — figure 3
Parking Assist Control Module Replacement (with 9C1) — figure 3
  1. Liftgate Lock Striker Cover (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 4
Parking Assist Control Module Replacement (with 9C1) — figure 4

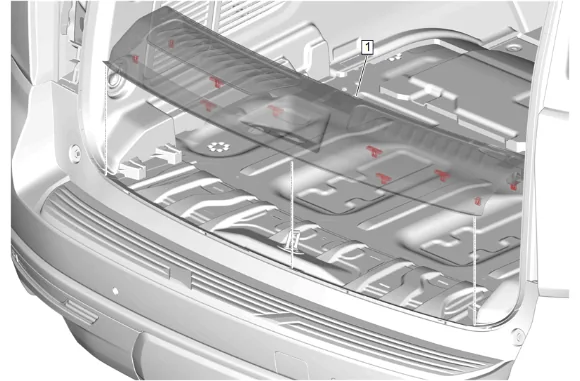

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear End Trim Finish Panel (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 5
Parking Assist Control Module Replacement (with 9C1) — figure 5

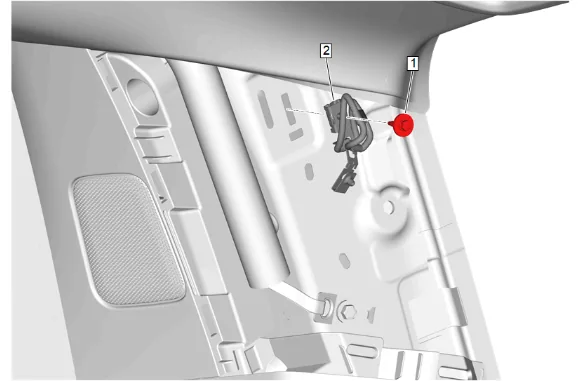

  1. Rear Seat Belt Retractor Sleeve (1) » Reposition
  2. Rear Seat Belt Anchor Plate Bolt (2) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 6
Parking Assist Control Module Replacement (with 9C1) — figure 6
  1. Rear Seat Belt Opening Bezel (1) » Disengage
Parking Assist Control Module Replacement (with 9C1) — figure 7
Parking Assist Control Module Replacement (with 9C1) — figure 7
  1. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
  2. Quarter Window Trim Finish Panel Bolt (2) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 8
Parking Assist Control Module Replacement (with 9C1) — figure 8
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  1. Body Lock Pillar Upper Trim Panel (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 9
Parking Assist Control Module Replacement (with 9C1) — figure 9
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
Parking Assist Control Module Replacement (with 9C1) — figure 10
Parking Assist Control Module Replacement (with 9C1) — figure 10
  1. Body Side Rear Window Garnish Molding Bolt (1) » Remove
  2. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 11
Parking Assist Control Module Replacement (with 9C1) — figure 11
  1. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 12
Parking Assist Control Module Replacement (with 9C1) — figure 12
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Rear Corner Upper Garnish Molding (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 13
Parking Assist Control Module Replacement (with 9C1) — figure 13

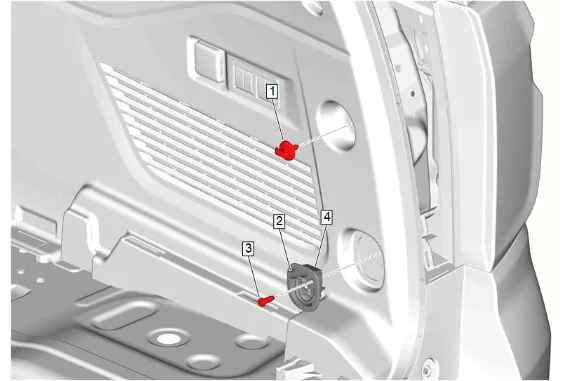

  1. Convenience Net Retainer (1) » Remove
  2. Cargo Tie Down Loop Bolt Cap (2) » Open
  3. Cargo Tie Down Loop Bolt (3) » Remove
  4. Cargo Tie Down Loop (4) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 14
Parking Assist Control Module Replacement (with 9C1) — figure 14

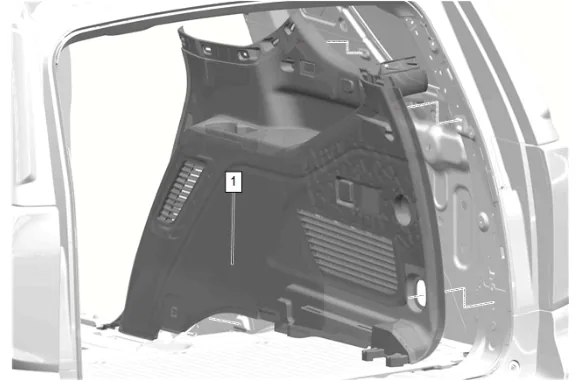

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Quarter Lower Rear Trim Panel (1) » Remove
Parking Assist Control Module Replacement (with 9C1) — figure 15
Parking Assist Control Module Replacement (with 9C1) — figure 15
  1. Disconnect the electrical connectors (1).
  2. Remove the wiring harness retainers (2).
Parking Assist Control Module Replacement (with 9C1) — figure 16
Parking Assist Control Module Replacement (with 9C1) — figure 16

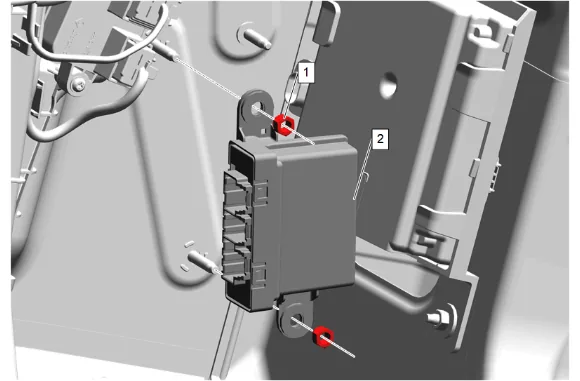

  1. Disconnect the electrical connectors.

  2. Parking Assist Alarm Control Module Nut (1) » Remove [2x]

  3. Parking Assist Control Module (2) » Remove Installation Procedure

  4. Parking Assist Control Module (2) » Install

  1. Parking Assist Alarm Control Module Nut (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the electrical connectors.

  3. Install the wiring harness retainers (2).

  4. Connect the electrical connectors (1).

  5. Quarter Lower Rear Trim Panel (1) » Install

  6. Cargo Tie Down Loop (4) » Install

  7. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

  8. Cargo Tie Down Loop Bolt Cap (2) » Close

  9. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

  10. Body Rear Corner Upper Garnish Molding (1) » Install

  11. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

  12. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

  13. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

  1. Body Side Rear Window Garnish Molding (1) » Install

  1. Body Lock Pillar Upper Trim Panel (1) » Install

  2. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

  3. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

  4. Rear Seat Belt Opening Bezel (1) » Install

  5. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

  6. Rear Seat Belt Retractor Sleeve (1) » Reposition

  7. Rear End Trim Finish Panel (1) » Install

  8. Liftgate Lock Striker Cover (1) » Install

Parking Assist Control Module Replacement (with 9C1) — figure 17
Parking Assist Control Module Replacement (with 9C1) — figure 17

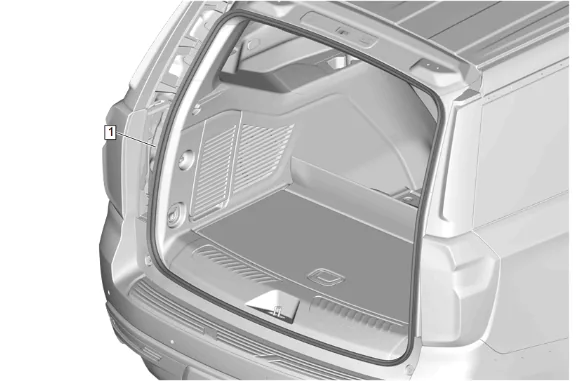

  1. Liftgate Weatherstrip (1) » Install

  2. Rear Side Door Sill Garnish Molding (1) » Install

  3. Return the rear seat to the original position.

  4. Enable the SIR System. SIR Disabling and Enabling

  5. Perform the necessary programming and setup procedure: Control Module References
