Rear Brake Bleeder Valve Replacement

Warning

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

Warning

Brake Dust Warning

Warning

Brake Fluid Irritant Warning Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Raise and support the vehicle. Lifting and Jacking the Vehicle
3. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

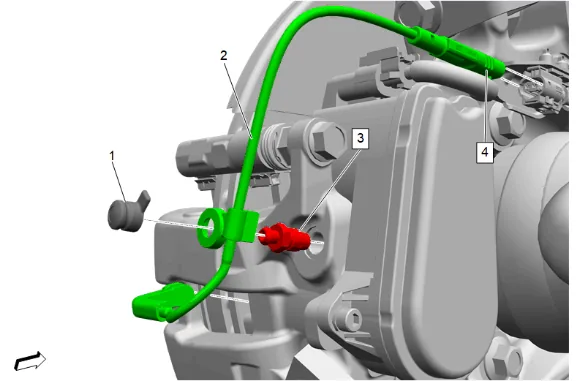

Rear Brake Bleeder Valve Replacement — figure 1

4. Rear Brake Bleeder Valve Cap (1) » Remove
5. { If equipped } Disconnect the electrical connector. (4)
6. { If equipped } Rear Disc Brake Pad Wear Sensor (2) » Remove
7. Rear Brake Bleeder Valve (3) » Remove Installation Procedure

Caution

Fastener Caution

1. Rear Brake Bleeder Valve (3) » Install and tighten — Fastener Specifications
2. { If equipped } Rear Disc Brake Pad Wear Sensor (2) » Install
3. { If equipped } Connect the electrical connector. (4)
4. Rear Brake Bleeder Valve Cap (1) » Install
5. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
6. Check for brake system leaks.
7. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
8. Remove the support and lower the vehicle.
