Front Side Door Window Channel Front Retainer Replacement

Front Side Door Window Channel Front Retainer Replacement Removal Procedure

Warning

Refer to Glass and Sheet Metal Handling Warning.

Warning

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Warning

When installing the water deflector, ensure that the water deflector is securely fastened to the door inner before installing the door trim. An improper seal of the water deflector against the door inner may affect the ability of the front door pressure sensor to detect a side collision. This may result in improper airbag deployment and could cause bodily injury.

1. Disable the SIR system. SIR Disabling and Enabling
2. Front Side Door Trim » Remove — Front Side Door Trim Removal and Installation

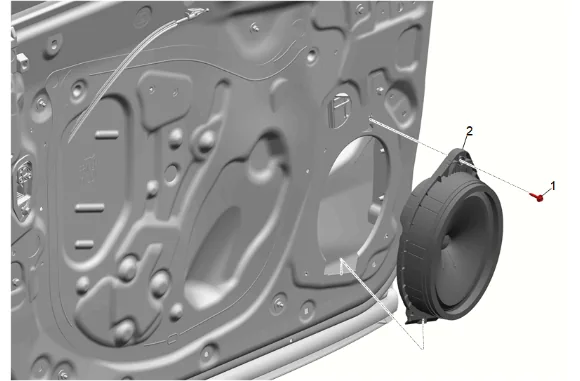

Front Side Door Window Channel Front Retainer Replacement — figure 1

3. Radio Front Side Door Speaker Bolt (1) » Remove
4. Radio Front Side Door Speaker (2) » Remove
5. Disconnect the electrical connector.

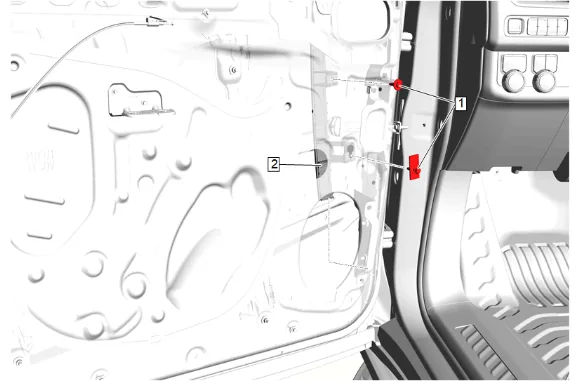

Front Side Door Window Channel Front Retainer Replacement — figure 2

6. Front Side Door Window Channel Front Retainer Bolt (1) » Remove [2x]

7. Front Side Door Window Channel Front Retainer (2) » Remove Installation Procedure

8. Front Side Door Window Channel Front Retainer (2) » Install

Caution

Refer to Fastener Caution.

2. Front Side Door Window Channel Front Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connector.

4. Radio Front Side Door Speaker (2) » Install

5. Radio Front Side Door Speaker Bolt (1) » Install and tighten — Fastener Specifications

6. Front Side Door Trim » Install — Front Side Door Trim Removal and Installation

7. Ensure the window system operates properly.

8. Enable the SIR System. SIR Disabling and Enabling
