Rear Side Door Check Link Replacement

Removal Procedure

  1. Rear Side Door Trim » Remove — Rear Side Door Trim Removal and Installation
Rear Side Door Check Link Replacement — figure 1
Rear Side Door Check Link Replacement — figure 1
  1. Radio Rear Side Door Speaker Bolt (1) » Remove
  2. Radio Rear Side Door Speaker (2) » Remove
  3. Disconnect the electrical connector.

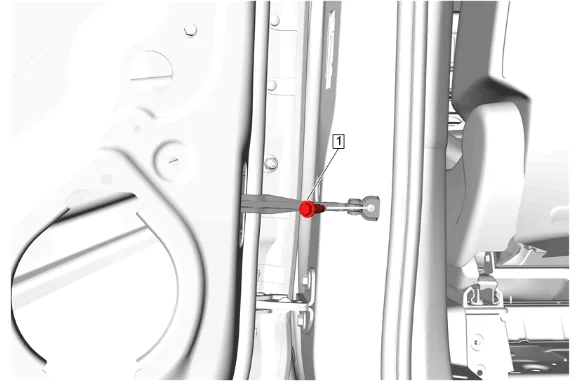

Rear Side Door Check Link Replacement — figure 2
Rear Side Door Check Link Replacement — figure 2
  1. Rear Side Door Check Link Body Side Bolt (1) » Remove

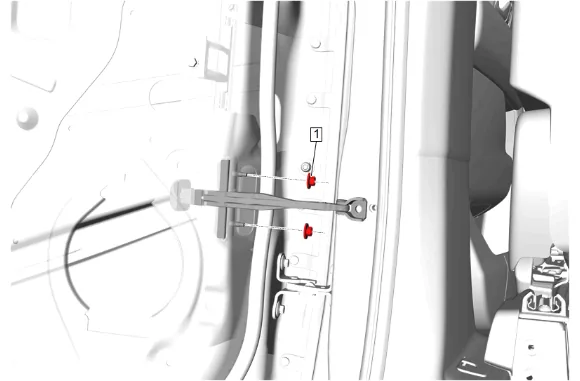

Rear Side Door Check Link Replacement — figure 3
Rear Side Door Check Link Replacement — figure 3
  1. Rear Side Door Check Link Door Side Nut (1) » Remove [2x]
Rear Side Door Check Link Replacement — figure 4
Rear Side Door Check Link Replacement — figure 4

  1. Remove the rear side door check link (1) through the radio rear side door speaker hole. Installation Procedure

  2. Install the rear side door check link (1) through the radio rear side door speaker hole.

  1. Rear Side Door Check Link Door Side Nut (1) » Install and tighten [2x] — Fastener Specifications

  2. Rear Side Door Check Link Body Side Bolt (1) » Install and tighten — Fastener Specifications

  3. Connect the electrical connector.

  4. Radio Rear Side Door Speaker (2) » Install

  5. Radio Rear Side Door Speaker Bolt (1) » Install and tighten — Fastener Specifications

  6. Rear Side Door Trim » Install — Rear Side Door Trim Removal and Installation
