Rear Seat Track Rear Inboard Cover Replacement - Outboard

Rear Seat Track Rear Inboard Cover Replacement - Outboard Removal Procedure

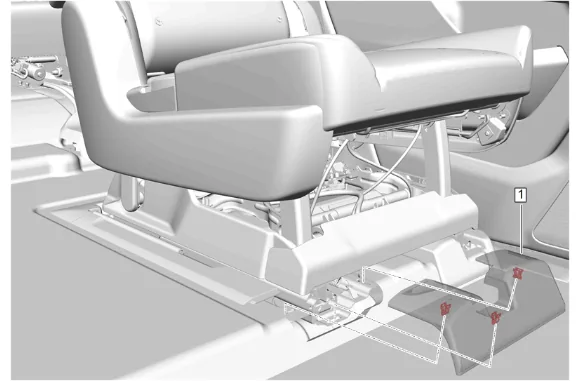

Rear Seat Track Rear Inboard Cover Replacement - Outboard — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Rear Seat Track Front Inboard Cover (1) » Remove

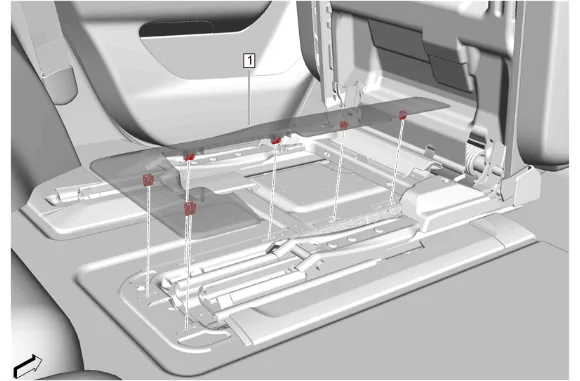

Rear Seat Track Rear Inboard Cover Replacement - Outboard — figure 2

3. Place the rear seat in the fold and tumble position.
4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Rear Seat Track Rear Inboard Cover - Inboard (1) » Remove

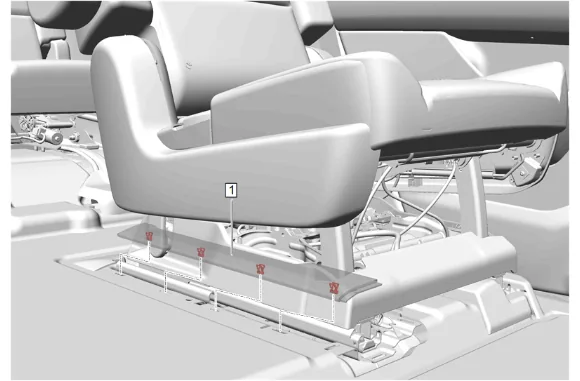

Rear Seat Track Rear Inboard Cover Replacement - Outboard — figure 3

6. Using a flat-bladed plastic trim tool, release the retaining clips.

7. Rear Seat Track Rear Inboard Cover - Outboard (1) » Remove Installation Procedure

8. Rear Seat Track Rear Inboard Cover - Outboard (1) » Install

9. Rear Seat Track Rear Inboard Cover - Inboard (1) » Install

10. Return the rear seat to the original position.

11. Rear Seat Track Front Inboard Cover (1) » Install
