Rear Axle Lubricant Replacement (G86)

Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

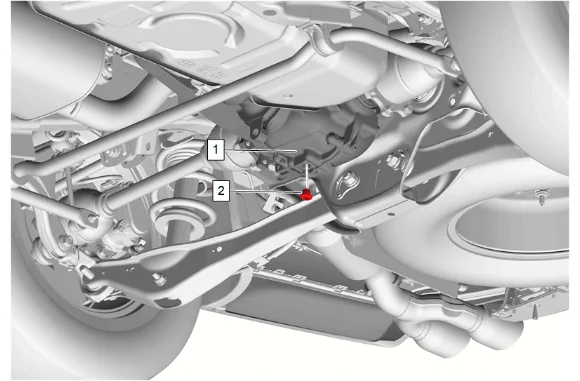

Rear Axle Lubricant Replacement (G86) — figure 1

2. Position a drain pan under the rear differential carrier (1).
3. Rear Axle Housing Drain Plug (2) » Remove

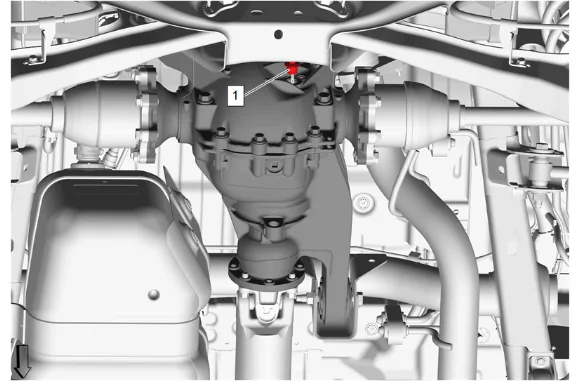

Rear Axle Lubricant Replacement (G86) — figure 2

4. Rear Axle Housing Fill Plug (1) » Remove
5. Clean the rear axle housing drain and fill plugs. Allow the fluid to completely drain. Installation Procedure

Caution

Refer to Component Fastener Tightening Caution.

1. Rear Axle Housing Drain Plug (2) Install and tighten — Fastener Specifications

2. Fill the rear differential carrier with the appropriate amount and type of axle lubricant: Approximate Fluid Capacities Adhesives, Fluids, Lubricants, and Sealers

3. The gear lubricant level should be 0-5 mm(0.0-0.20 in) below the bottom of the fill plug opening.

4. Rear Axle Housing Fill Plug (1) » Install and tighten — Fastener Specifications

5. Lower the vehicle.
