Engine Coolant Temperature Sensor Replacement - Engine Block - Front

Engine Coolant Temperature Sensor Replacement - Engine Block - Front Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling
2. Front Wheelhouse Liner - Left Side » Remove — Front Wheelhouse Liner Replacement

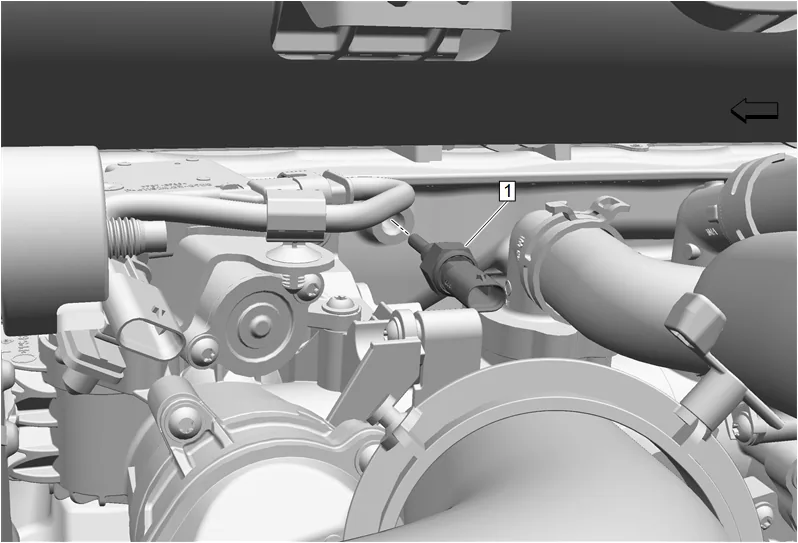

Engine Coolant Temperature Sensor Replacement - Engine Block - Front — figure 1

3. Disconnect the engine coolant temperature sensor electrical connector.
4. Engine Coolant Temperature Sensor (1) » Remove Installation Procedure

Caution

Refer to Component Fastener Tightening Caution.

1. Engine Coolant Temperature Sensor (1) » Install and tighten — Fastener Specifications
2. Connect the engine coolant temperature sensor electrical connector.
3. Front Wheelhouse Liner - Left Side » Install — Front Wheelhouse Liner Replacement
4. Fill the cooling system. Cooling System Draining and Filling
