Front Grille Replacement

Removal Procedure

Front Grille Replacement — figure 1

1. Front Bumper Fascia (2) » Remove — Front Bumper Fascia Removal and Installation

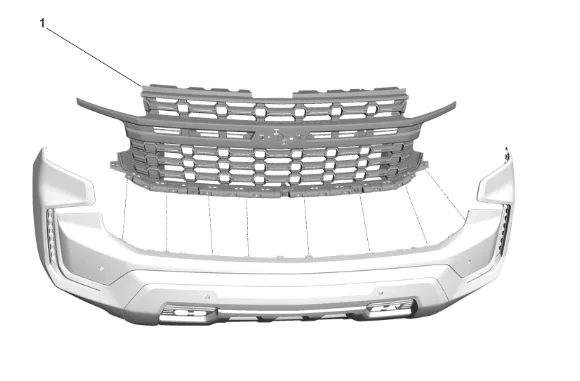

Front Grille Replacement — figure 2

2. Release the clips with a suitable tool.

3. Release the retaining tabs.

4. Disconnect the electrical connectors and release the wiring harness retainers as necessary.

5. Front Grille (1) » Remove

6. Transfer components as necessary. Installation Procedure

7. Front Grille (1) » Install

8. Connect the electrical connectors and install the wiring harness retainers as necessary.

9. Secure the retaining tabs.

10. Front Bumper Fascia (2) » Install — Front Bumper Fascia Removal and Installation
