Rear Stabilizer Shaft Link Replacement

Removal Procedure

1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

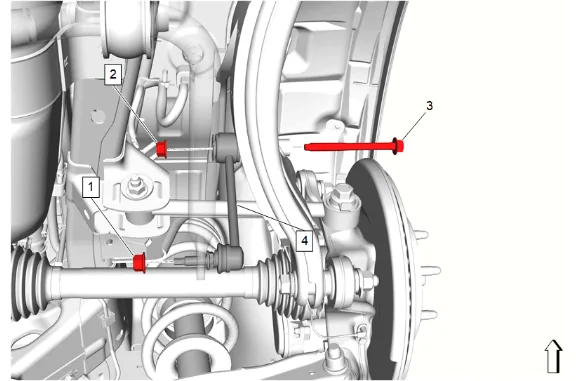

Rear Stabilizer Shaft Link Replacement — figure 1

2. Rear Stabilizer Shaft Link Nut - Lower (1) » Remove
3. Rear Stabilizer Shaft Link Nut - Upper (2) » Remove
4. Rear Stabilizer Shaft Link Bolt (3) » Remove

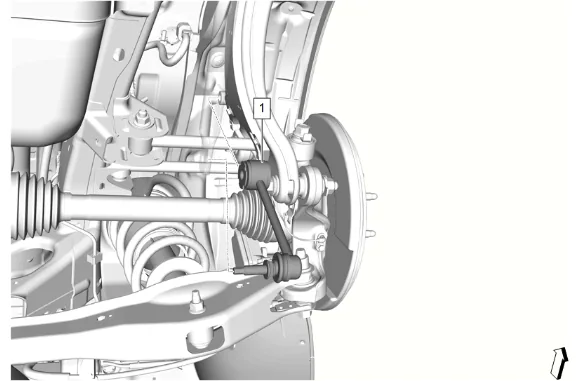

Rear Stabilizer Shaft Link Replacement — figure 2

5. Rear Stabilizer Shaft Link (1) » Remove Installation Procedure

6. Rear Stabilizer Shaft Link (1) » Install

Caution

Refer to Fastener Caution.

2. Rear Stabilizer Shaft Link Bolt (3) » Install
3. Rear Stabilizer Shaft Link Nut - Lower (1) » Install and tighten — Fastener Specifications
4. Rear Stabilizer Shaft Link Nut - Upper (2) » Install
5. Rear Stabilizer Shaft Link Bolt (3) » Tighten — Fastener Specifications
6. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
