Fastener Specifications (2)

Fastener Specifications Table 1: Column Lock Module Table 2: Steering Column Table 3: Steering Wheel Table 4: Steering Wheel Spoke Cover

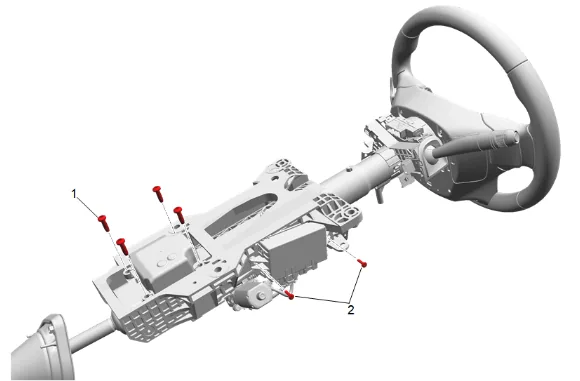

Fastener Specifications (2) — figure 1

Column Lock Module

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Steering Column Lock Control Module Bolt [4x]	—	—	9 Y (80 lb in)	Column Lock Module Replacement
2	Steering Column Control Module Bracket Bolt [2x]	—	—	3 Y (27 lb in)	Steering Column Tilt Wheel and Telescope Control Module Replacement

Fastener Specifications (2) — figure 2

Steering Column

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Intermediate Steering Shaft Lower Bolt	—	Yes	45 Y (33 lb ft)	Intermediate Steering Shaft Replacement
2	Mid Intermediate Steering Shaft Bolt	—	Yes	50 Y (37 lb ft)	Upper Intermediate Steering Shaft Replacement
3	Steering Column Seal Nut [3x]	—	—	9 Y (80 lb in)	Intermediate Steering Shaft Boot Replacement
4	Upper Intermediate Steering Shaft Bolt	—	Yes	45 Y (33 lb ft)	Upper Intermediate Steering Shaft Replacement
5	Steering Column Nut [4x]	—	—	22 Y (16 lb ft)	Steering Column Replacement
6	Steering Wheel Bolt	—	Yes	45 Y (33 lb ft)	Steering Wheel Replacement

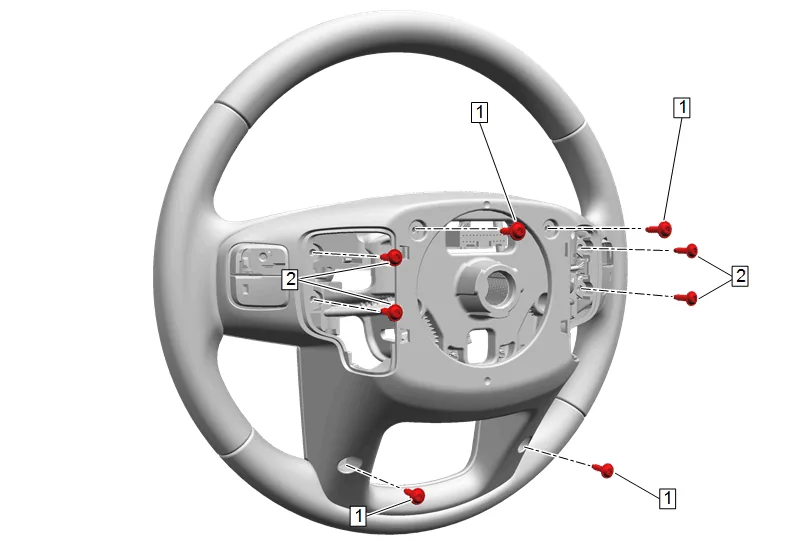

Fastener Specifications (2) — figure 3

Steering Wheel

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Steering Wheel Spoke Cover Bolt [4x]	—	—	1.9 Y (17 lb in)	Steering Wheel Shroud Replacement
2	Steering Wheel Bolt [4x]	—	—	3.3 Y (29 lb in)	Steering Wheel Shroud Replacement

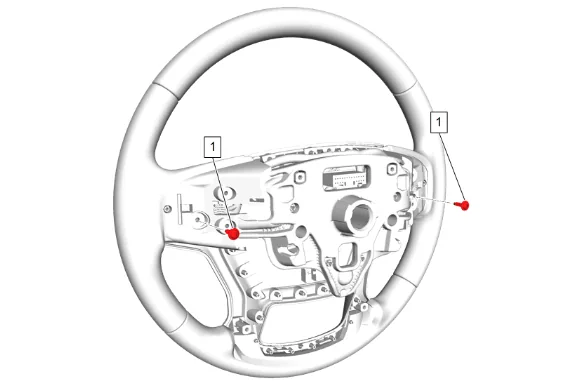

Fastener Specifications (2) — figure 4

Steering Wheel Spoke Cover

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Steering Wheel Spoke Cover Bolt [2x]	—	—	1.1 Y (10 lb in)	Steering Wheel Spoke Cover Replacement
