Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C)

Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C) Removal Procedure

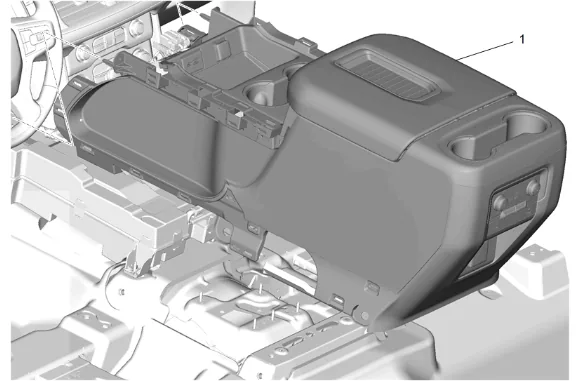

Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C) — figure 1

1. Front Floor Console (1) » Remove — Front Floor Console Removal and Installation

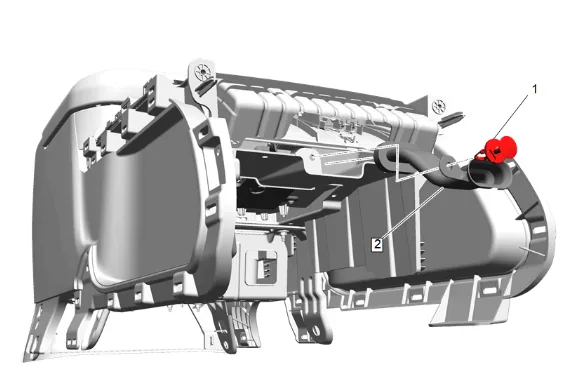

Front Floor Console Auxiliary Cooling Intermediate Duct Replacement (K4C) — figure 2

2. Front Floor Console Auxiliary Cooling Duct Retainer (1) » Remove

3. Front Floor Console Auxiliary Cooling Intermediate Duct (2) » Remove Installation Procedure

4. Front Floor Console Auxiliary Cooling Intermediate Duct (2) » Install

5. Front Floor Console Auxiliary Cooling Duct Retainer (1) » Install

6. Front Floor Console (1) » Install — Front Floor Console Removal and Installation
