Case Half Components

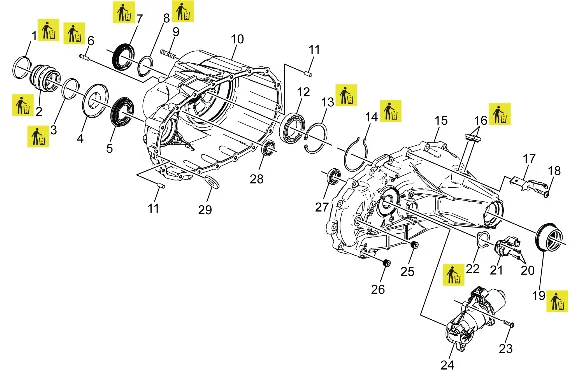

Case Half Components — figure 1

(1) Transfer Case Front Output Shaft Boot Clamp (2) Transfer Case Front Output Shaft Boot (3) Transfer Case Front Output Shaft Boot Clamp (4) Transfer Case Front Output Shaft Oil Slinger (5) Transfer Case Front Output Shaft Seal (6) Transfer Case Vent (7) Transfer Case Input Shaft Seal (8) Transfer Case Input Shaft Bearing Outer Retaining Ring (9) Transfer Case Stud (10) Transfer Case Front Case Half (11) Transfer Case Half Locating Pin [2x] (12) Transfer Case Input Shaft Bearing (13) Transfer Case Input Shaft Inner Retaining Ring (14) Transfer Case Input Shaft Bearing Outer Retaining Ring (15) Transfer Case Rear Case Half (16) Transfer Case Access Hole Plug [2x] (17) Transfer Case Bracket (18) Transfer Case Half Bolt [17x] (19) Transfer Case Two/Four Wheel Drive Actuator Position Sensor Bolt [2x] (20) Transfer Case Rear Output Shaft Seal (21) Transfer Case Two/Four Wheel Drive Actuator Position Sensor (22) Transfer Case Two/Four Wheel Drive Actuator Position Sensor Gasket (23) Transfer Case Two/Four Wheel Drive Actuator Bolt/Screw [4x] (24) Transfer Case Two/Four Wheel Drive Actuator (25) Transfer Case Oil Drain Plug (26) Transfer Case Oil Fill Plug (27) Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing (28) Transfer Case Four Wheel Drive Actuator Lever Shaft Bearing (29) Transfer Case Chip Collector Magnet
