Fuel Pump Power Control Module Replacement (1)

Fuel Pump Power Control Module Replacement Removal Procedure

1. Raise and support the vehicle. Lifting and Jacking the Vehicle

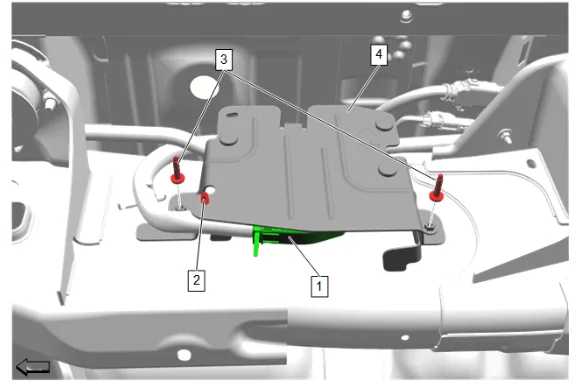

Fuel Pump Power Control Module Replacement (1) — figure 1

2. Disconnect the fuel pump power control module electrical connector (1).
3. Disengage the wiring harness retainer (2).
4. Fuel Pump Power Control Module Bracket Bolt (3) » Loosen [2x]

Note

Slide the fuel pump power control module bracket up and out of the groves in the frame to remove.

5. Fuel Pump Power Control Module Bracket (4) » Remove

Fuel Pump Power Control Module Replacement (1) — figure 2

6. Fuel Pump Power Control Module Nut (1) » Remove [2x]

7. Fuel Pump Power Control Module (2) @ Fuel Pump Power Control Module Bracket (3) » Remove Installation Procedure

8. Fuel Pump Power Control Module (2) @ Fuel Pump Power Control Module Bracket (3) » Install

Caution

Refer to Fastener Caution.

2. Fuel Pump Power Control Module Nut (1) » Install and tighten [2x] — Fastener Specifications

Note

Slide the fuel pump power control module bracket down and into the groves in the frame to install.

3. Fuel Pump Power Control Module Bracket (4) » Install
4. Fuel Pump Power Control Module Bracket Bolt (3) » Tighten [2x] — Fastener Specifications
5. Engage the wiring harness retainer (2).
6. Connect the fuel pump power control module electrical connector (1).
7. Lower the vehicle.
8. Perform the fuel pump power control module configuration. K111 Fuel Pump Power Control Module Configuration
