Auxiliary Evaporative Emission Canister Replacement (Long Wheelbase)

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5606370 Auxiliary Evaporative Emission Canister Replacement (Long Wheelbase)

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
Auxiliary Evaporative Emission Canister Replacement (Long Wheelbase) — figure 1
Auxiliary Evaporative Emission Canister Replacement (Long Wheelbase) — figure 1

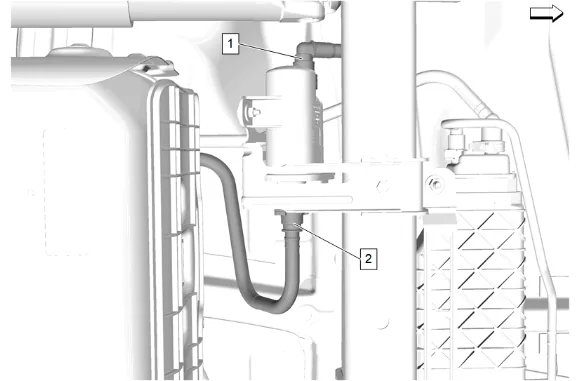

  1. Evaporative Emission Canister Hose (1) » Disconnect — Plastic Collar Quick Connect Fitting Service
  2. Evaporative Emission Canister Filter Hose (2) » Disconnect — Plastic Collar Quick Connect Fitting Service
Auxiliary Evaporative Emission Canister Replacement (Long Wheelbase) — figure 2
Auxiliary Evaporative Emission Canister Replacement (Long Wheelbase) — figure 2

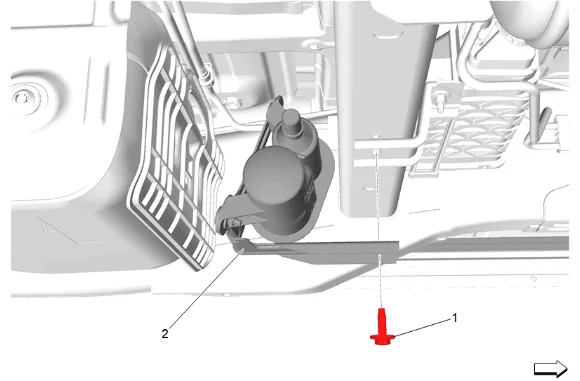

  1. Evaporative Emission Canister Bracket Bolt (1) » Remove

  2. Auxiliary Evaporative Emission Canister (2) » Remove Installation Procedure

  3. Auxiliary Evaporative Emission Canister (2) » Install

  1. Evaporative Emission Canister Bracket Bolt (1) » Install and tighten — Fastener Specifications

  2. Evaporative Emission Canister Filter Hose (2) » Connect — Plastic Collar Quick Connect Fitting Service

  3. Evaporative Emission Canister Hose (1) » Connect — Plastic Collar Quick Connect Fitting Service

  4. Lower the vehicle.
