Fastener Specifications

Table 1: Air Inlet Valve Actuator Table 2: Heater and Air Conditioning Auxiliary Control without 9C1 Table 3: Heater and Air Conditioning Auxiliary Control with 9C1 Table 4: Heater and Air Conditioning User Interface Control Table 5: Mode Control Cam Table 6: Mode Valve Actuator and Temperature Valve Actuator - Left side Table 7: Rear Programmable Mode Valve Actuator - (C69) Table 8: Rear Programmable Temperature Valve Actuator - (C69) Table 9: Temperature Valve Actuator Replacement - Right Side

Fastener Specifications — figure 1

Air Inlet Valve Actuator

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater and Air Conditioning Evaporator and Blower Module Bolt [2x]	—	—	1.2 Y (11 lb in)	Air Inlet Valve Actuator Replacement

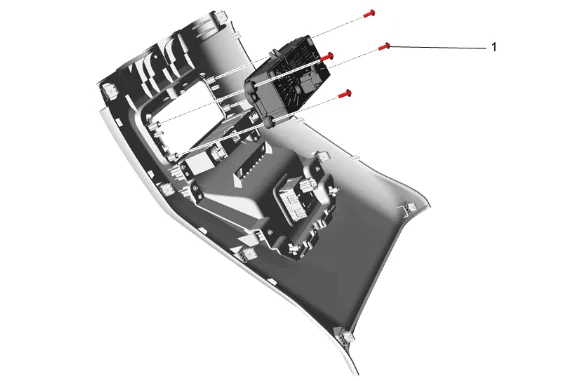

Fastener Specifications — figure 2

Heater and Air Conditioning Auxiliary Control without 9C1

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Auxiliary Heater and Air Conditioning Control Bolt [4x]	—	—	0.8 Y (7 lb in)	Heater and Air Conditioning Auxiliary Control Replacement

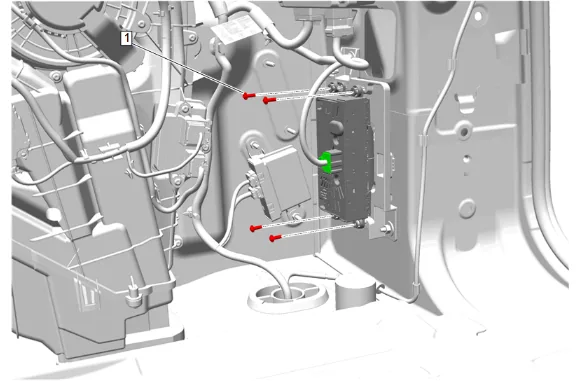

Fastener Specifications — figure 3

Heater and Air Conditioning Auxiliary Control with 9C1

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater and Air Conditioning Auxiliary Control Bolt [4x]	—	—	0.8 Y (7 lb in)	Heater and Air Conditioning Auxiliary Control Replacement

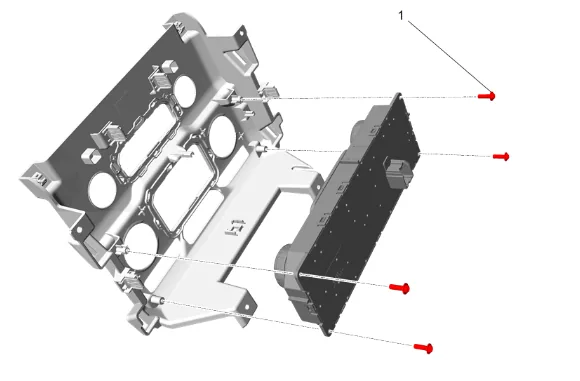

Fastener Specifications — figure 4

Heater and Air Conditioning User Interface Control

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater and Air Conditioning User Interface Control Bolt [4x]	—	—	1.5 Y (13 lb in)	Heater and Air Conditioning User Interface Control Replacement

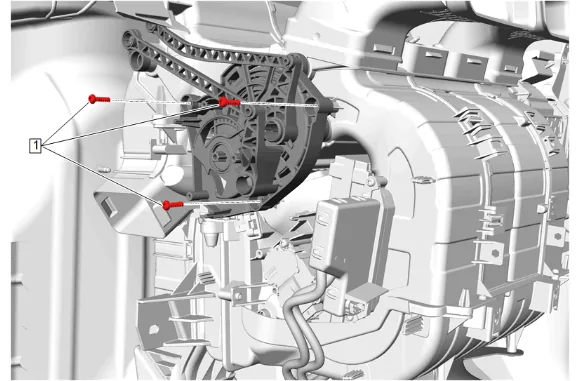

Fastener Specifications — figure 5

Mode Control Cam

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater and Air Conditioning Evaporator and Blower Module Bolt [3x]	—	—	1.2 Y (11 lb in)	Mode Control Cam Replacement

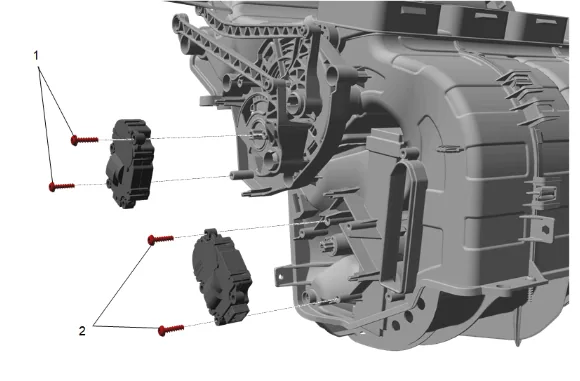

Fastener Specifications — figure 6

Mode Valve Actuator and Temperature Valve Actuator - Left side

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater and Air Conditioning Evaporator and Blower Module Bolt [2x]	—	—	1.2 Y (11 lb in)	Mode Valve Actuator Replacement
2	Heater and Air Conditioning Evaporator and Blower Module Bolt [2x]	—	—	1.2 Y (11 lb in)	Temperature Valve Actuator Replacement - Left Side

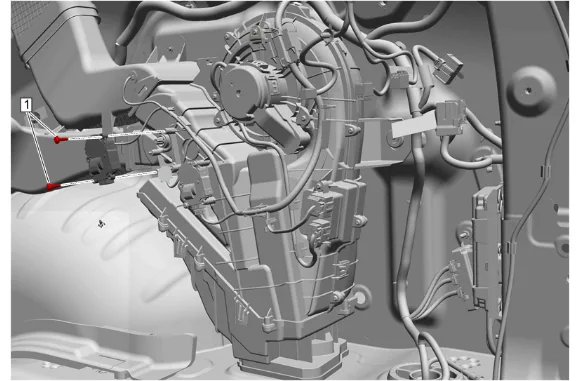

Fastener Specifications — figure 7

Rear Programmable Mode Valve Actuator - (C69)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
2	Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x]	—	—	1.2 Y (11 lb in)	Rear Programmable Mode Valve Actuator Replacement

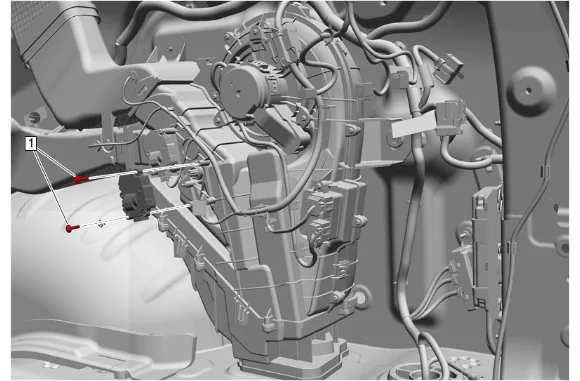

Fastener Specifications — figure 8

Rear Programmable Temperature Valve Actuator - (C69)

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Auxiliary Air Conditioning Evaporator and Blower Module Bolt [2x]	—	—	1.2 Y (11 lb in)	Rear Programmable Temperature Valve Actuator Replacement

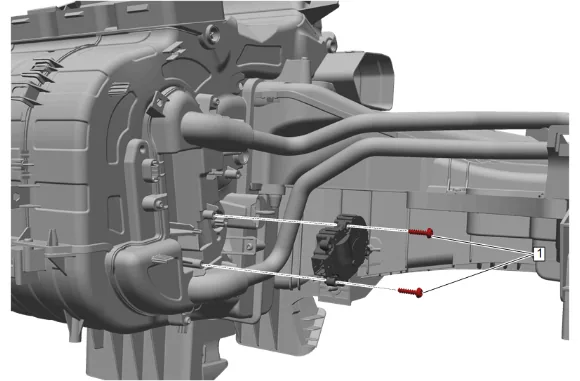

Fastener Specifications — figure 9

Temperature Valve Actuator Replacement - Right Side

Callou	Component Name [Component t Quantity]	Single Use Fastene	Thread Locking Adhesiv r/Compo Require	Specification	Procedure
				e nent d Metric (English)
1	Heater and Air Conditioning Evaporator and Blower Module Bolt [2x]	—	—	1.2 Y (11 lb in)	Temperature Valve Actuator Replacement - Right Side
