3rd Row Seat Hinge Finish Inner Cover Replacement - Inner (40 Percent)

3rd Row Seat Hinge Finish Inner Cover Replacement - Inner (40 Percent) Removal Procedure

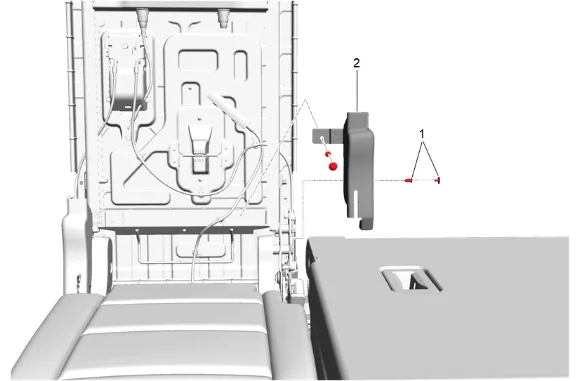

3rd Row Seat Hinge Finish Inner Cover Replacement - Inner (40 Percent) — figure 1

Note

Some components not shown for graphic clarity.

1. Reposition the seat as necessary.
2. Unzip the seat back cover zipper.
3. Reposition the seat back cover and pad as necessary.
4. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
5. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove Installation Procedure

Note

Some components not shown for graphic clarity.

1. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install
2. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]
3. Return the seat back cover and pad to the original position.

Note

Hold both sides of the seat cover together while pulling straight down on the zipper.

4. Zip the seat back cover zipper.
5. Return the seat to its original position.
