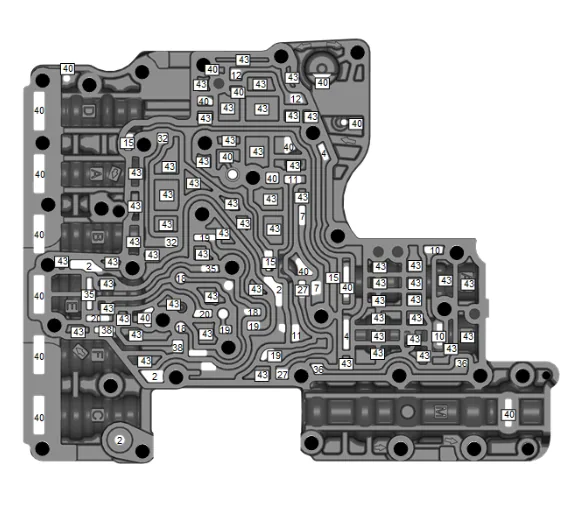

Control Valve Solenoid Body Assembly – Fluid Pan Side

Control Valve Solenoid Body Assembly – Fluid Pan Side — figure 1

(2) Line (4) Decrease (7) TCC Apply (10) VFS-TCC (11) Converter Return (12) VFS Line (14) Reverse (15) Feed Limit – Low (18) Reverse Default (19) ON/OFF Signal (27) 2-3-4-5-7-9-10 Clutch (32) 1-2-3-4-6-7-8-10-Reverse Clutch Exhaust (35) 1-3-5-6-7-8-9 Clutch Exhaust (36) 4-5-6-7-8-9-10-Reverse Clutch (43) Void
