Front Seat Cushion Support Replacement

Removal Procedure

Front Seat Cushion Support Replacement — figure 1

1. Front Seat Cushion Cover and Pad (1) » Remove — Front Seat Cushion Cover and Pad Removal and Installation

Front Seat Cushion Support Replacement — figure 2

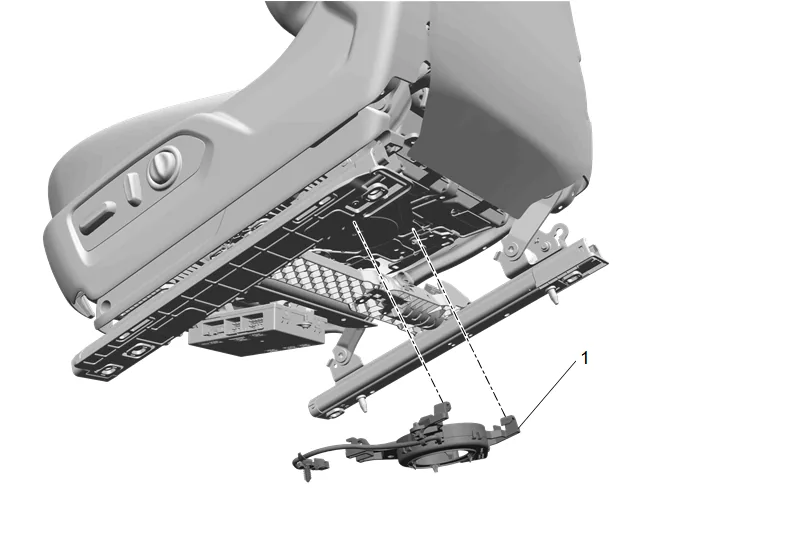

2. Front Seat Cushion Ventilation Blower (1) » Reposition

Front Seat Cushion Support Replacement — figure 3

3. Disconnect the wiring harness retainers.

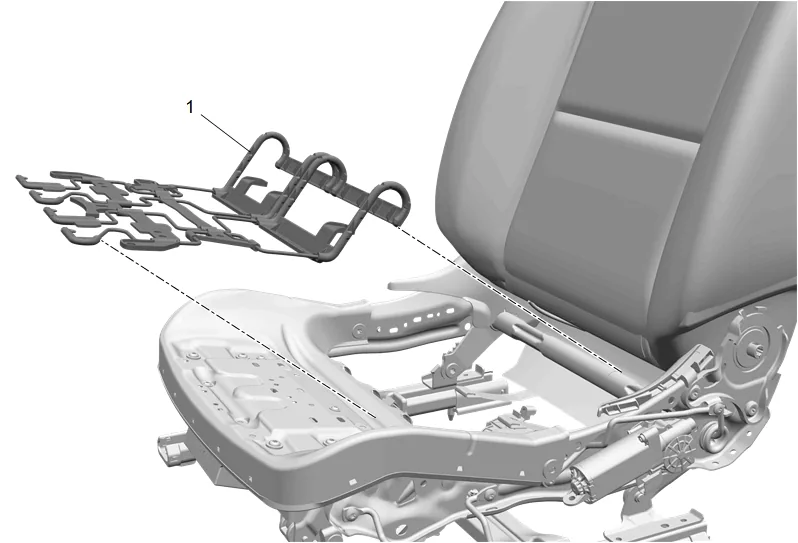

4. Front Seat Cushion Support (1) » Remove Installation Procedure

5. Front Seat Cushion Support (1) » Install

6. Connect the wiring harness retainers.

7. Front Seat Cushion Ventilation Blower (1) » Install

8. Front Seat Cushion Cover and Pad (1) » Install — Front Seat Cushion Cover and Pad Removal and Installation
