Rear Seat Center Belt Retractor Replacement

Removal Procedure

Rear Seat Center Belt Retractor Replacement — figure 1

1. Rear Seat Back Cover and Pad (1) » Remove — Rear Seat Back Cover and Pad Removal and Installation

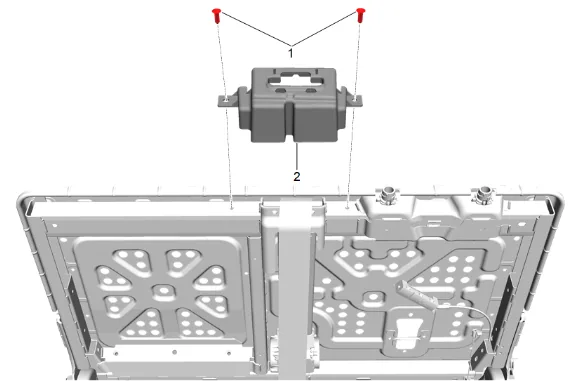

Rear Seat Center Belt Retractor Replacement — figure 2

2. Using a suitable trim tool, release the retainers.
3. Rear Seat Back Opening Finish Cover Retainer (1) » Remove [2x]
4. Rear Seat Belt Guide Trim Cover (2) » Remove
5. Feed the rear seat center belt through the rear seat belt guide trim cover (2).

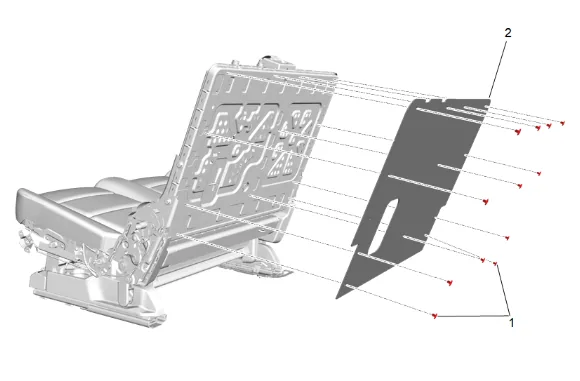

Rear Seat Center Belt Retractor Replacement — figure 3

6. Using a suitable trim tool, release the retainers.
7. Rear Seat Back Cover Retainer (1) » Remove [12x]
8. Rear Seat Back Panel (2) » Remove

Rear Seat Center Belt Retractor Replacement — figure 4

9. Rear Center Seat Belt Buckle Bolt (1) » Remove

10. Feed the rear seat center belt through the rear seat frame.

11. Rear Seat Center Belt Retractor (2) » Remove Installation Procedure

12. Rear Seat Center Belt Retractor (2) » Install

13. Feed the rear seat center belt through the rear seat frame.

Caution

Refer to Fastener Caution.

3. Rear Center Seat Belt Buckle Bolt (1) » Install and tighten — Fastener Specifications

4. Rear Seat Back Panel (2) » Install

5. Rear Seat Back Cover Retainer (1) » Install [12x]

6. Feed the rear seat center belt through the rear seat belt guide trim cover (2).

7. Rear Seat Belt Guide Trim Cover (2) » Install

8. Rear Seat Back Opening Finish Cover Retainer (1) » Install [2x]

9. Rear Seat Back Cover and Pad (1) » Install — Rear Seat Back Cover and Pad Removal and Installation
