Rear Seat Recliner Outer Finish Cover Replacement - Outboard

Rear Seat Recliner Outer Finish Cover Replacement - Outboard Removal Procedure

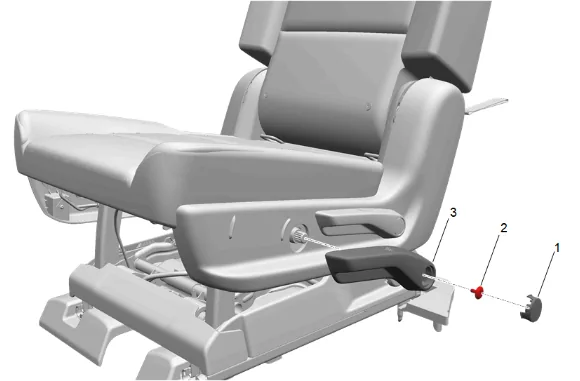

Rear Seat Recliner Outer Finish Cover Replacement - Outboard — figure 1

1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
2. Rear Seat Riser Bolt (2) » Remove
3. Rear Seat Adjuster Handle (3) » Remove

Rear Seat Recliner Outer Finish Cover Replacement - Outboard — figure 2

4. Rear Seat Recliner Handle Bolt Cap (1) » Remove
5. Rear Seat Riser Bolt (2) » Remove
6. Rear Seat Recliner Handle (3) » Remove

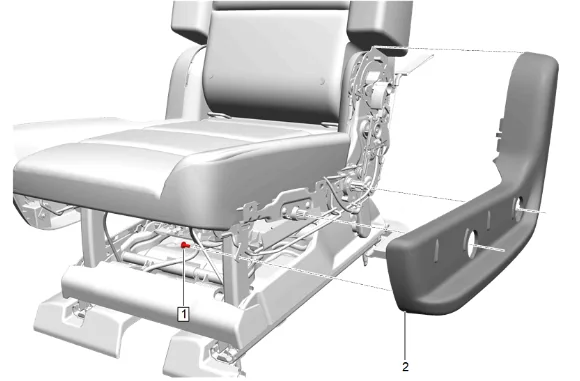

Rear Seat Recliner Outer Finish Cover Replacement - Outboard — figure 3

7. Front Seat Bolt (1) » Remove

8. Using a suitable plastic trim tool, release the retaining tabs.

9. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove Installation Procedure

10. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

Caution

Refer to Fastener Caution.

2. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

3. Rear Seat Recliner Handle (3) » Install

4. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

5. Rear Seat Recliner Handle Bolt Cap (1) » Install

6. Rear Seat Adjuster Handle (3) » Install

7. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

8. Rear Seat Recliner Handle Bolt Cap (1) » Install
