Air Inlet Valve Actuator Replacement

Removal Procedure

Air Inlet Valve Actuator Replacement — figure 1

1. Using a flat-bladed plastic trim tool, release the retaining clips.
2. Front Floor Console Lower Applique (1) » Remove

Air Inlet Valve Actuator Replacement — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Front Floor Console Applique (1) » Remove

Air Inlet Valve Actuator Replacement — figure 3

5. Using a flat-bladed plastic trim tool, release the retaining clips.
6. Instrument Panel Fuse Block Access Hole Cover (1) » Remove

Air Inlet Valve Actuator Replacement — figure 4

7. Using a flat-bladed plastic trim tool, release the retaining clips.
8. Instrument Panel Trim Plate Applique (1) » Remove

Air Inlet Valve Actuator Replacement — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Instrument Panel Center Trim Plate Applique (1) » Remove

Air Inlet Valve Actuator Replacement — figure 6

11. Instrument Panel Upper Trim Panel Bolt (1) » Remove [6x]
12. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Use care not to bend or deform the thin area of the instrument panel trim pad.

13. Instrument Panel Trim Pad (2) » Remove
14. Disconnect the electrical connector.

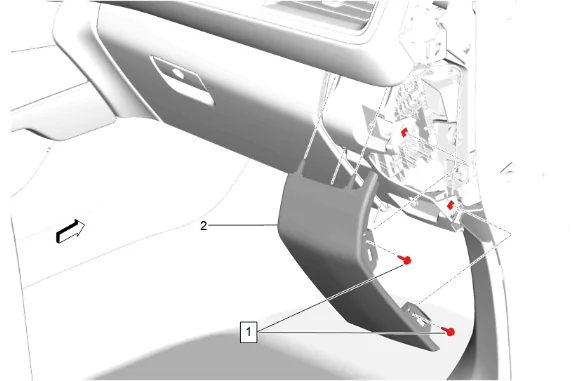

Air Inlet Valve Actuator Replacement — figure 7

15. Instrument Panel Compartment Bolt (1) » Remove [2x]
16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Instrument Panel Lower Trim Panel Outer Filler (2) » Remove

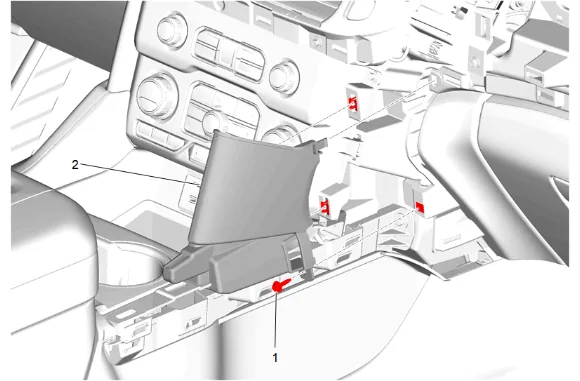

Air Inlet Valve Actuator Replacement — figure 8

18. Instrument Panel Lower Trim Panel Bolt (1) » Remove
19. Using a flat-bladed plastic trim tool, release the retaining clips.
20. Instrument Panel Lower Center Trim Plate Applique (2) » Remove

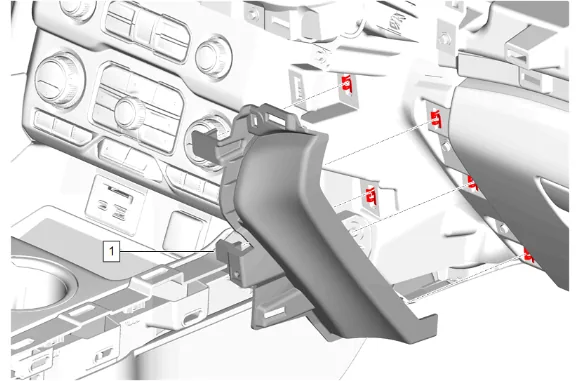

Air Inlet Valve Actuator Replacement — figure 9

21. Using a flat-bladed plastic trim tool, release the retaining clips.
22. Instrument Panel Lower Trim Panel (1) » Remove

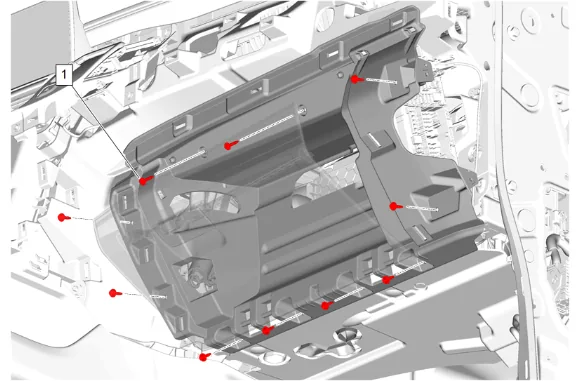

Air Inlet Valve Actuator Replacement — figure 10

23. Instrument Panel Compartment Bolt (1) » Remove [10x]

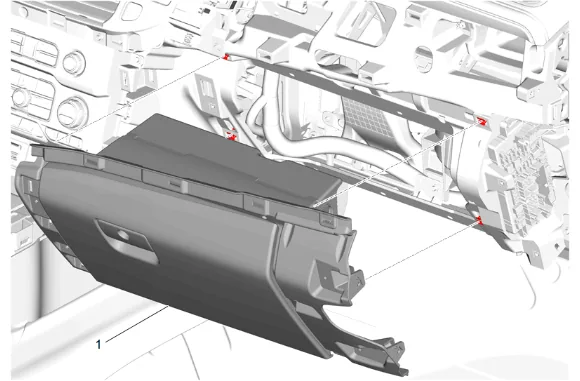

Air Inlet Valve Actuator Replacement — figure 11

24. Instrument Panel Compartment (1) » Remove

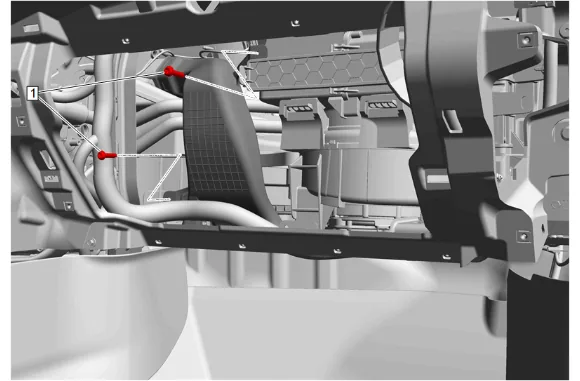

Air Inlet Valve Actuator Replacement — figure 12

25. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Remove [2x]

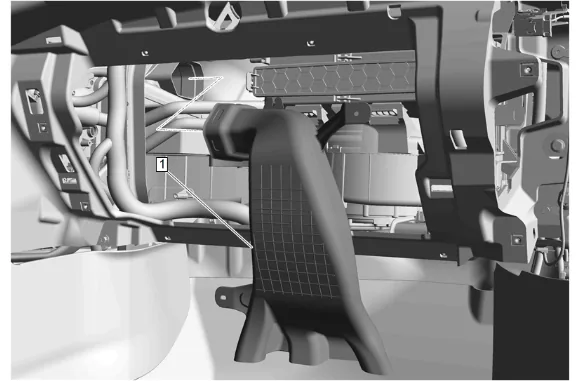

Air Inlet Valve Actuator Replacement — figure 13

26. Floor Front Air Outlet Duct - Right Side (1) » Remove

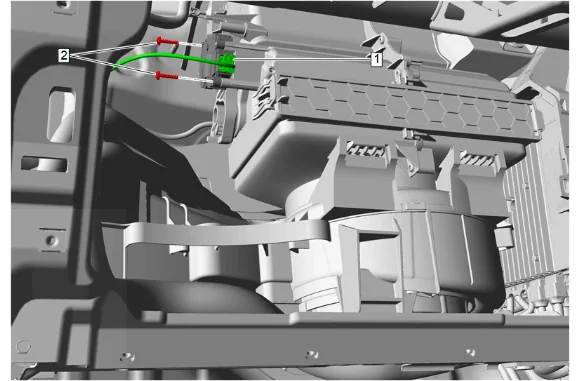

Air Inlet Valve Actuator Replacement — figure 14

27. Disconnect the electrical connector. (1)
28. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Remove [2x]

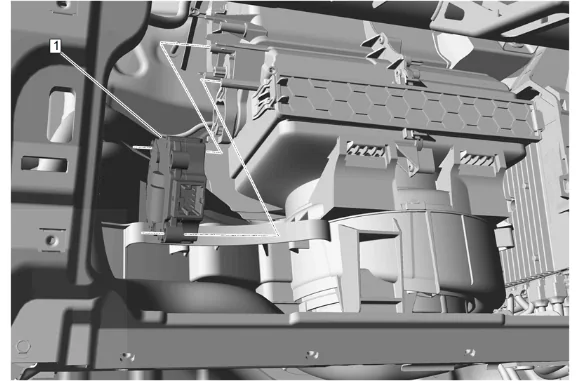

Air Inlet Valve Actuator Replacement — figure 15

29. Air Inlet Valve Actuator (1) » Remove Installation Procedure

30. Air Inlet Valve Actuator (1) » Install

Caution

Refer to Fastener Caution.

2. Heater and Air Conditioning Evaporator and Blower Module Bolt (2) » Install and tighten [2x] — Fastener Specifications

3. Connect the electrical connector. (1)

4. Floor Front Air Outlet Duct - Right Side (1) » Install

5. Heater and Air Conditioning Evaporator and Blower Module Bolt (1) » Install and tighten [2x] — Fastener Specifications

6. Instrument Panel Compartment (1) » Install

7. Instrument Panel Compartment Bolt (1) » Install and tighten [10x] — Fastener Specifications

8. Instrument Panel Lower Trim Panel (1) » Install

9. Instrument Panel Lower Center Trim Plate Applique (2) » Install

10. Instrument Panel Lower Trim Panel Bolt (1) » Install and tighten — Fastener Specifications

11. Instrument Panel Lower Trim Panel Outer Filler (2) » Install

12. Instrument Panel Compartment Bolt (1) » Install and tighten [2x] — Fastener Specifications

13. Connect the electrical connector.

14. Instrument Panel Trim Pad (2) » Install

15. Instrument Panel Upper Trim Panel Bolt (1) » Install and tighten [6x] — Fastener Specifications

16. Instrument Panel Center Trim Plate Applique (1) » Install

17. Instrument Panel Trim Plate Applique (1) » Install

18. Instrument Panel Fuse Block Access Hole Cover (1) » Install

19. Front Floor Console Applique (1) » Install

20. Front Floor Console Lower Applique (1) » Install
