Radio Front Speaker Grille Replacement - Right Side

Removal Procedure

Warning

Refer to SIR Warning.

Caution

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

1. Disable the SIR system. SIR Disabling and Enabling

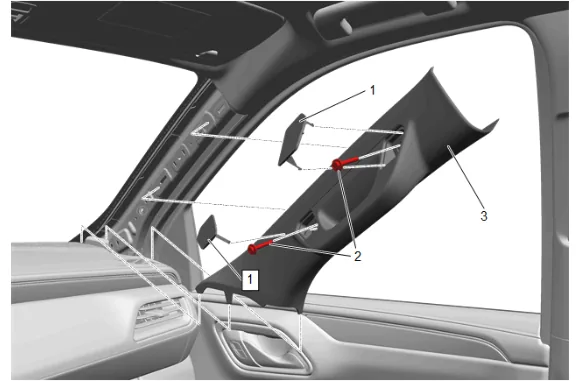

Radio Front Speaker Grille Replacement - Right Side — figure 1

2. Windshield Pillar Assist Handle Cover (1) » Remove [2x]
3. Windshield Pillar Assist Handle Bolt (2) » Remove [2x]
4. Windshield Garnish Molding (3) » Remove

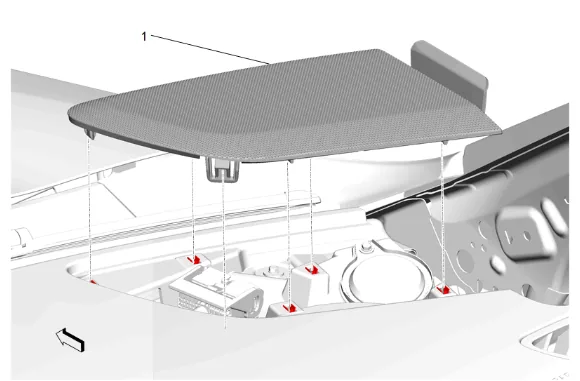

Radio Front Speaker Grille Replacement - Right Side — figure 2

5. Using a flat-bladed plastic trim tool, release the retaining clips.

6. Radio Front Speaker Grille (1) » Remove Installation Procedure

7. Radio Front Speaker Grille (1) » Install

8. Windshield Garnish Molding (3) » Install

Caution

Refer to Fastener Caution.

3. Windshield Pillar Assist Handle Bolt (2) » Install and tighten [2x] — Fastener Specifications
4. Windshield Pillar Assist Handle Bolt Cover (1) » Install [2x]
5. Enable the SIR System. SIR Disabling and Enabling
