Fastener Specifications
Table 1:
Front Floor Console Armrest Latch with DCK
Table 2:
Front Floor Console Armrest Cable
Table 3:
Front Floor Console with D07
Table 4:
Front Floor Console with DCH
Table 5:
Front Floor Console with DCK
Table 6:
Instrument Panel
Table 7:
Instrument Panel Carrier
Table 8:
Instrument Panel Lower Center Trim Panel
Table 9:
Instrument Panel Tie Bar
Table 10:
Instrument Panel Tie Bar - Inboard
Table 11:
Roof Console
Table 12:
Theft Intrusion Bracket

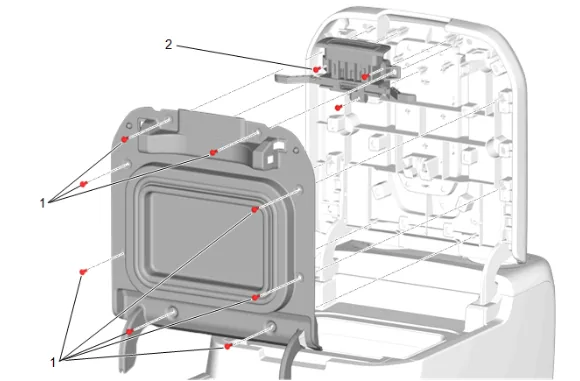

Fastener Specifications (3) — figure 1

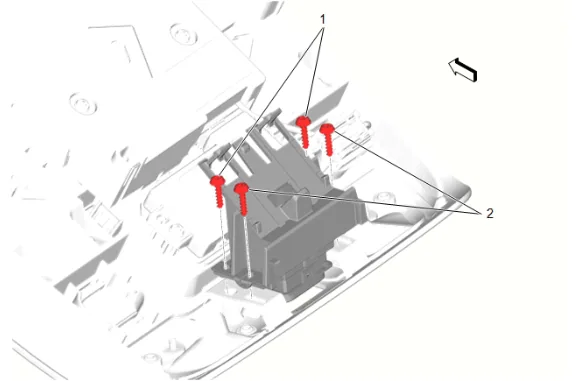

Front Floor Console Armrest Latch with DCK
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Front Floor Console Armrest Bolt [8x] |
— |
— |
1 Y (9 lb in) |
Front Floor Console Armrest Latch Replacement |
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 2 |
Front Floor Console Armrest Bolt [3x] |
— |
— |
1 Y (9 lb in) |
Front Floor Console Armrest Latch Replacement |
Fastener Specifications (3) — figure 2
Front Floor Console Armrest Cable
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Front Floor Console Bracket Bolt @ Front Floor Console Base[2x] |
— |
— |
0.7 Y (6 lb in) |
Front Floor Console Armrest Cable Replacement |

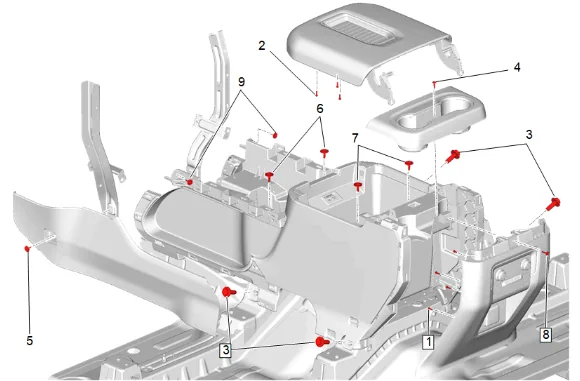

Fastener Specifications (3) — figure 3
Front Floor Console with D07
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Front Floor Compartment Bolt [4x] |
— |
— |
0.8 Y (7 lb in) |
Front Floor Rear Console Trim Plate Replacement |
|
|
2 |
Front Floor Console Armrest Bolt [3x] |
— |
— |
2.1 Y (19 lb in) |
Front Floor Console Armrest Latch Replacement |
|
|
3 |
Front Floor Console Bolt [4x] |
— |
— |
45 Y (33 lb ft) |
Front Floor Console Removal and Installation |
|
|
4 |
Front Floor Console Cup Holder Bolt |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Rear Cup Holder Replacement |
|
|
|
|
|
|
|
Front Floor Console Compartment Cooler Replacement |
|
|
5 |
Front Floor Console Extension Bolt |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Extension Panel Replacement - Left Side |
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 6 |
Front Floor Console Intermediate Bracket Bolt [2x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Removal and Installation |
| 7 |
Front Floor Console Rear Bracket Bolt [2x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Removal and Installation |
| 8 |
Front Floor Console Rear Cover Bolt |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Rear Trim Panel Replacement |
|
|
|
|
|
Front Floor Console Compartment Cooler Replacement |
| 9 |
Front Floor Console Retainer Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Removal and Installation |

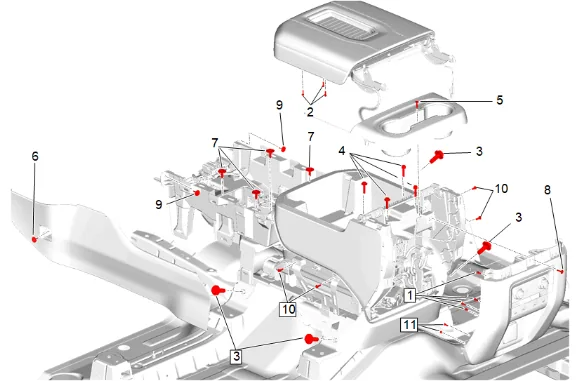

Fastener Specifications (3) — figure 4
Front Floor Console with DCH
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Front Floor Compartment Bolt [4x] |
— |
— |
0.8 Y (7 lb in) |
Front Floor Rear Console Trim Plate Replacement |
|
|
2 |
Front Floor Console Armrest Bolt [3x] |
— |
— |
2.1 Y (19 lb in) |
Front Floor Console Armrest Latch Replacement |
|
|
3 |
Front Floor Console Bolt [4x] |
— |
— |
45 Y (33 lb ft) |
Front Floor Console Removal and Installation |
|
|
4 |
Front Floor Console Bracket Bolt [4x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Compartment Replacement |
|
|
5 |
Front Floor Console Cup Holder Bolt |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Rear Cup Holder Replacement |
|
|
6 |
Front Floor Console Extension Bolt |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Extension Panel Replacement - Left Side |
|
|
7 |
Front Floor Console Intermediate Bracket Bolt [4x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Removal and Installation |
|
|
8 |
Front Floor Console Rear Cover Bolt |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Rear Trim Panel Replacement |
|
|
9 |
Front Floor Console Retainer Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Removal and Installation |
|
|
10 |
Front Floor Console Storage Tray Bolt [4x] |
— |
— |
2.2 Y (19 lb in) |
Front Floor Console Stowage Tray Replacement |
|
|
11 |
Front Floor Lower Console Bolt [2x] |
— |
— |
0.8 Y (7 lb in) |
Front Floor Console Opening Protector Replacement |
|
|
|
|
|
|
|
Front Floor Rear Console Trim Plate Replacement |
|
Fastener Specifications (3) — figure 5
Front Floor Console with DCK
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Front Floor Console Intermediate Bracket Bolt [2x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Compartment Cooler Replacement |
| 2 |
Front Floor Console Compartment Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Front Floor Console Compartment Cooler Replacement |
| 3 |
Front Floor Console Rear Bracket Bolt [3x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Compartment Cooler Replacement |
| 4 |
Front Floor Console Compartment Cooler Bolt [4x] |
— |
— |
9 Y (80 lb in) |
Front Floor Console Compartment Cooler Replacement |

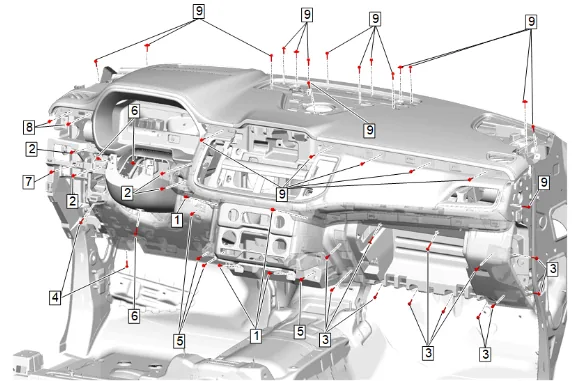

Fastener Specifications (3) — figure 6
Instrument Panel
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Instrument Panel Accessory Bezel Bolt [4x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Accessory Bezel Replacement |
| 2 |
Instrument Panel Cluster Trim Plate Bolt [4x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Cluster Trim Plate Replacement |
| 3 |
Instrument Panel Compartment Bolt [12x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Compartment Replacement |
| 4 |
Instrument Panel Knee Bolster Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Knee Bolster Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 5 |
Instrument Panel Lower Trim Panel Bolt [4x] |
— |
— |
1.5 Y (13 lb in) |
Instrument Panel Lower Trim Panel Replacement - Left Side |
|
|
|
|
|
Instrument Panel Lower Trim Panel Replacement - Right Side |
| 6 |
Instrument Panel Steering Column Lower Trim Cover Bolt [3x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Steering Column Lower Trim Cover Replacement |
| 7 |
Instrument Panel Switch Trim Plate Bolt |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Switch Trim Plate Replacement |
| 8 |
Instrument Panel Trim Pad Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Upper Trim Panel Replacement |
| 9 |
Instrument Panel Upper Trim Panel Bolt [15x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Upper Trim Panel Replacement |
|
|
|
|
|
Instrument Panel Trim Pad Replacement - Right Side |
Fastener Specifications (3) — figure 7

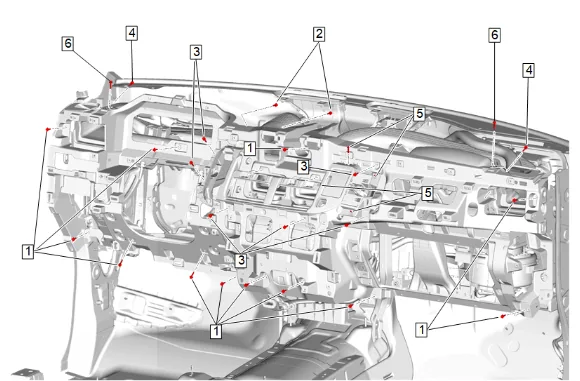

Instrument Panel Carrier
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Instrument Panel Carrier Bolt [12x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Carrier Replacement |
| 2 |
Instrument Panel Center Air Outlet Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Carrier Replacement |
| 3 |
Instrument Panel Center Trim Panel Bolt [6x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Transmission Shift Opening Cover Replacement |
| 4 |
Instrument Panel Outer Air Outlet Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Carrier Replacement |
| 5 |
Instrument Panel Upper Compartment Bolt [4x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Carrier Replacement |
| 6 |
Side Window Defogger Outlet Duct Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Carrier Replacement |

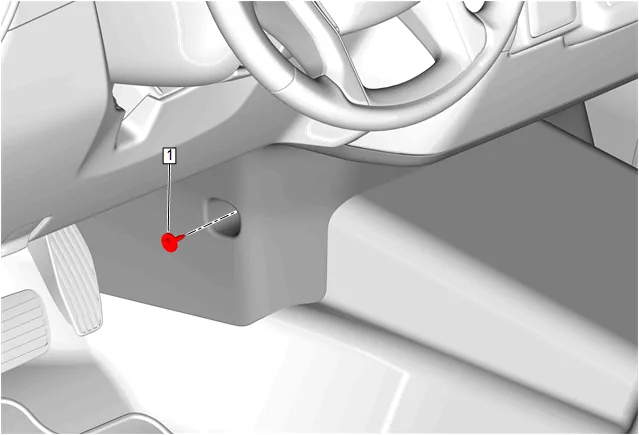

Fastener Specifications (3) — figure 8
Instrument Panel Lower Center Trim Panel
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Instrument Panel Lower Trim Panel Bolt |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Lower Center Trim Panel Replacement |

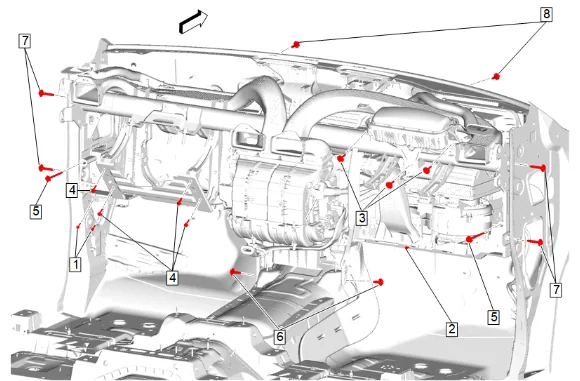

Fastener Specifications (3) — figure 9
Instrument Panel Tie Bar
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Data Link Connector Bolt |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Tie Bar Replacement |
|
|
2 |
Heater and Air Conditioning Evaporator and Blower Module Bolt @ Air Conditioning Evaporator Case |
— |
— |
2.5 Y (22 lb in) |
Instrument Panel Tie Bar Replacement |
|
|
3 |
Instrument Panel Airbag Bolt [3x] |
— |
— |
9 Y (80 lb in) |
Instrument Panel Upper Trim Panel Replacement |
|
|
4 |
Instrument Panel Driver Knee Bolster Brace Bolt [4x] |
— |
— |
9 Y (80 lb in) |
Instrument Panel Knee Bolster Deflector Replacement |
|
|
5 |
Instrument Panel Tie Bar Bolt [2x] |
— |
— |
9 Y (80 lb in) |
Instrument Panel Tie Bar Replacement |
|
|
6 |
Instrument Panel Tie Bar Bolt @ Floor |
— |
— |
22 Y (16 lb ft) |
Instrument Panel Tie Bar Replacement |
|
|
|
© |
2023 Gen |
eral Motor |
s. All rights reserved. |
|
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
|
Panel Tunnel Panel [2x] |
|
|
|
|
| 7 |
Instrument Panel Tie Bar Bolt @ Front Side Door [4x] |
— |
— |
22 Y (16 lb ft) |
Instrument Panel Tie Bar Replacement |
| 8 |
Instrument Panel Tie Bar Bolt @ Plenum Lower Panel [2x] |
— |
— |
22 Y (16 lb ft) |
Instrument Panel Tie Bar Replacement |

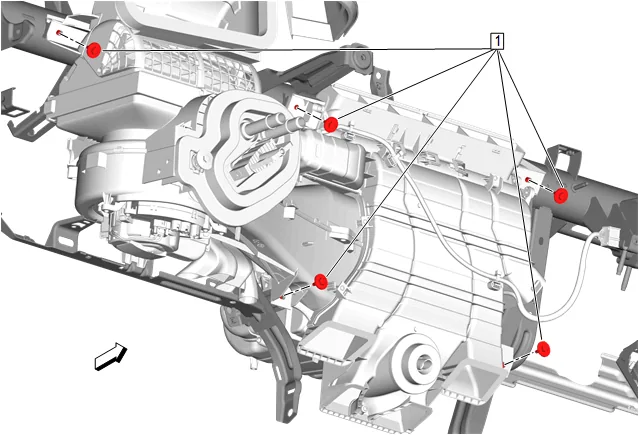

Fastener Specifications (3) — figure 10
Instrument Panel Tie Bar - Inboard
|
Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
|
|
e nent d Metric (English) |
|
|
|
1 |
Heater and Air Conditioning Evaporator and Blower Module Bolt @ Heater and Air Conditioning |
— |
— |
9 Y (80 lb in) |
Instrument Panel Tie Bar Replacement |
|
|
|
© |
2023 Gen |
eral Motor |
s. All rights reserved. |
|
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
|
Evaporator and Blower Module [5x] |
|
|
|
|

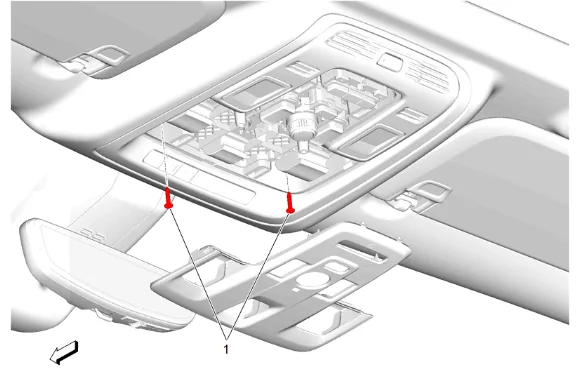

Fastener Specifications (3) — figure 11
Roof Console
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Roof Console Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Roof Console Replacement |
Fastener Specifications (3) — figure 12
Theft Intrusion Bracket
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Roof Console Bracket Bolt [2x] |
— |
— |
4.5 Y (40 lb in) |
Roof Console Replacement |
| 2 |
Roof Console Bracket Bolt [2x] |
— |
— |
2.4 Y (21 lb in) |
Roof Console Replacement |
