Air Conditioning Refrigerant Pressure Sensor Replacement (LM2)

Air Conditioning Refrigerant Pressure Sensor Replacement (LM2) Single Use Fasteners and Components Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal Removal Procedure

1. Front Wheelhouse Liner - Left Side » Remove — Front Wheelhouse Liner Replacement

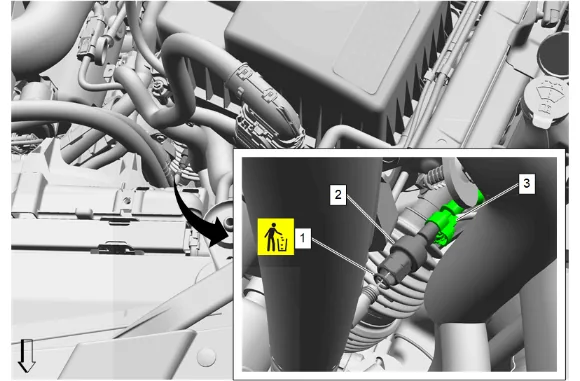

Air Conditioning Refrigerant Pressure Sensor Replacement (LM2) — figure 1

2. Disconnect the electrical connector. (3)
3. Air Conditioning Refrigerant Pressure Sensor (2) » Remove
4. Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal (1) » Remove and DISCARD Installation Procedure

Caution

New Air Conditioning sealing washers should never be exposed to any type of oil or lubricant, the rubber material may absorb the oil causing failures during installation or the life of the vehicle.

1. Air Conditioning Cycling and Fan Control Air Conditioning Refrigerant Pressure Sensor Seal (1) » Install NEW

Caution

Refer to Component Fastener Tightening Caution.

2. Air Conditioning Refrigerant Pressure Sensor (2) » Install and tighten — Fastener Specifications
3. Connect the electrical connector. (3)
4. Front Wheelhouse Liner - Left Side » Install — Front Wheelhouse Liner Replacement
