Tahoe / Yukon Service Manual

Image Processing Module Replacement

Removal Procedure

Image Processing Module Replacement — figure 1
Image Processing Module Replacement — figure 1

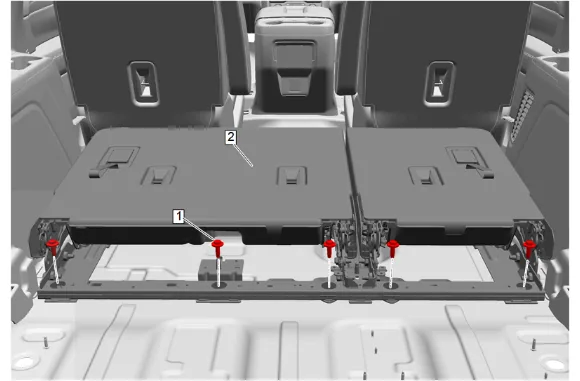

  1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
  2. Disable the SIR system. SIR Disabling and Enabling
Image Processing Module Replacement — figure 2
Image Processing Module Replacement — figure 2

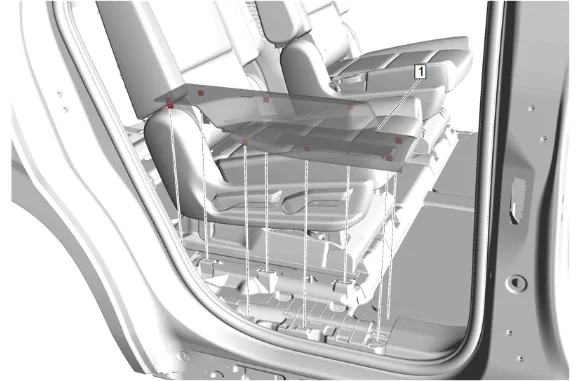

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear Side Door Sill Garnish Molding (1) » Remove
Image Processing Module Replacement — figure 3
Image Processing Module Replacement — figure 3

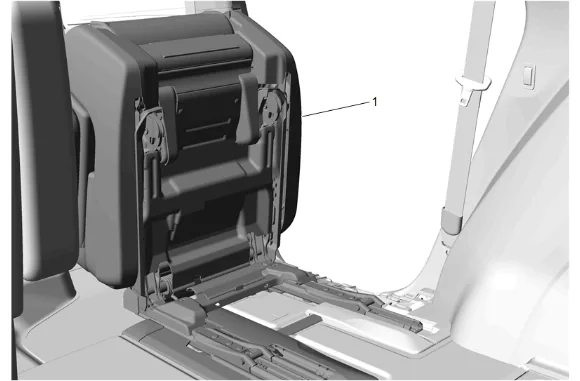

  1. Place the rear seat (1) in the fold and tumble position.
Image Processing Module Replacement — figure 4
Image Processing Module Replacement — figure 4

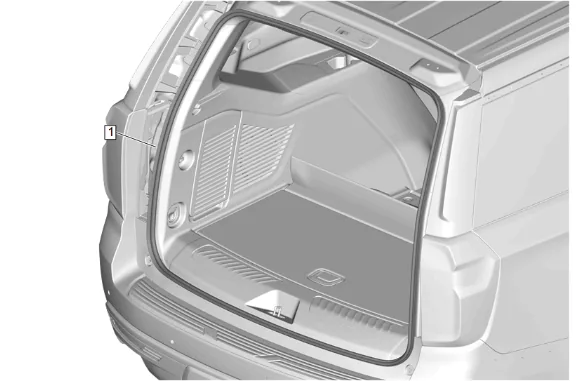

  1. Liftgate Weatherstrip (1) » Reposition
Image Processing Module Replacement — figure 5
Image Processing Module Replacement — figure 5
  1. Liftgate Lock Striker Cover (1) » Remove

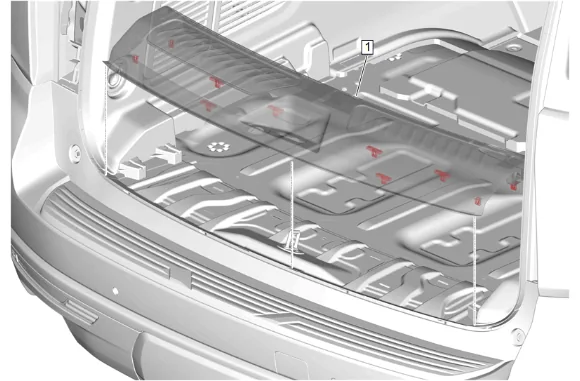

Image Processing Module Replacement — figure 6
Image Processing Module Replacement — figure 6
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Rear End Trim Finish Panel (1) » Remove
Image Processing Module Replacement — figure 7
Image Processing Module Replacement — figure 7
  1. Rear Seat Belt Retractor Sleeve (1) » Reposition
  2. Rear Seat Belt Anchor Plate Bolt (2) » Remove
Image Processing Module Replacement — figure 8
Image Processing Module Replacement — figure 8
  1. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
  2. Quarter Window Trim Finish Panel Bolt (2) » Reposition
Image Processing Module Replacement — figure 9
Image Processing Module Replacement — figure 9
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Lock Pillar Upper Trim Panel (1) » Reposition
Image Processing Module Replacement — figure 10
Image Processing Module Replacement — figure 10
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Side Rear Window Garnish Molding (1) » Reposition
Image Processing Module Replacement — figure 11
Image Processing Module Replacement — figure 11
  1. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove
Image Processing Module Replacement — figure 12
Image Processing Module Replacement — figure 12
  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Body Rear Corner Upper Garnish Molding (1) » Reposition
Image Processing Module Replacement — figure 13
Image Processing Module Replacement — figure 13

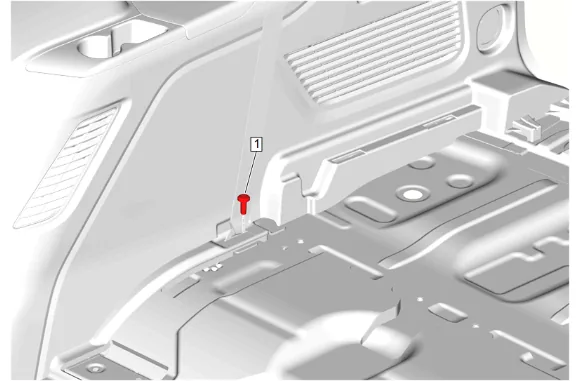

  1. 3rd Row Seat Belt Retractor Bolt - Lower (1) » Remove
Image Processing Module Replacement — figure 14
Image Processing Module Replacement — figure 14

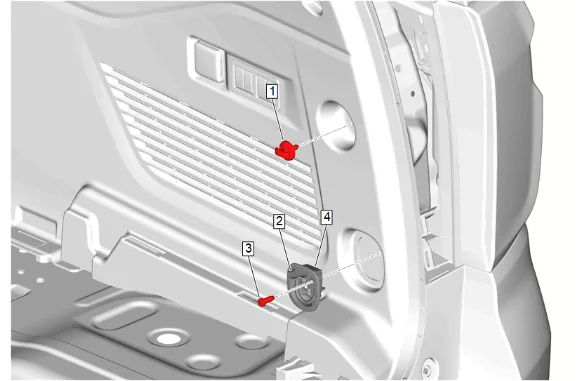

  1. Convenience Net Retainer (1) » Remove
  2. Cargo Tie Down Loop Bolt Cap (2) » Open
  3. Cargo Tie Down Loop Bolt (3) » Remove
  4. Cargo Tie Down Loop (4) » Remove
Image Processing Module Replacement — figure 15
Image Processing Module Replacement — figure 15

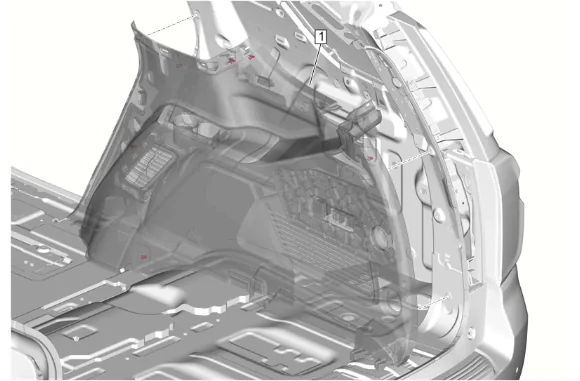

  1. Using a flat-bladed plastic trim tool, release the retaining clips.
  2. Quarter Lower Rear Trim Panel (1) » Reposition
  3. Remove the wiring harness retainers, as needed.
Image Processing Module Replacement — figure 16
Image Processing Module Replacement — figure 16

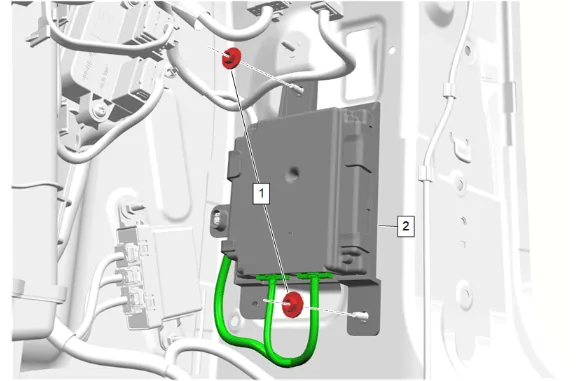

  1. Disconnect the electrical connectors.
  2. Active Safety Control Module Bracket Nut (1) » Remove [2x]
  3. Active Safety Control Module Bracket (2) » Remove
  4. Remove the wiring harness retainers
Image Processing Module Replacement — figure 17
Image Processing Module Replacement — figure 17

  1. Release the retaining tab.

  2. Image Processing Module (1) » Remove Installation Procedure

  3. Image Processing Module (1) » Install

  4. Secure the retaining tab.

  5. Install wiring harness retainers

  6. Active Safety Control Module Bracket (2) » Install

  1. Active Safety Control Module Bracket Nut (1) » Install and tighten [2x] — Fastener Specifications

  2. Connect the electrical connectors.

  3. Install the wiring harness retainers, as needed.

  4. Quarter Lower Rear Trim Panel (1) » Install

  5. Cargo Tie Down Loop (4) » Install

  6. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

  7. Cargo Tie Down Loop Bolt Cap (2) » Close

  8. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

  9. 3rd Row Seat Belt Retractor Bolt - Lower (1) » Install and tighten — Fastener Specifications

  10. Body Rear Corner Upper Garnish Molding (1) » Install

  11. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

  12. Body Side Rear Window Garnish Molding (1) » Install

  13. Body Lock Pillar Upper Trim Panel (1) » Install

  14. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

  15. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

  16. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

  17. Rear Seat Belt Retractor Sleeve (1) » Reposition

  18. Rear End Trim Finish Panel (1) » Install

  19. Liftgate Lock Striker Cover (1) » Install

  20. Liftgate Weatherstrip (1) » Reposition

  21. Return the rear seat (1) to the original position.

  22. Rear Side Door Sill Garnish Molding (1) » Install

  23. Enable the SIR System. SIR Disabling and Enabling

  24. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation

  25. Perform the necessary programming and setup procedure: Control Module References
