Rear Seat Recliner Inner Finish Cover Replacement - Outboard

Rear Seat Recliner Inner Finish Cover Replacement - Outboard Removal Procedure

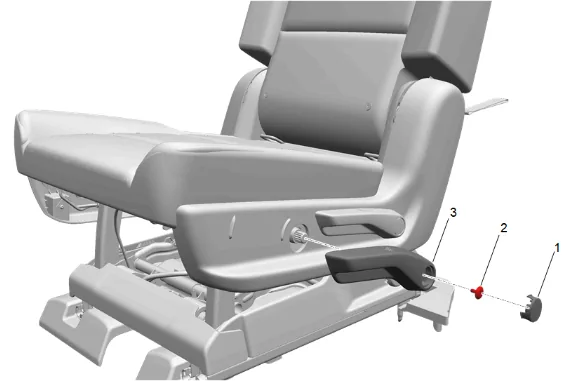

Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 1
Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 1
  1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
  2. Rear Seat Riser Bolt (2) » Remove
  3. Rear Seat Adjuster Handle (3) » Remove
Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 2
Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 2
  1. Rear Seat Recliner Handle Bolt Cap (1) » Remove
  2. Rear Seat Riser Bolt (2) » Remove
  3. Rear Seat Recliner Handle (3) » Remove

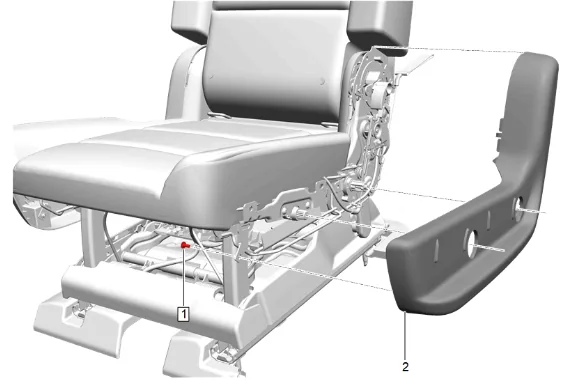

Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 3
Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 3
  1. Front Seat Bolt (1) » Remove
  2. Using a suitable plastic trim tool, release the retaining tabs.
  3. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Remove

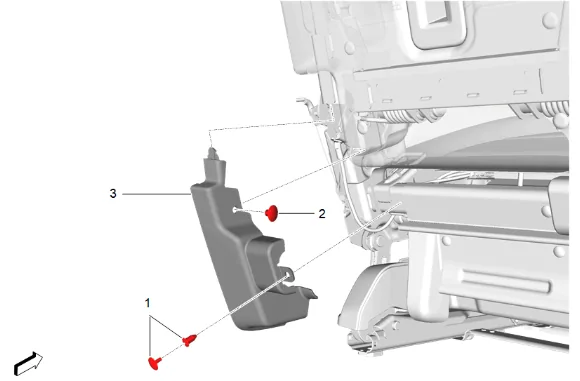

Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 4
Rear Seat Recliner Inner Finish Cover Replacement - Outboard — figure 4

  1. Release the J-channel retainers from the rear seat cushion cover and rear seat cushion trim panel.

  2. Reposition the rear of the rear seat cushion cover and pad as necessary.

  3. Rear Seat Riser Finish Cover Retainer (1) » Remove

  4. Rear Seat Back Cover Retainer (2) » Remove

  5. Rear Seat Recliner Inner Finish Cover (3) » Remove Installation Procedure

  6. Rear Seat Recliner Inner Finish Cover (3) » Install

  7. Rear Seat Back Cover Retainer (2) » Install

  8. Rear Seat Riser Finish Cover Retainer (1) » Install

  9. Position the rear of the rear seat cushion cover and pad to the original location.

  10. Secure the J-channel retainers of the rear seat cushion cover and rear seat cushion trim panel.

  11. Rear Seat Recliner Outer Finish Cover - Outboard (2) » Install

  1. Front Seat Bolt (1) » Install and tighten — Fastener Specifications

  2. Rear Seat Recliner Handle (3) » Install

  3. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

  4. Rear Seat Recliner Handle Bolt Cap (1) » Install

  5. Rear Seat Adjuster Handle (3) » Install

  6. Rear Seat Riser Bolt (2) » Install and tighten — Fastener Specifications

  7. Rear Seat Recliner Handle Bolt Cap (1) » Install
