Table 1:
Front Power Seats
Table 2:
Rear Power Seats
Table 3:
3rd Row Power Seats

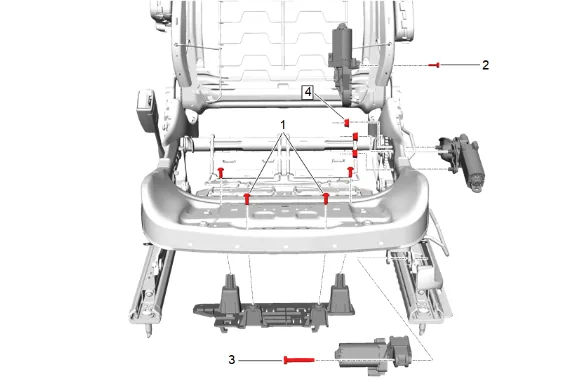

Fastener Specifications — figure 1
Front Power Seats
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Front Seat Adjuster Memory Module Bolt [4x] |
— |
— |
1 Y (9 lb in) |
Front Seat Adjuster Memory Module Bracket Replacement |
| 2 |
Front Seat Recliner Actuator Motor Bolt |
— |
— |
6 Y (53 lb in) |
Front Seat Recliner Actuator Replacement |
| 3 |
Front Seat Tilt Adjuster Actuator Bolt |
— |
— |
8 Y(71 lb in) |
Front Seat Tilt Adjuster Actuator Replacement |
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 4 |
Front Seat Vertical Adjuster Actuator Nut [3x] |
— |
— |
Front Seat Vertical Adjuster Actuator Nut Sequence |
Front Seat Vertical Adjuster Actuator Replacement |

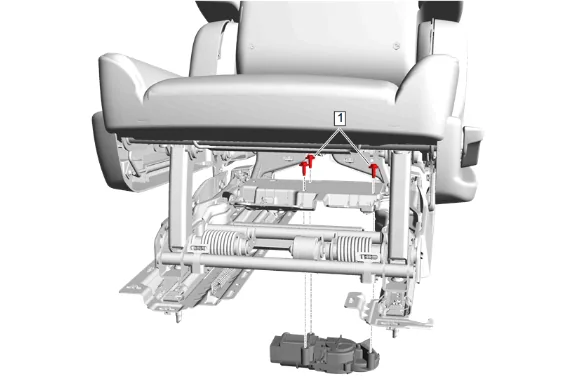

Fastener Specifications — figure 2
Rear Power Seats
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Rear Seat Riser Bolt [3x] |
— |
— |
3.5 Y (31 lb in) |
Folding Rear Seat Back Actuator Replacement |

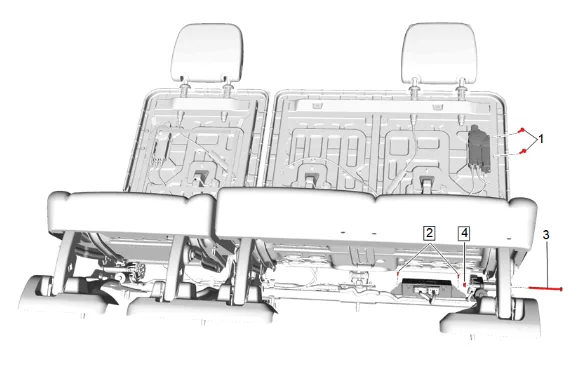

Fastener Specifications — figure 3
3rd Row Power Seats
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Folding 3rd Row Seat Back Actuator Bolt [2x] |
— |
— |
7.5 Y (66 lb in) |
Folding 3rd Row Seat Back Actuator Replacement |
| 2 |
Folding 3rd Row Seat Module Bolt [2x] |
— |
— |
2.5 Y (22 lb in) |
Folding 3rd Row Seat Module Replacement |
| 3 |
3rd Row Seat Back Pivot Actuator Motor Bolt |
— |
— |
— |
3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion |
| 4 |
3rd Row Seat Back Pivot Actuator Motor Nut |
— |
— |
6 Y (53 lb in) |
3rd Row Seat Back Pivot Actuator Motor Replacement - Back Cushion |

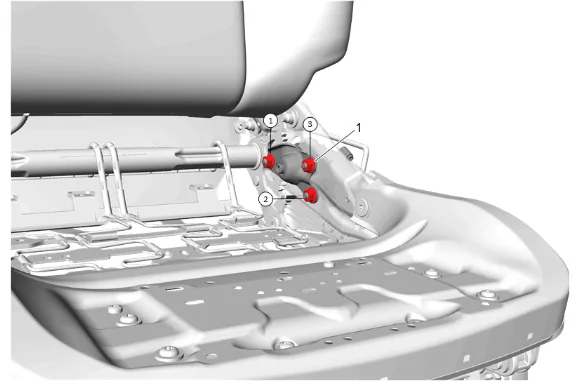

| Front Seat Vertical Adjuster Actuator Nut Sequence |
|
|
|
|
|
| Callou |
Component Name [Component t Quantity] |
Single Use Fastene |
Thread Locking Adhesiv r/Compo Require |
Specification |
Procedure |
|
|
|
|
e nent d Metric (English) |
|
| 1 |
Front Seat Vertical Adjuster Actuator Nut [3x] |
— |
— |
23 Y (17 lb ft) |
Front Seat Vertical Adjuster Actuator Replacement |
Fastener Specifications — figure 4
