3rd Row Seat Back Latch Release Handle Replacement (60 Percent)

3rd Row Seat Back Latch Release Handle Replacement (60 Percent) Removal Procedure

3rd Row Seat Back Latch Release Handle Replacement (60 Percent) — figure 1

1. 3rd Row Seat Back Cover and Pad (1) » Remove — 3rd Row Seat Back Cover and Pad Removal and Installation

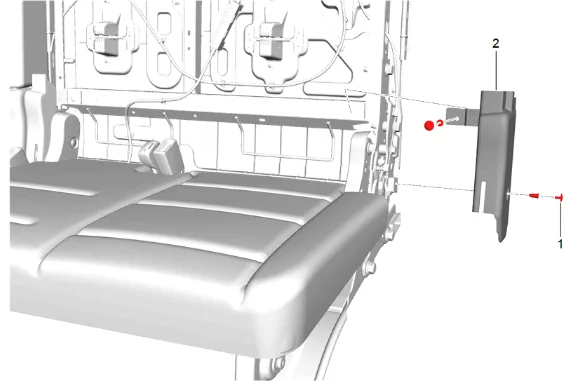

3rd Row Seat Back Latch Release Handle Replacement (60 Percent) — figure 2

2. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
3. 3rd Row Seat Hinge Finish Cover - Outer (2) » Remove

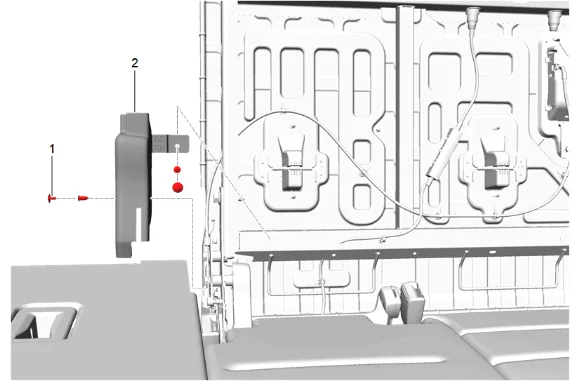

3rd Row Seat Back Latch Release Handle Replacement (60 Percent) — figure 3

4. 3rd Row Seat Hinge Finish Cover Pin (1) » Remove [2x]
5. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Remove

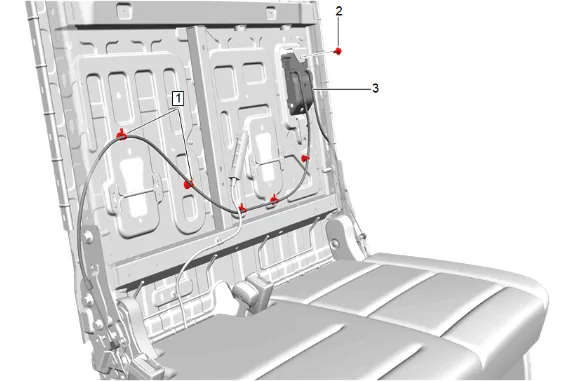

3rd Row Seat Back Latch Release Handle Replacement (60 Percent) — figure 4

6. Disconnect both 3rd row seat back latch release handle cable ends from the seat back latch.

7. Release the cable retainers (1) from the seat back frame.

8. Rear Seat Bolt (2) » Remove

9. 3rd Row Seat Back Latch Release Handle (3) » Remove Installation Procedure

10. 3rd Row Seat Back Latch Release Handle (3) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Bolt (2) » Install and tighten — Fastener Specifications

3. Install the cable retainers (1) to the seat back frame.

4. Connect both 3rd row seat back latch release handle cable ends to the seat back latch.

5. 3rd Row Seat Hinge Finish Inner Cover - Inner (2) » Install

6. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

7. 3rd Row Seat Hinge Finish Cover - Outer (2) » Install

8. 3rd Row Seat Hinge Finish Cover Pin (1) » Install [2x]

9. 3rd Row Seat Back Cover and Pad (1) » Install — 3rd Row Seat Back Cover and Pad Removal and Installation
