Rear Suspension Lower Control Arm Replacement

Removal Procedure

1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

Rear Suspension Lower Control Arm Replacement — figure 1

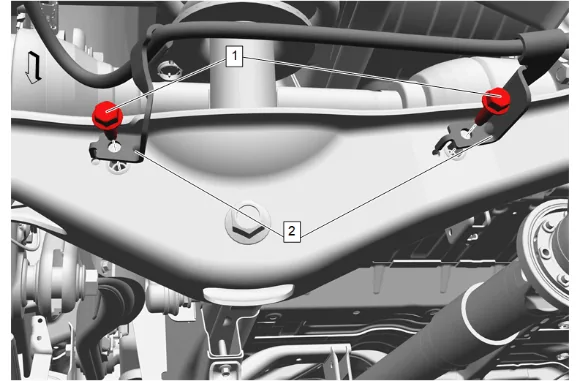

2. Rear Brake Hose Bracket Bolt (1) » Remove [2x]
3. Rear Brake Hose Bracket (2) » Remove [2x]

Rear Suspension Lower Control Arm Replacement — figure 2

Note

Using a suitable jack stand, support the rear suspension lower control arm.

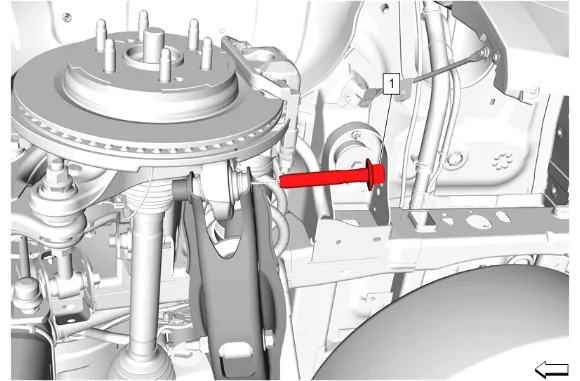

4. Rear Suspension Lower Control Arm Outer Bolt (1) » Remove

Rear Suspension Lower Control Arm Replacement — figure 3

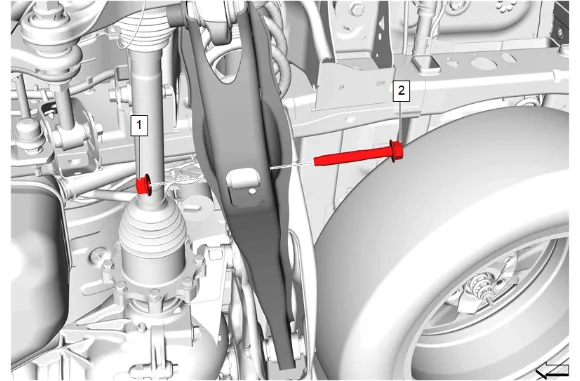

5. Rear Shock Absorber Nut (1) » Remove
6. Rear Shock Absorber Bolt (2) » Remove

Rear Suspension Lower Control Arm Replacement — figure 4

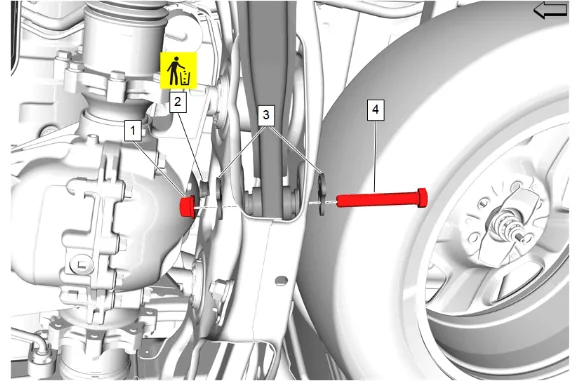

7. Rear Suspension Lower Control Arm Inner Nut (1) » Remove

Note

The rear lower control arm adjust cam retainer (1) is for factory alignment purposes only and should NOT be reused.

8. { If equipped } Rear Lower Control Arm Adjust Cam Retainer (2) » Remove and DISCARD
9. Rear Suspension Lower Control Arm Adjust Cam (3) » Remove [2x]
10. Rear Suspension Lower Control Arm Inner Bolt (4) » Remove

Rear Suspension Lower Control Arm Replacement — figure 5

11. Remove the jack stand from under the control arm.

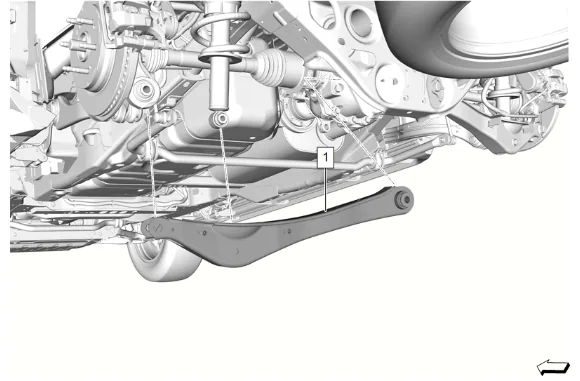

12. Rear Suspension Lower Control Arm (1) » Remove Installation Procedure

13. Rear Suspension Lower Control Arm (1) » Install

Rear Suspension Lower Control Arm Replacement — figure 6

Note

Using a suitable jack stand, support the rear suspension lower control arm.

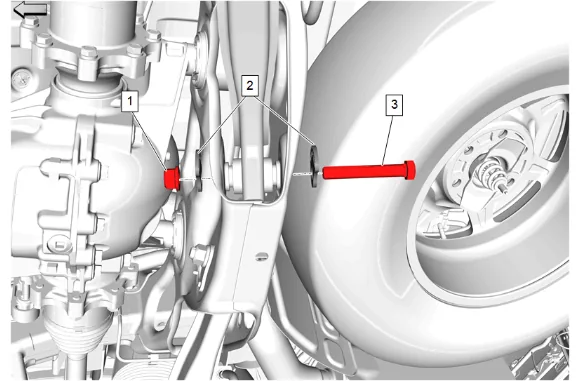

2. Rear Suspension Lower Control Arm Inner Bolt (3) » Install
3. Rear Suspension Lower Control Arm Adjust Cam (2) » Install [2x]

Note

The final torque on the rear suspension lower control arm inner nut (1) is to be applied during the rear camber setting procedure.

4. Rear Suspension Lower Control Arm Inner Nut (1) » Install and hand tighten

5. Rear Shock Absorber Bolt (2) » Install

6. Rear Shock Absorber Nut (1) » Install and tighten — Fastener Specifications

7. Rear Suspension Lower Control Arm Outer Bolt (1) » Install and tighten — Fastener Specifications

8. Remove the jack stand from under the rear suspension lower control arm.

9. Rear Brake Hose Bracket (2) » Install [2x]

10. Rear Brake Hose Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

11. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation

12. Verify the rear camber specifications and adjust as necessary. Rear Camber Adjustment
