Video Display Bracket Replacement

Removal Procedure

Front Seat Back Cover and Pad (1) » Remove — Front Seat Back Cover and Pad Removal and Installation

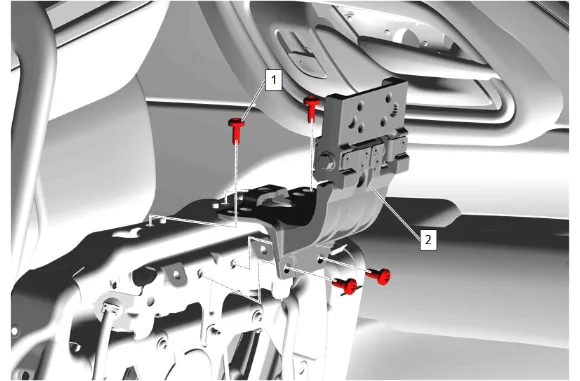

Front Seat Bolt (1) » Remove [4x]
Reposition the wiring harness.
Video Display Bracket (2) » Remove Installation Procedure
Video Display Bracket (2) » Install
Position the wiring harness.
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 3.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 3.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 3.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 3.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

Front Seat Bolt (1) » Install and tighten [4x] — Fastener Specifications
Front Seat Back Upper Support (2) » Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 6.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 6.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 6.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 6.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
Front Seat Bolt (1) » Install and tighten [2x] — Fastener Specifications
Front Seat Back Cover and Pad (1) » Install — Front Seat Back Cover and Pad Removal and Installation
