Tahoe / Yukon Service Manual

Delphi Connectors (Steering Gear)

Wiring Systems and Power Management | Diagnostic Information and Procedures | Document ID: 5207176 Removal Procedure

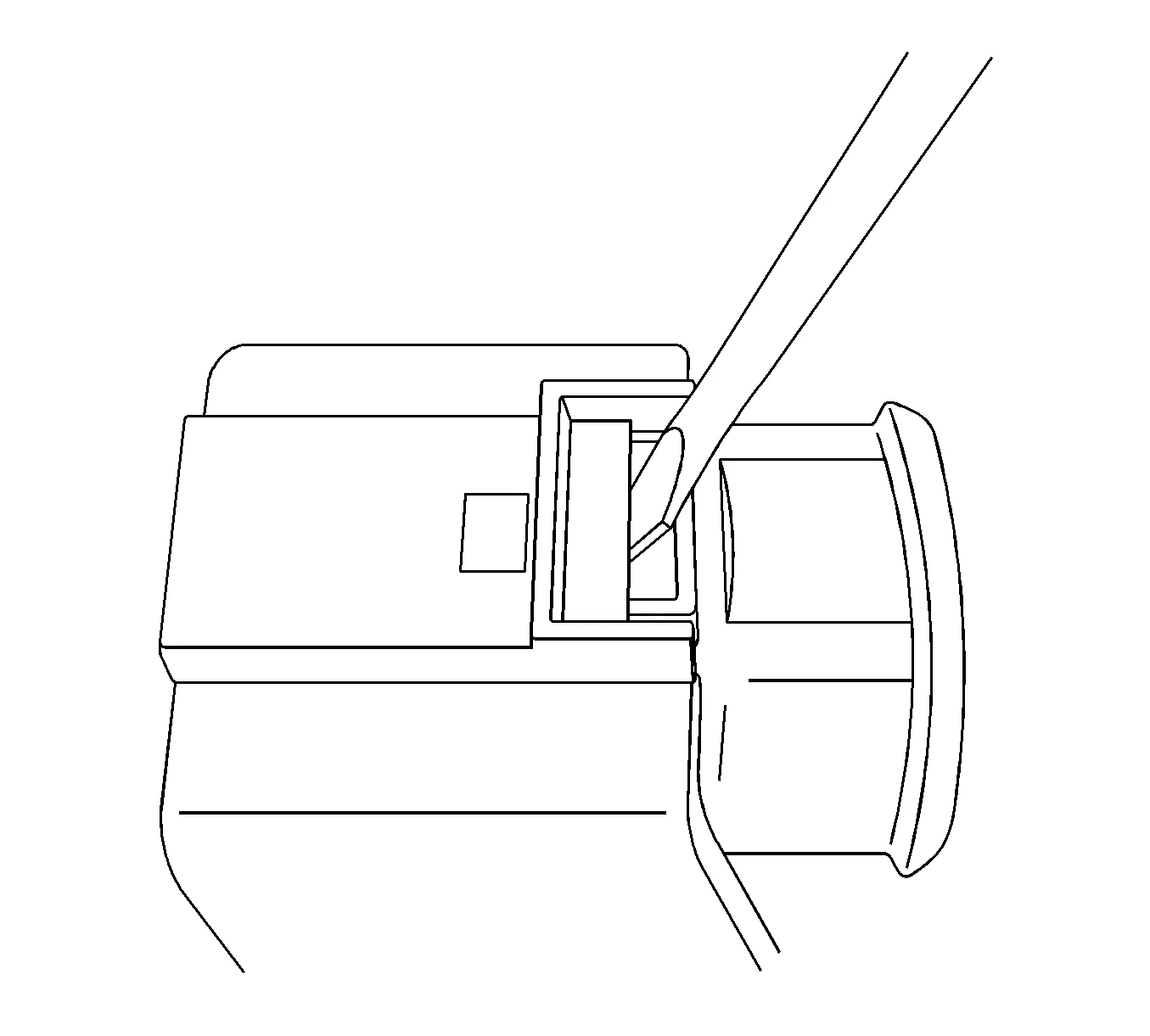

Delphi Connectors (Steering Gear) — figure 1
Delphi Connectors (Steering Gear) — figure 1
  1. Use a small flat-bladed tool to release the locking tab on the connector.

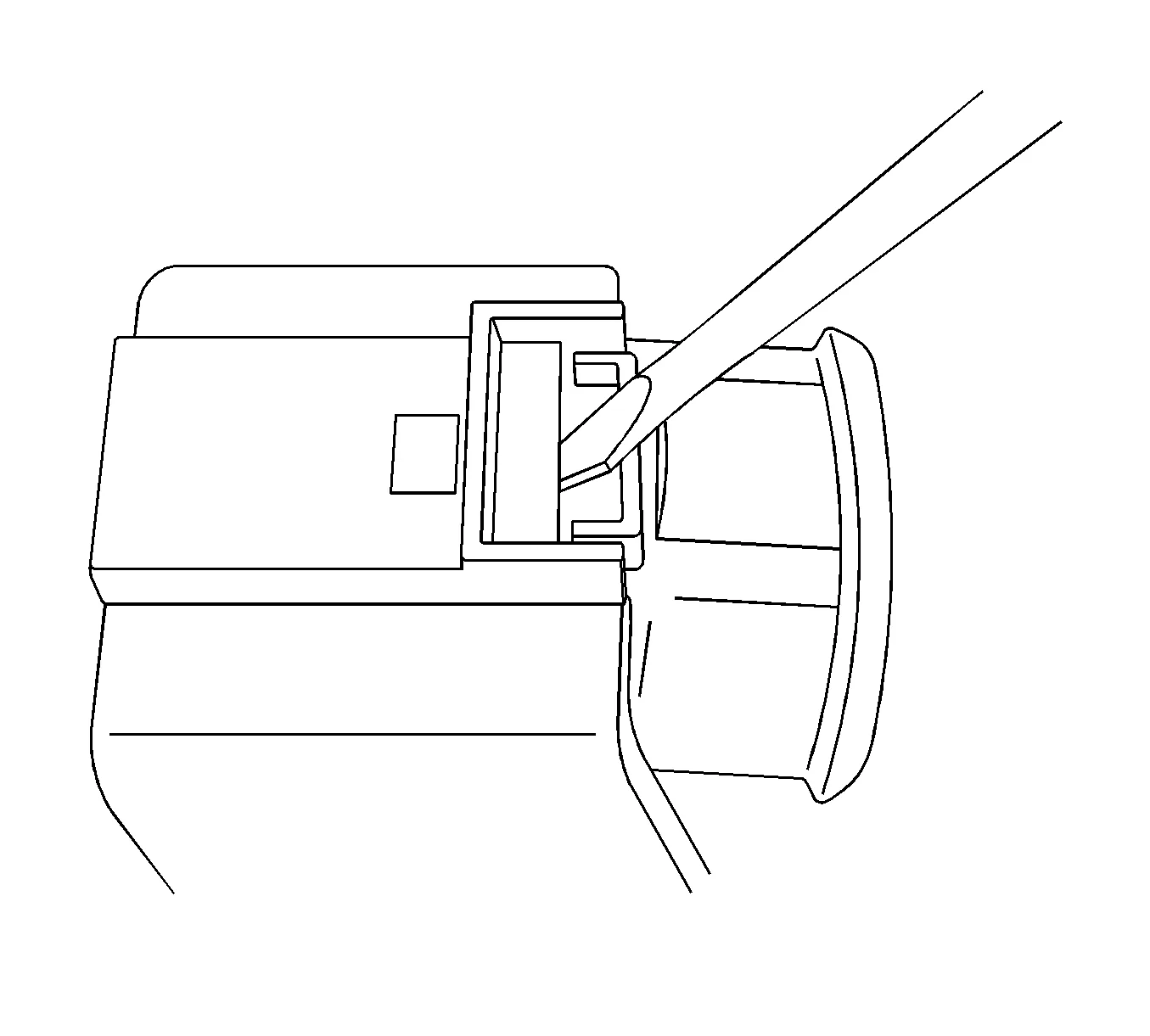

Delphi Connectors (Steering Gear) — figure 2
Delphi Connectors (Steering Gear) — figure 2
  1. Push down the locking tab to release the connector. The small flat-bladed tool may need to be pushed down and angled back slightly to depress the locking tab. Pull on the connector body while releasing the locking tab to disconnect the connector.
