3rd Row Seat Belt Retractor Replacement - Left Side

Warning

Refer to SIR Warning.

Warning

Refer to SIR Inflator Module Handling and Storage Warning.

Caution

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. Removal Procedure

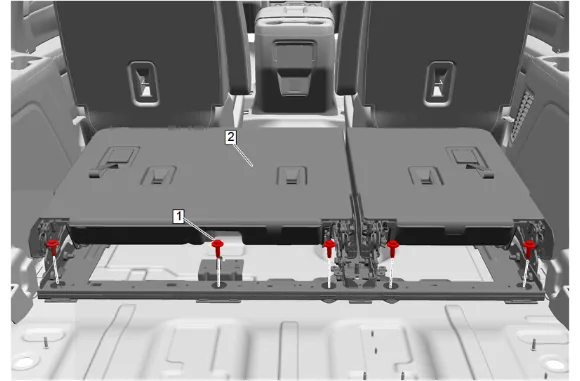

3rd Row Seat Belt Retractor Replacement - Left Side — figure 1

1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation
2. Disable the SIR system. SIR Disabling and Enabling

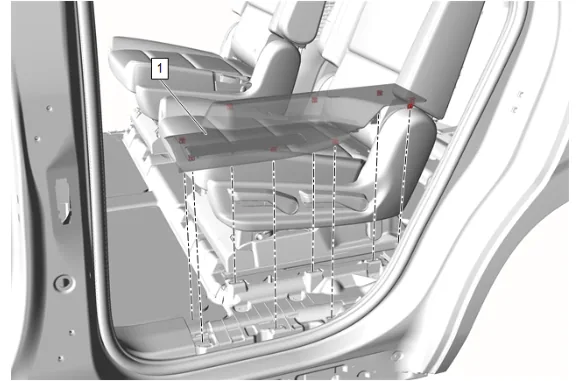

3rd Row Seat Belt Retractor Replacement - Left Side — figure 2

3. Using a flat-bladed plastic trim tool, release the retaining clips.
4. Rear Side Door Sill Garnish Molding (1) » Remove

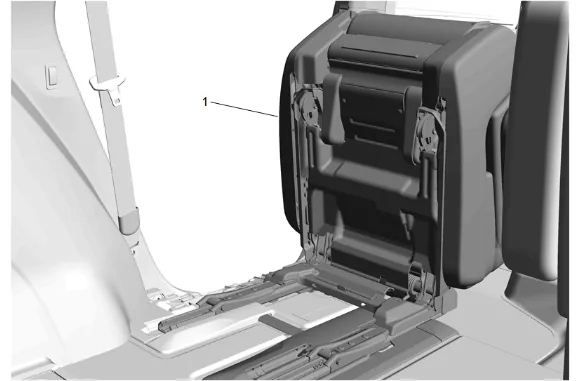

3rd Row Seat Belt Retractor Replacement - Left Side — figure 3

5. Place the rear seat (1) in the fold and tumble position.

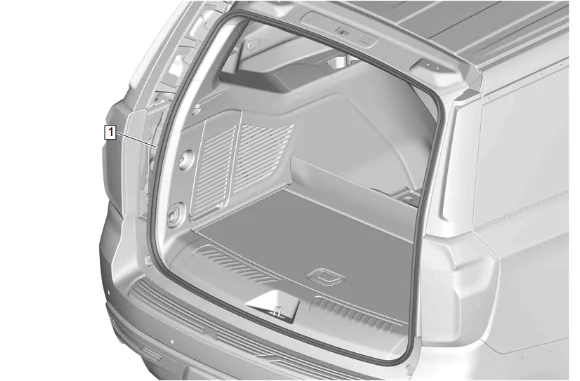

3rd Row Seat Belt Retractor Replacement - Left Side — figure 4

6. Liftgate Weatherstrip (1) » Reposition

3rd Row Seat Belt Retractor Replacement - Left Side — figure 5

7. Liftgate Lock Striker Cover (1) » Remove

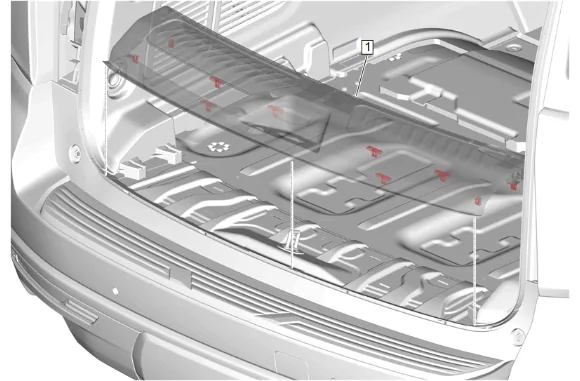

3rd Row Seat Belt Retractor Replacement - Left Side — figure 6

8. Using a flat-bladed plastic trim tool, release the retaining clips.
9. Rear End Trim Finish Panel (1) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 7

10. Rear Seat Belt Retractor Sleeve (1) » Reposition
11. Rear Seat Belt Anchor Plate Bolt (2) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 8

12. Rear Seat Belt Opening Bezel (1) » Disengage

3rd Row Seat Belt Retractor Replacement - Left Side — figure 9

13. Quarter Window Trim Finish Panel Bolt Cap (1) » Remove
14. Quarter Window Trim Finish Panel Bolt (2) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 10

15. Using a flat-bladed plastic trim tool, release the retaining clips.

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

16. Body Lock Pillar Upper Trim Panel (1) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 11

17. Using a flat-bladed plastic trim tool, release the retaining clips.
18. Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.

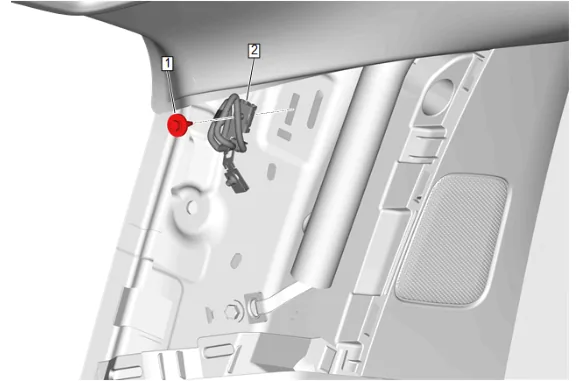

3rd Row Seat Belt Retractor Replacement - Left Side — figure 12

19. Body Side Rear Window Garnish Molding Bolt (1) » Remove
20. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 13

21. Body Rear Corner Upper Garnish Molding Bolt (1) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 14

22. Using a flat-bladed plastic trim tool, release the retaining clips.
23. Body Rear Corner Upper Garnish Molding (1) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 15

24. Electrical Connector (1) » Disconnect
25. Wiring Harness Retainer (2) » Remove

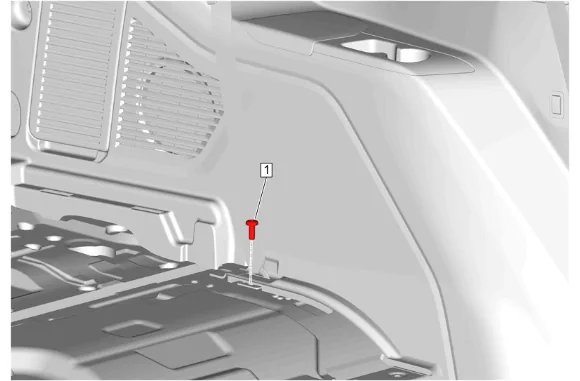

3rd Row Seat Belt Retractor Replacement - Left Side — figure 16

26. 3rd Row Seat Belt Anchor Bolt (1) » Remove

3rd Row Seat Belt Retractor Replacement - Left Side — figure 17

27. Using a flat-bladed plastic trim tool, release the retaining clips.
28. Rear Seat Belt Opening Bezel (1) » Remove

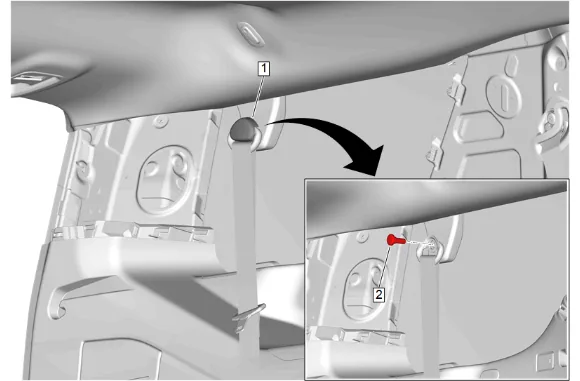

3rd Row Seat Belt Retractor Replacement - Left Side — figure 18

29. 3rd Row Seat Belt Retractor Anchor Cover (1) » Open
30. 3rd Row Seat Belt Guide Bolt (2) » Remove

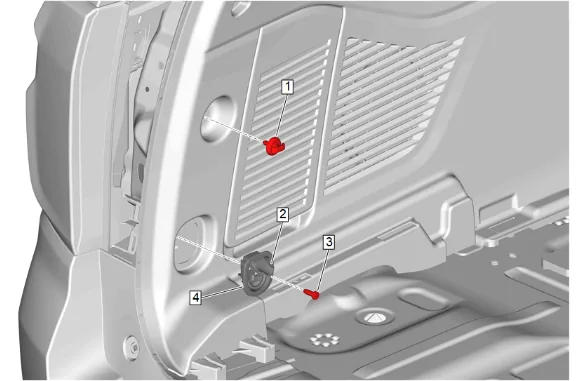

3rd Row Seat Belt Retractor Replacement - Left Side — figure 19

31. Convenience Net Retainer (1) » Remove
32. Cargo Tie Down Loop Bolt Cap (2) » Open
33. Cargo Tie Down Loop Bolt (3) » Remove
34. Cargo Tie Down Loop (4) » Remove

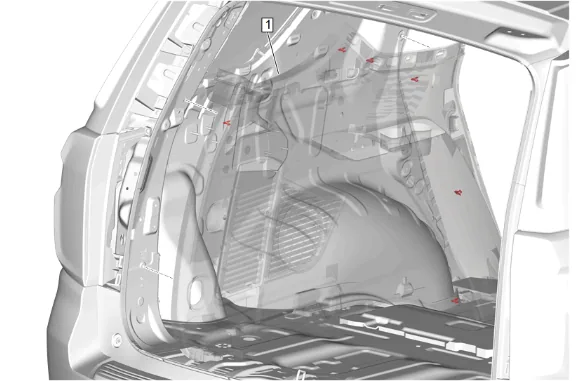

3rd Row Seat Belt Retractor Replacement - Left Side — figure 20

35. Using a flat-bladed plastic trim tool, release the retaining clips.
36. If equipped, disconnect the electrical connectors and wiring harness retainers.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

37. Quarter Lower Rear Trim Panel (1) » Remove

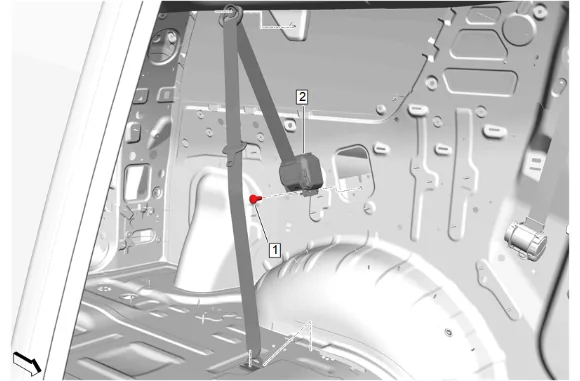

3rd Row Seat Belt Retractor Replacement - Left Side — figure 21

38. 3rd Row Seat Belt Retractor Bolt (1) » Remove

39. 3rd Row Seat Belt Retractor (2) » Remove Installation Procedure

40. 3rd Row Seat Belt Retractor (2) » Install

Caution

Refer to Fastener Caution.

2. 3rd Row Seat Belt Retractor Bolt (1) » Install and tighten — Fastener Specifications

3. If equipped, connect the electrical connectors and wiring harness retainers.

Note

Feed the rear seat belt opening bezel and 3rd row seat belt through the quarter lower rear trim panel.

4. Quarter Lower Rear Trim Panel (1) » Install

5. Cargo Tie Down Loop (4) » Install

6. Cargo Tie Down Loop Bolt (3) » Install and tighten — Fastener Specifications

7. Cargo Tie Down Loop Bolt Cap (2) » Close

8. Convenience Net Retainer (1) » Install and tighten — Fastener Specifications

9. 3rd Row Seat Belt Guide Bolt (2) » Install and tighten — Fastener Specifications

10. 3rd Row Seat Belt Retractor Anchor Cover (1) » Close

11. Rear Seat Belt Opening Bezel (1) » Install

12. 3rd Row Seat Belt Anchor Bolt (1) » Install and tighten — Fastener Specifications

13. Wiring Harness Retainer (2) » Install

14. Electrical Connector (1) » Connect

15. Body Rear Corner Upper Garnish Molding (1) » Install

16. Body Rear Corner Upper Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

17. Body Side Rear Window Garnish Molding Tether Retaining Clip (2) » Install

18. Body Side Rear Window Garnish Molding Bolt (1) » Install and tighten — Fastener Specifications

Note

Position the body side rear window garnish molding tether in the same position as before the molding removal.

19. Body Side Rear Window Garnish Molding (1) » Install

Note

Feed the rear seat belt opening bezel and rear seat belt through the body lock upper trim panel.

20. Body Lock Pillar Upper Trim Panel (1) » Install

21. Quarter Window Trim Finish Panel Bolt (2) » Install and tighten — Fastener Specifications

22. Quarter Window Trim Finish Panel Bolt Cap (1) » Install

23. Rear Seat Belt Opening Bezel (1) » Install

24. Rear Seat Belt Retractor Anchor Plate Bolt (2) » Install and tighten — Fastener Specifications

25. Rear Seat Belt Retractor Sleeve (1) » Reposition

26. Rear End Trim Finish Panel (1) » Install

27. Liftgate Lock Striker Cover (1) » Install

28. Liftgate Weatherstrip (1) » Reposition

29. Return the rear seat (1) to the original position.

30. Rear Side Door Sill Garnish Molding (1) » Install

31. Enable the SIR System. SIR Disabling and Enabling

32. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation
