Spare Wheel Hoist Replacement

Removal Procedure

1. Rear Bumper Fascia » Remove — Rear Bumper Fascia Removal and Installation

Spare Wheel Hoist Replacement — figure 1

2. Spare Wheel Hoist Lock Cylinder (1) » Remove
3. Spare Wheel » Remove

Spare Wheel Hoist Replacement — figure 2

4. Release the tabs (1) on the spare wheel lock cylinder case to remove it from the rear bumper impact bar.

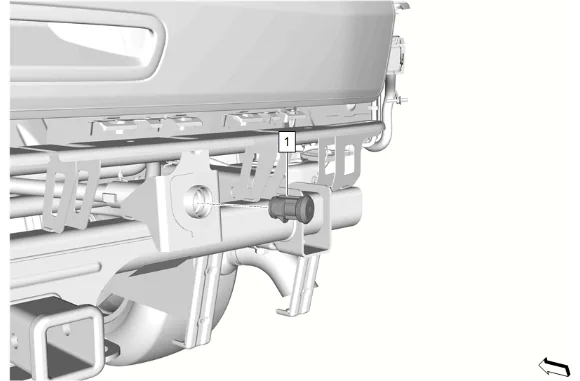

5. Spare Wheel Lock Cylinder Case (2) » Remove

Spare Wheel Hoist Replacement — figure 3

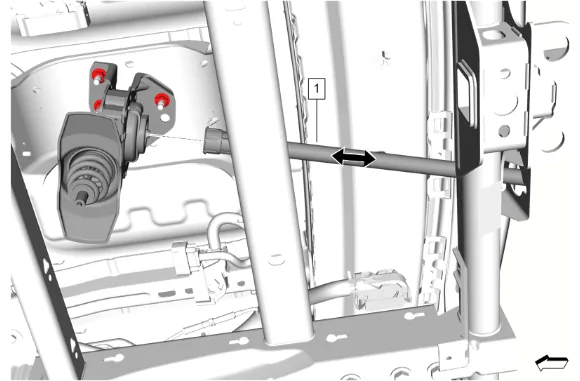

6. Spare Wheel Hoist Shaft Guide (1) » Remove

Spare Wheel Hoist Replacement — figure 4

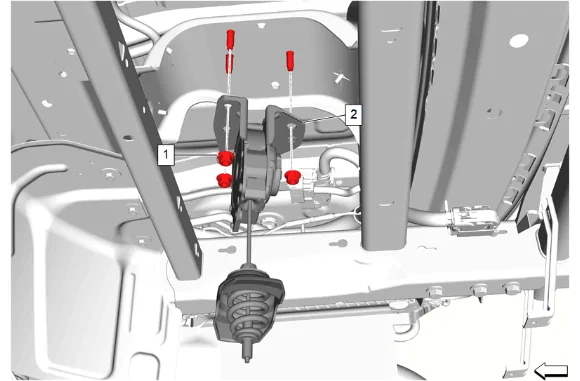

7. Spare Wheel Hoist Nut (1) » Remove [3x]

8. Spare Wheel Hoist (2) » Remove Installation Procedure

9. Spare Wheel Hoist (2) » Install

Caution

Refer to Fastener Caution.

2. Spare Wheel Hoist Nut (1) » Install and tighten [3x] — Fastener Specifications

3. Spare Wheel Hoist Shaft Guide (1) » Install

4. Push the spare wheel lock cylinder case (2) firmly into the rear bumper impact bar so that the spare wheel lock cylinder tabs (1) snap in place.

5. Spare Wheel » Install

6. Spare Wheel Hoist Lock Cylinder (1) » Install

7. Rear Bumper Fascia » Install — Rear Bumper Fascia Removal and Installation
