Rear Seat Inner Recliner Cable Replacement (60 Percent)

Single Use Fasteners and Components Tie Strap [4x] Removal Procedure

Rear Seat Inner Recliner Cable Replacement (60 Percent) — figure 1

1. Rear Seat Cushion Cover and Pad (1) » Remove — Rear Seat Cushion Cover and Pad Removal and Installation

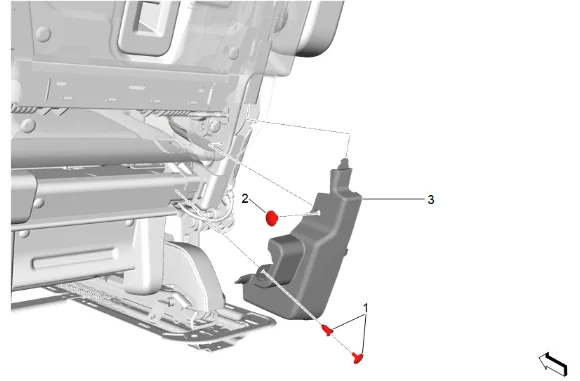

Rear Seat Inner Recliner Cable Replacement (60 Percent) — figure 2

2. Rear Seat Riser Finish Cover Retainer (1) » Remove
3. Rear Seat Back Cover Retainer (2) » Remove
4. Rear Seat Recliner Inner Finish Cover (3) » Remove

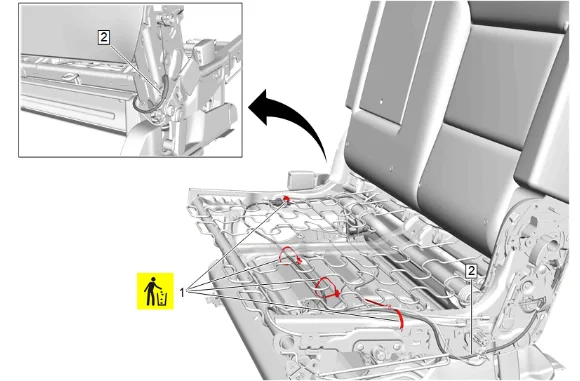

Rear Seat Inner Recliner Cable Replacement (60 Percent) — figure 3

Note

Note the location and routing of the seat cable to ensure proper installation. Quantity of retainers may vary based on option content.

5. Tie Strap (1) » Remove and DISCARD [4x]

6. Using a suitable tool, release the seat cable retaining features.

7. Release the cable ends from the seat frame.

8. Rear Seat Inner Recliner Cable (2) » Remove Installation Procedure

9. Rear Seat Inner Recliner Cable (2) » Install

10. Install the cable ends into the seat frame.

11. Secure the seat cable retaining features.

12. Tie Strap (1) » Install NEW [4x]

13. Following complete cable installation, push in the free length adjuster clip to set cable length.

14. Rear Seat Recliner Inner Finish Cover (3) » Install

15. Rear Seat Back Cover Retainer (2) » Install

16. Rear Seat Riser Finish Cover Retainer (1) » Install

17. Rear Seat Cushion Cover and Pad (1) » Install — Rear Seat Cushion Cover and Pad Removal and Installation
