Radiator Inlet Hose Replacement (LM2)

Removal Procedure

1. Drain the cooling system. Cooling System Draining and Filling

Radiator Inlet Hose Replacement (LM2) — figure 1

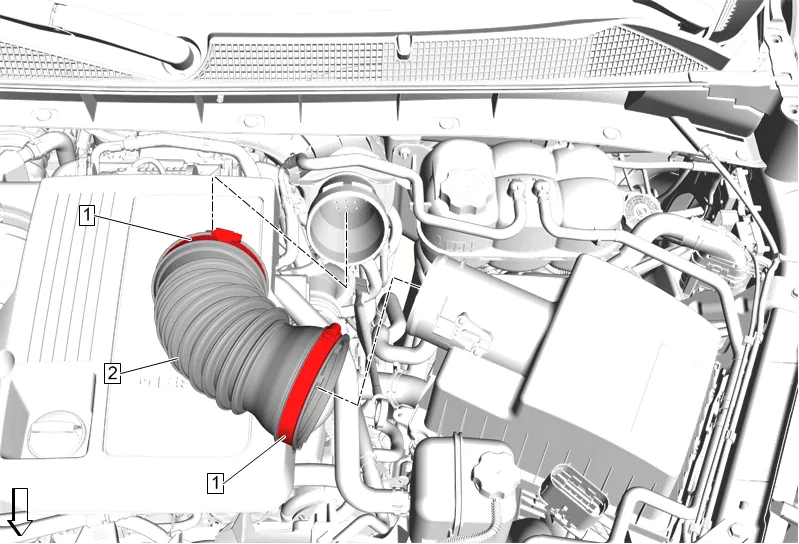

2. Air Cleaner Outlet Duct Clamp (1) » Loosen [2x]
3. Air Cleaner Outlet Front Duct (2) » Remove

Radiator Inlet Hose Replacement (LM2) — figure 2

4. Hood Latch Actuator Bolt (1) » Remove [2x]
5. Hood Secondary Latch Release Handle (2) » Remove

Radiator Inlet Hose Replacement (LM2) — figure 3

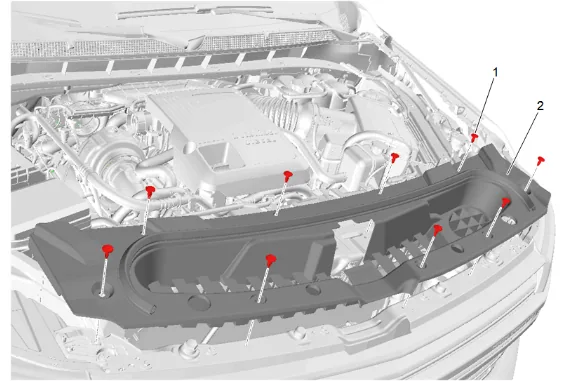

6. Intake Air Baffle Retainer (1) » Remove [9x]
7. Intake Air Splash Shield (2) » Remove

Radiator Inlet Hose Replacement (LM2) — figure 4

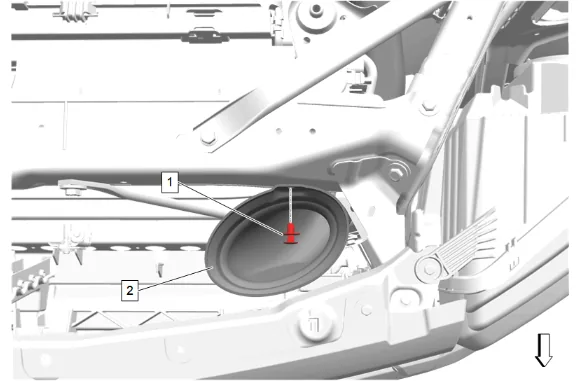

8. Intake Air Duct Retainer (1) » Remove
9. Intake Air Duct (2) » Reposition
10. Disconnect the mass airflow sensor electrical connector.

Radiator Inlet Hose Replacement (LM2) — figure 5

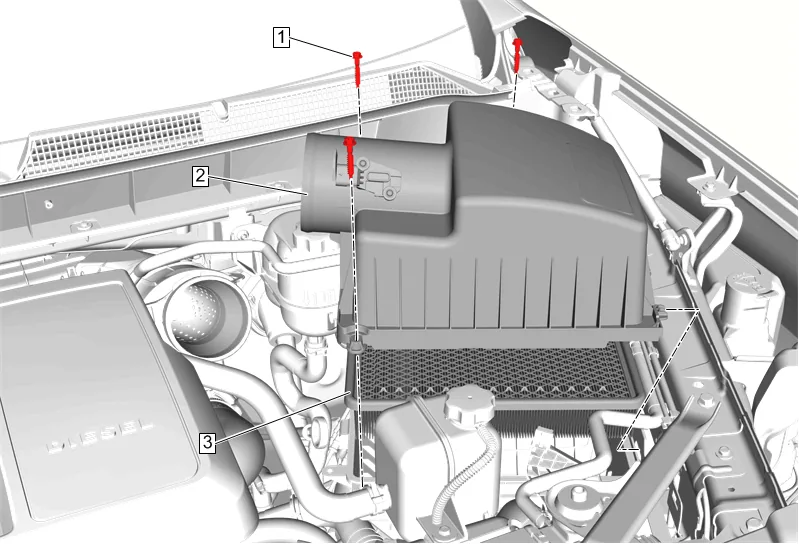

11. Air Cleaner Housing Cover Bolt (1) » Remove [3x]
12. Air Cleaner Upper Housing (2) » Remove
13. Remove all retainers from air cleaner lower housing.

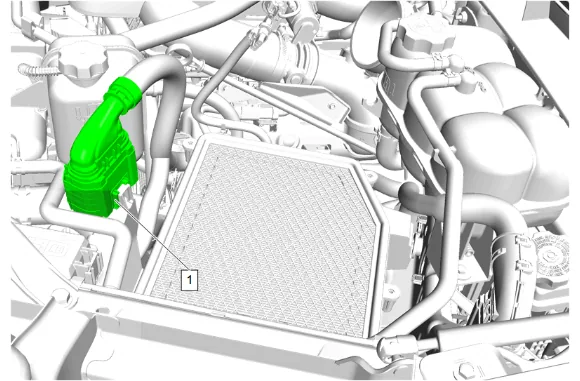

Radiator Inlet Hose Replacement (LM2) — figure 6

14. Electrical Connector (1) @ Air Cleaner Lower Housing » Remove

Radiator Inlet Hose Replacement (LM2) — figure 7

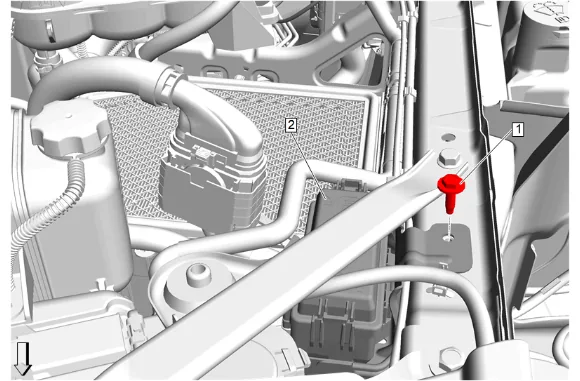

15. Engine Wiring Harness Fuse Block Bracket Bolt (1) » Remove
16. Accessory Wiring Junction Block (2) » Reposition

Radiator Inlet Hose Replacement (LM2) — figure 8

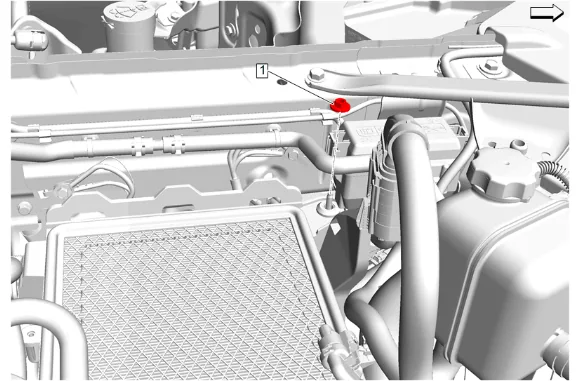

17. Air Cleaner Nut (1) » Remove

Radiator Inlet Hose Replacement (LM2) — figure 9

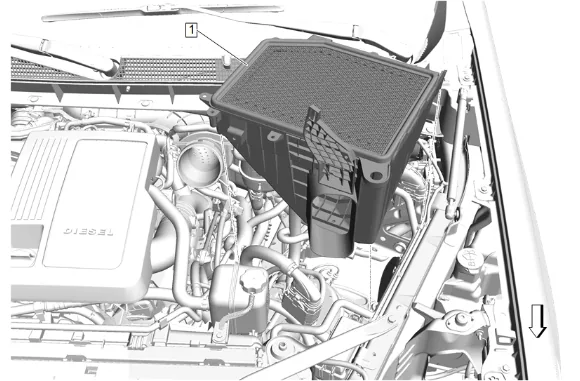

18. Air Cleaner Lower Housing (1) » Remove

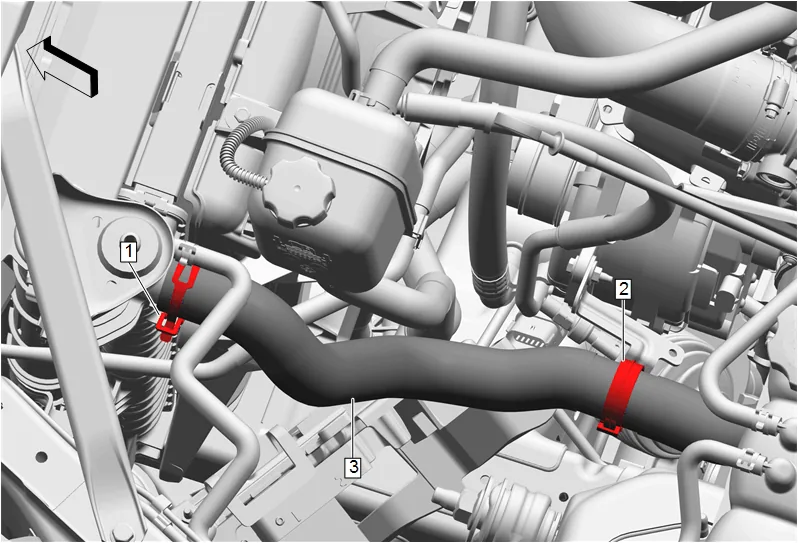

Radiator Inlet Hose Replacement (LM2) — figure 10

19. Radiator Inlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
20. Radiator Inlet Hose Clip (2) @ Radiator Inlet Hose Bracket » Remove
21. Radiator Inlet Hose (3) @ Radiator » Remove

Radiator Inlet Hose Replacement (LM2) — figure 11

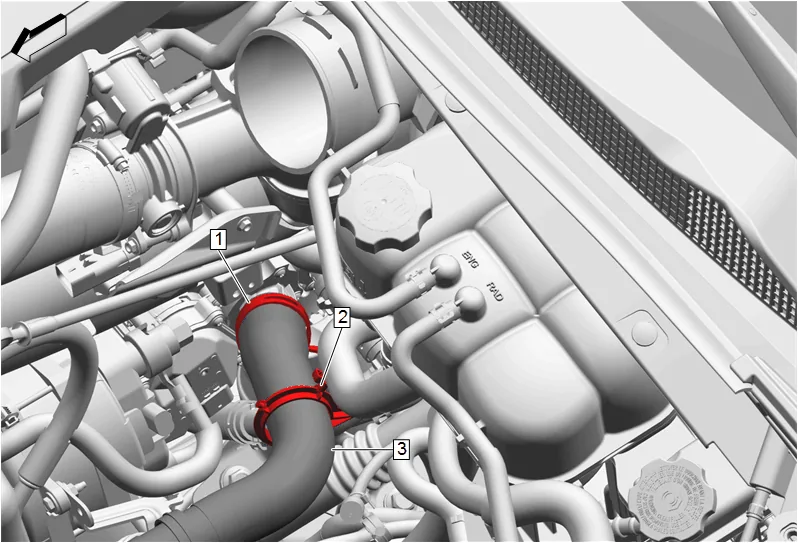

22. Radiator Inlet Hose Clamp (1) » Disengage — Hose Clamp Replacement Guidelines - Spring Type

23. Radiator Surge Tank Outlet Hose Strap (2) @ Radiator Inlet Hose (3) » Remove

24. Radiator Inlet Hose (3) @ Engine Coolant Flow Control Valve » Remove Installation Procedure

25. Radiator Inlet Hose (3) @ Engine Coolant Flow Control Valve » Install

26. Radiator Surge Tank Outlet Hose Strap (2) @ Radiator Inlet Hose (3) » Install

27. Radiator Inlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

28. Radiator Inlet Hose (3) @ Radiator » Install

29. Radiator Inlet Hose Clip (2) @ Radiator Inlet Hose Bracket » Install

30. Radiator Inlet Hose Clamp (1) » Engage — Hose Clamp Replacement Guidelines - Spring Type

31. Air Cleaner Lower Housing (1) » Install

Caution

Refer to Fastener Caution.

8. Air Cleaner Nut (1) » Install and tighten — Fastener Specifications

9. Accessory Wiring Junction Block (2) » Install

10. Engine Wiring Harness Fuse Block Bracket Bolt (1) » Install and tighten — Fastener Specifications

11. Electrical Connector (1) @ Air Cleaner Lower Housing » Install

12. Install all retainers to the air cleaner lower housing.

13. Air Cleaner Upper Housing (2) » Install

14. Air Cleaner Housing Cover Bolt (1) » Install and tighten [3x] — Fastener Specifications

15. Connect the mass airflow sensor electrical connector.

16. Intake Air Duct (2) » Install

17. Intake Air Duct Retainer (1) » Install

18. Intake Air Splash Shield (2) » Install

19. Intake Air Baffle Retainer (1) » Install [9x]

20. Hood Secondary Latch Release Handle (2) » Install

21. Hood Latch Actuator Bolt (1) » Install and tighten [2x] — Fastener Specifications

22. Air Cleaner Outlet Front Duct (2) » Install

23. Air Cleaner Outlet Duct Clamp (1) » Tighten [2x] — Fastener Specifications

24. Fill the cooling system to the proper level. Cooling System Draining and Filling

25. Start the engine and check for coolant leaks.
